MG SOLAR Aluminum Ground Mounting System Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
XIAMEN MEGAN SOLAR CO., LTD.
Address:
No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn
E-mail: info@mgsolar.cn
Tel: +86-592-6241055
Fax: +86-592-6263651
Aluminum Ground Mounting System Installation Manual
1.Before Installation

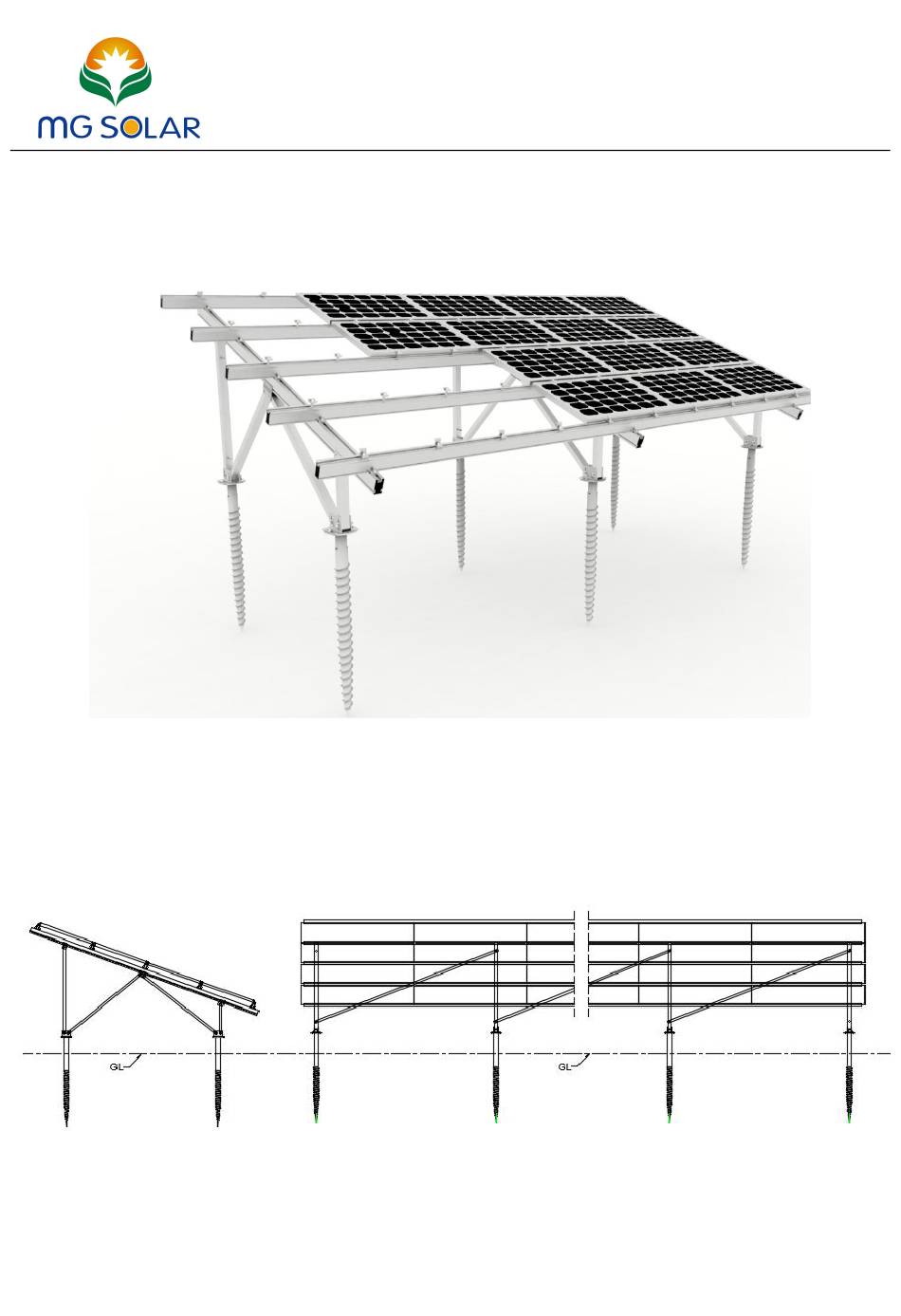

1.1.Engineering drawing
1 / 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aluminum Ground Mounting System and is the answer not in the manual?

Questions and answers

Summary of Contents for MG SOLAR Aluminum Ground Mounting System

  • Page 1 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 Aluminum Ground Mounting System Installation Manual 1.Before Installation 1.1.Engineering drawing 1 / 12...
  • Page 2 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 1.2Tools For Installation 8mm Allen key Drill Sleeve(M8~M12) Torque Wrench M8~M12 Socket Spanner(M8/M14) Rule Spirit level Rope Cordless drill 1.3 Component List...
  • Page 3 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 1.4 Appearance Main Beam Grounding Rail 01# Grounding Rail 02# H Connector Kit 1# Back Leg Back Support H Connector Kit 2# Bottom Base 01#...
  • Page 4 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651  Screw Pile Foundation On the left side picture is screw pile position side view, distance X we called S/N span. Spiral pile into the underground shall ensure that at least 1400 mm, flange height should be consisten On the right side picture is ground screw position Plan view, distance Y is we called E/W spa n.
  • Page 5 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 2.2 Installation Guide In generally, most of mounting part would be pre-assembled at our factory. So you just need to open it and fixed it with screw and bolt according to drawings.
  • Page 6 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 2.2.2 N Type Pre-assembled Mounting Parts Installation Front Leg Inclined Support Back Leg Spread it and confirm the location, then fix it with screw and bolt, please see below: Back Leg Inclined Support Front Leg...
  • Page 7 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 2.2.3 No Front Leg Type Pre-assembled Mounting Part Installation Back Leg Inclined Support Spread it and confirm the location, then fix it with screw and bolt, please see below: Back Support Inclined Support 7 / 12...
  • Page 8 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 2.3 Connect Pre-assembled mounting part with different foundations  Screw Pile Foundation:  Concrete Block Foundation 8 / 12...
  • Page 9 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 After building connection with foundations, you can get below result: a) Screw Pile Foundation b) Concrete Block Foundation 9 / 12...
  • Page 10 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 2.4 Grounding Rail Installation According to the drawing, put the rail on the right position of main beam and use grounding rail clamp to fix it in the main beam, please see below pictures: When the length of grounding rail is not enough, we can use grounding rail splice kit to connect them to get longer rail, please see below pictures:...

  • Page 11: Solar Panel Installation

    XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 2.6 Solar Panel Installation 2.6.1Using End Clamp to fix solar panel 2.6.2 Using Mid Clamp to fix solar panel 2.6.3 Grounding Clip Installation Put solar panel on the one Put solar panel on the other side...
  • Page 12 XIAMEN MEGAN SOLAR CO., LTD. Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China Web: www.mgsolar.cn E-mail: info@mgsolar.cn Tel: +86-592-6241055 Fax: +86-592-6263651 2.7 Grounding Lug Installation Finished. 12 / 12...
