USER MANUAL
Rev. 07/20
M115WH57TL
M115WH83TL
Model:

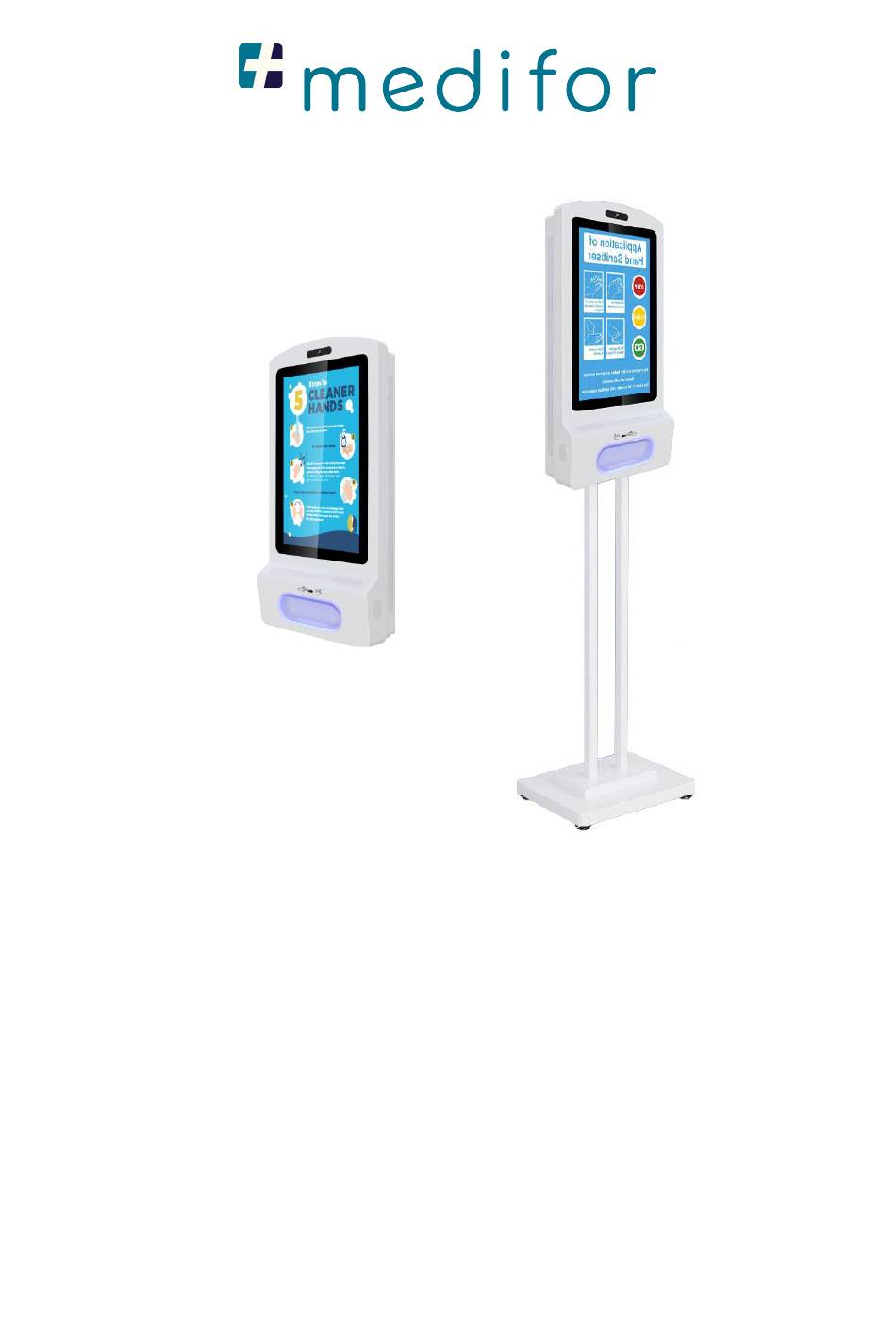

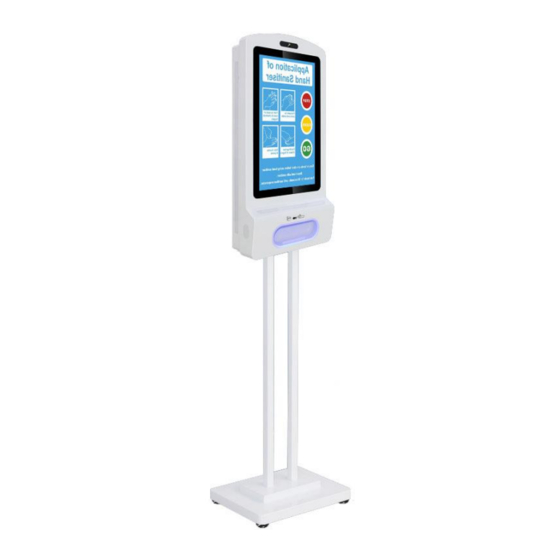

Description: Hand Sanitizing Station with 21.5" Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please
call our Customer Service Department at 1-888-632-3077.
1
Medifor
Advertisement
Table of Contents
Summary of Contents for Medifor M115WH57TL
- Page 1 USER MANUAL Rev. 07/20 M115WH57TL M115WH83TL Model: Description: Hand Sanitizing Station with 21.5” Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-888-632-3077.
-
Page 2: Table Of Contents
How to upload media files ......................16 Settings............................18 Edit picture ..........................18 Music ............................20 Factory Reset ..........................21 Choose System Language ......................21 Technical Specifications………………………………………………….…………………………………………………………22 Troubleshooting………………………….……………………………………………………………………………………………24 Cleaning and Maintenance………….………………….……..………………….……………………………….……………26 Names and Contents of Toxic and Hazardous Substances or Elements in the Product………….…..27 Medifor... -
Page 3: Features
◆ Combined with CMS Software. Import video, Television images, pictures, animation, text, documents, web pages, streaming media, database data into one wonderful section program, which also could be launched to terminals in different places through network, show the great graphics and real-time information to people at different places. Medifor... -
Page 4: Safety Warnings And Precautions
If coal gas or other flammable gas leaks, do not pull out the plug of the LCD Digital Signage or other electrical appliances; instead, turn off the gas valve immediately, and open the doors and windows quickly. Medifor... - Page 5 The unit is class-A product, which may cause radio interference in living environment. In this case, please take feasible measures, and use power plug as the disconnection device. Medifor...
-
Page 6: Assembly And Connection
The Manual may be slightly different from actual operation, and the latter is applicable. Assembly and Connection Packing List WALL MOUNT FLOORSTAND Name Name Power Cord Power Cord Keys Keys 6mm Allen Wrench 6mm Allen Wrench User Manual User Manual Warranty card, certification Warranty card, certification M4x30 screw Foot M8x25 screw Medifor... -
Page 7: Steps For Assembly
Lock the door with the key. 1.4. Hook the pre-assembled brackets on the back of the hand sanitizing unit onto the mounted wall plate and make sure it’s stable on the wall. Medifor... - Page 8 2.3. Unlock the unit with provided key and plug in the power cord and ethernet cable to the ports respectively. 2.4. Assemble the sanitizer unit and the stand with (6) M8 screws. Tighten screws using the enclosed Allen Wrench. Medifor...
- Page 9 2.6. Plug the power cable from the base into the outlet. ON/OFF Switch: Unlock the unit with the key and open the unit. Find the switch and turn it on. Medifor...
-
Page 10: Instructions On How To Use
1. Open the door on the back to reveal the hand sanitizer dispensing container inside the unit. 2. Remove the cap on top and carefully fill the same formulation into the container. Replace the cap and tighten it by turning clockwise. LED Indicator Light Supply (Green) Empty (Red) Medifor... - Page 11 Screw the Liquid Dosing Nozzle clockwise to secure it onto the dispenser. NOTE: After replacing the nozzle, test the dispenser to make sure it works properly. Adjust the dosing volume of the dispenser: Turn the nob to the desired dispensing dosage. See the manufacturer suggested dosage below. Medifor...
-
Page 12: Remote Control
Rightwards Arrow. Move selection to the right or move the cursor right. Confirm button, select the use menu or setup menu, press this button to confirm Turn volume up Turn volume down. Return to previous page or a level up in an app. NOTE: Only buttons shown above have functions. Medifor... -
Page 13: Description Of Basic Operations
Connect a mouse with the digital panel through USB port, then follow the steps below: click “Setting” At the setting menu, click “Display” At the Display setting menu, click “Wallpaper”, then choose a folder. Then select an image you would like to set up as background. Confirm the selection by clicking “Set wallpaper”. Medifor... -
Page 14: File Manager
3. Choose storage in the “Explorer” menu to read the files from different devices. Fig. 1 Fig. 2 Fig.3 Local Settings 1. Click the “Settings” icon (Fig. 1) and enter “Settings” menu (Fig. 2); 2. Click “Wi-Fi” and choose options then set up the WIFI connection. Fig. 1 Fig. 2 Medifor... -
Page 15: Status Of Menu Bar
Printing Accessibility About device Status of Menu Bar 1. Click the setting 2. At the setting menu click the display menu 3. At the display setting menu unselect the display navigation check box Fig. 1 Fig. 2 Fig. 3 Medifor... -
Page 16: Diviex App Introduction
Open "MediaFolder", create 3 subfolders, and change their names to "Images", "Videos", "Music". Copy the media files to be displayed in the slideshow and paste to the appropriate new folder "Images" or "Videos". Copy and paste music files to "Music" folder. Supported Media Format: Image JPG/JPEG/BMP/PNG Video MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/flv Music AAC/MP3/AMR/OGG/PCM Medifor... - Page 17 Step 3: Plug the USB drive into the device and click the DiViEx APP. Step 4: When the screen shows “Copy finished” after “Usb Disk:”, the media files are ready to be displayed. Medifor...
-
Page 18: Settings
NEGATIVE, PSTERIZE, ROTATE, SATURATE, SEPIA, SHARPEN, TEMPERATURE, TINT, VIGNETTE. ⚫ Reset Click “Reset” to remove all the editing you applied to the image. ⚫ Save “ ” Click the icon to save the edited image as a new image. Medifor... - Page 19 ⚫ Image deletion Click " " to delete unwanted pictures Medifor...
-
Page 20: Music
Add music to “Playing List Music” (Background music) from “Playlist Library”. Click “right arrow”, music title will show in the “Playlist Music” on the right. ⚫ To remove background music from the playlist, click the left arrow in the playlist Medifor... -
Page 21: Factory Reset
Fig. 1 Fig. 2 Fig. 3 Choose System Language: 1. Get into Settings, then click “Language & input” (Fig. 1) 2. Click “Language”, then you can choose the system language accordingly (Fig. 2) Fig. 1 Fig. 2 Fig. 3 Medifor... -
Page 22: Technical Specifications
Maximum operating time (hrs/day) 18 hours Operating system Android 7.1 Processor Quad-core ARM Cortex-A17, 1.8GHz Built-in memory Functions Decoding resolution 1080P FHD compatible Playback mode H.264, MKV, WMV9, MPEG1/2/4, HD DIVX, Supported Video Files XDIV, RM/RMVB Supported Photo Files BMP/PNG/GIF/JPEG Medifor... - Page 23 Schedule power on/off System update App installation Support download and installation Ethernet (RJ45) HDMI I/O interfaces Headset USB2.0 Machine Weight 26kg Carton Weight 32kg Machine Size 799.4x171.2x384.5mm Structure Carton Size 940x320x620mm Shell material Metal Shell color Silver/black Language English Medifor...
-
Page 24: Troubleshooting
Stand within 1 foot of the front of the unit and point the remote directly at the sensor (green dot) ❖ If all of the above have been checked and the issue is not resolved, contact a customer service representative. Medifor... - Page 25 ⚫ Issues using ➢ Mistake in storing content to SlideShow App steps Explorer > Select USB > pre-installed apps NAND Flash (shown on pg. 11) Select Multi > highlight files > Editor > Select Medifor...
-
Page 26: Cleaning And Maintenance
3. Don't place the product under direct sunlight which may shorten the service life of the screen. 4. Clean screen and product by using a glass cleaner. 5. If the product will not be used for a long time, pull out the power cord to prevent the internal short circuit or other potential dangers. Medifor... -
Page 27: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
Electrical and Electronic Products Recycling and Disposal Regulations or send it to qualified local manufacture for recycling. This Manual is for reference only and is subject to change without prior notice. Visit medifor.com for the latest product information and User Manual updates. Medifor...
