Kiwitech PowerPac VP POWD Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
PowerPac
(VP POWD or VP POWT)

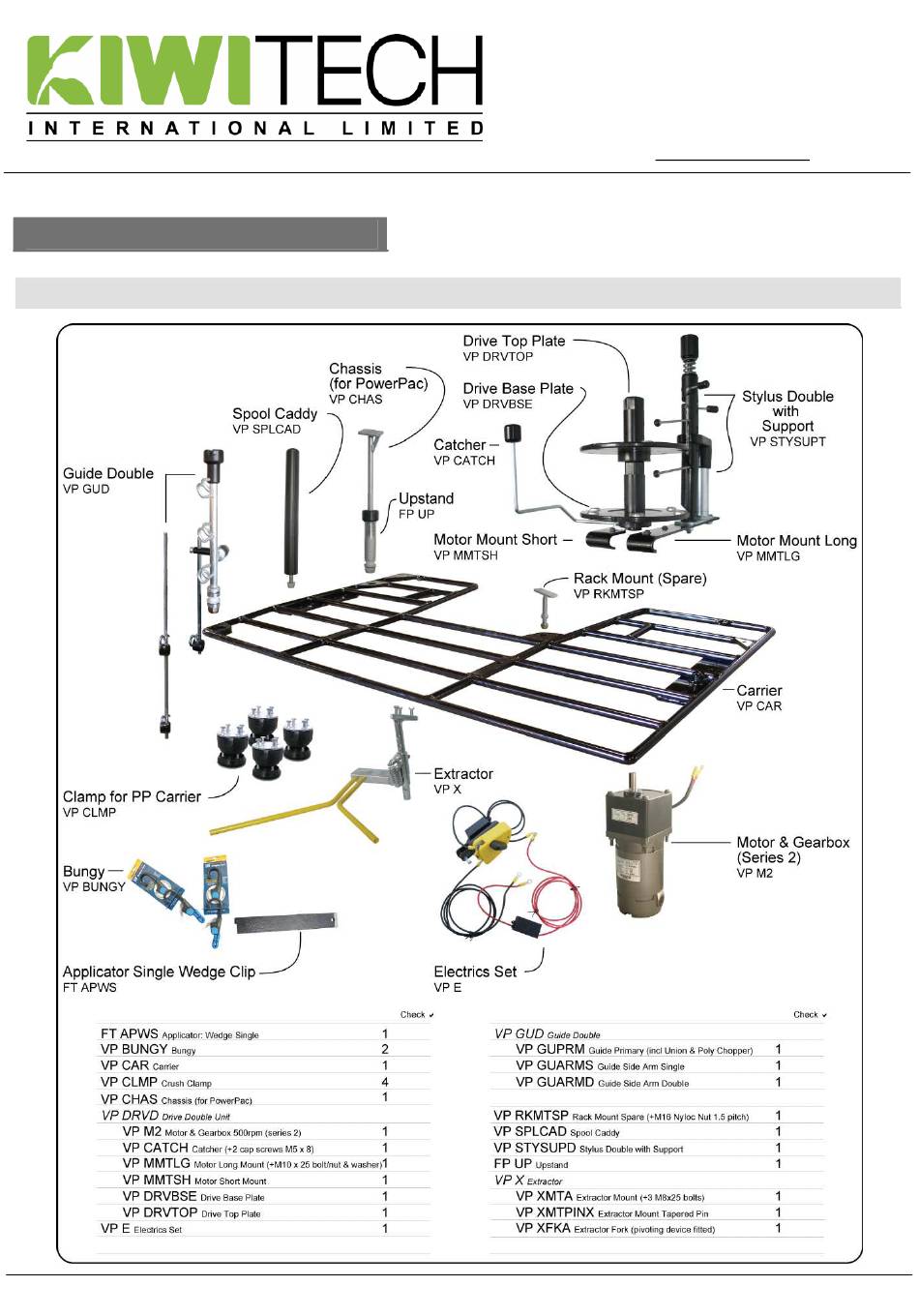

Parts Check: PowerPac Double
www.kiwitech.co.nz
Postal: P.O. Box 19,
Bulls, New Zealand. 4863
Freephone NZ: 0800 800 787
Freephone AU: 1800 216 397
Phone: +64 (6) 322 1036
Fax: +64 (6) 322 1116
Email: sales@kiwitech.co.nz
INSTRUCTIONS
Page 1 of 14

Advertisement

loading
Need help?

Need help?

Do you have a question about the PowerPac VP POWD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kiwitech PowerPac VP POWD

  • Page 1 Postal: P.O. Box 19, Bulls, New Zealand. 4863 Freephone NZ: 0800 800 787 Freephone AU: 1800 216 397 Phone: +64 (6) 322 1036 Fax: +64 (6) 322 1116 Email: sales@kiwitech.co.nz INSTRUCTIONS PowerPac (VP POWD or VP POWT) Parts Check: PowerPac Double www.kiwitech.co.nz...
  • Page 2 Parts Check: PowerPac Triple www.kiwitech.co.nz Page 2 of 14...

  • Page 3: First Time Users

    Example Layout Safety Kiwitech have tried to eliminate all the sharp edges of the PowerPac to lessen injury should operators fall forward on the quad. Always use Racks with a Latch and ensure the Latch is engaged when not fencing.
  • Page 4 (as pictured below). At this point it would be a good time to test your Carrier positioning (see PowerPac Carrier Positioning Test below). Finish by screwing in all remaining bolts loosely, then tighten all. www.kiwitech.co.nz Page 4 of 14...
  • Page 5 Mount’s 10mm bolt through the hole provided in the ExoSkeleton plate. Sometimes snapping on the Motor Mounts can be a struggle, if so, use force (e.g. use a block of wood to hit the clips into place). www.kiwitech.co.nz Page 5 of 14...
  • Page 6 7. Turn the Stylus to “locked” position. Rotate the Base Drive Plate until the “stop” either contacts or is in alignment with the Stylus Lock (see below). Adjust the Stylus Lock length in or out of the Stylus until the end is just rubbing on the Base Drive Plate rim. www.kiwitech.co.nz Page 6 of 14...
  • Page 7 3) ‘Locked’ position: One further turn of the Plastic Middle anticlockwise. The lock MUST be engaged when running out more than 1 polywire as it stops Spools from overrunning - creating a birds nest! www.kiwitech.co.nz Page 7 of 14...
  • Page 8 The Stylus Support locks the Stylus in place for each mode of operation and keeps the Stylus vertical. Without it the pressures involved in the winding operation would push the Stylus back, off vertical, lessening the amount of Stylus Roller Arm down force on the Spools resulting in a weaker winding system. www.kiwitech.co.nz Page 8 of 14...
  • Page 9 Zealand (e.g. Brush Caps, Carbon Brushes and Brush Holders). Alternatively, for New Zealand customers only, Kiwitech will service PowerPac motors and provide a ‘loan’ motor that can be used in the interim. Labour and only the parts required are charged.
  • Page 10 6. Turn on the yellow PowerPac Motor Switch and check the Motor Gearbox shaft is turning anticlockwise. All leads are made from 44 amp cable. Do not ‘doctor in’ cables with a lesser specification (i.e. only NOTE: replace with an equivalent or greater specification cable). www.kiwitech.co.nz Page 10 of 14...
  • Page 11 Attach the Guide Side Arm of choice and adjust so the pigtail unit/s is/are at least 100mm below the Single Wedge Clip/s of the Kiwitech Tread-ins in use. Make sure the Side Arm is screwed on tight, once set to the right height, otherwise it will get lost in transit.
  • Page 12 If the fence is straight and was erected using anyone of the Kiwitech Pac tools all the Wedge Clips should be facing the right way when the time comes to dismantle the fence.
  • Page 13 If the yellow plastic Fork covering is badly damaged, replace it. The yellow plastic is 1/2” N12 “Ledalon” Nylon Tube (Kiwitech can supply this tubing). Heat the tube in hot water and soap the Extractor Fork arms before pushing the tube on.

  • Page 14: Maintenance Summary

    These operators should consider investing in a Kiwitech Exoskeleton (VE KIT) or upgrading their Fender to a Fender for PowerPac use (VF KITPP). Always pack Tread-ins in the Rack evenly on both sides to avoid Rack distortion (this is more likely on hot days as the Rack plastic becomes more ductile).
