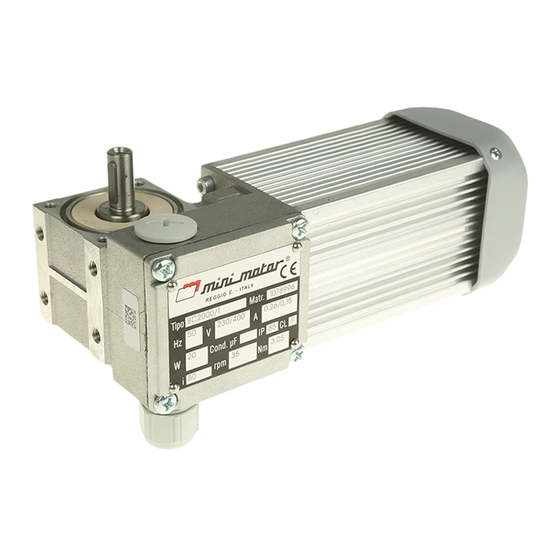

Use and Maintenance
Manual
For motors and gear motors of the following
series: AM-AC ACC PA PAC BC2000 BC2000-
24MP MC MCC PC PCC XC BS MCBS ACF PAF
MCF PCF XCF MCFBS AMSS PCFSS XCFSS
SXCFSS AMSSE
T
C
ABLE OF
ONTENTS
1.
General Safety Information ...................................................... 1
1.1
Product Identification ....................................................... 2
1.2
Movement/Handling and Storage .................................... 2
1.3
2
Preliminary operations ............................................................. 3
2.1
Pre-Installation Product Inspection .................................. 3
2.2
Electrical Connection ........................................................ 3
2.3
2.4
Products ........................................................................................ 5
2.5
Intended Uses and Limitations ......................................... 5
2.6
General Warranty Conditions ........................................... 6
3
Installation and Periodic Inspections ........................................ 6
3.1
Brake Inspection and Regulation ...................................... 6
4
Troubleshooting ........................................................................ 7
Use and Maintenance Manual Rev5 - of 24/03/2020
0
