Summary of Contents for Sunmeditec WISE

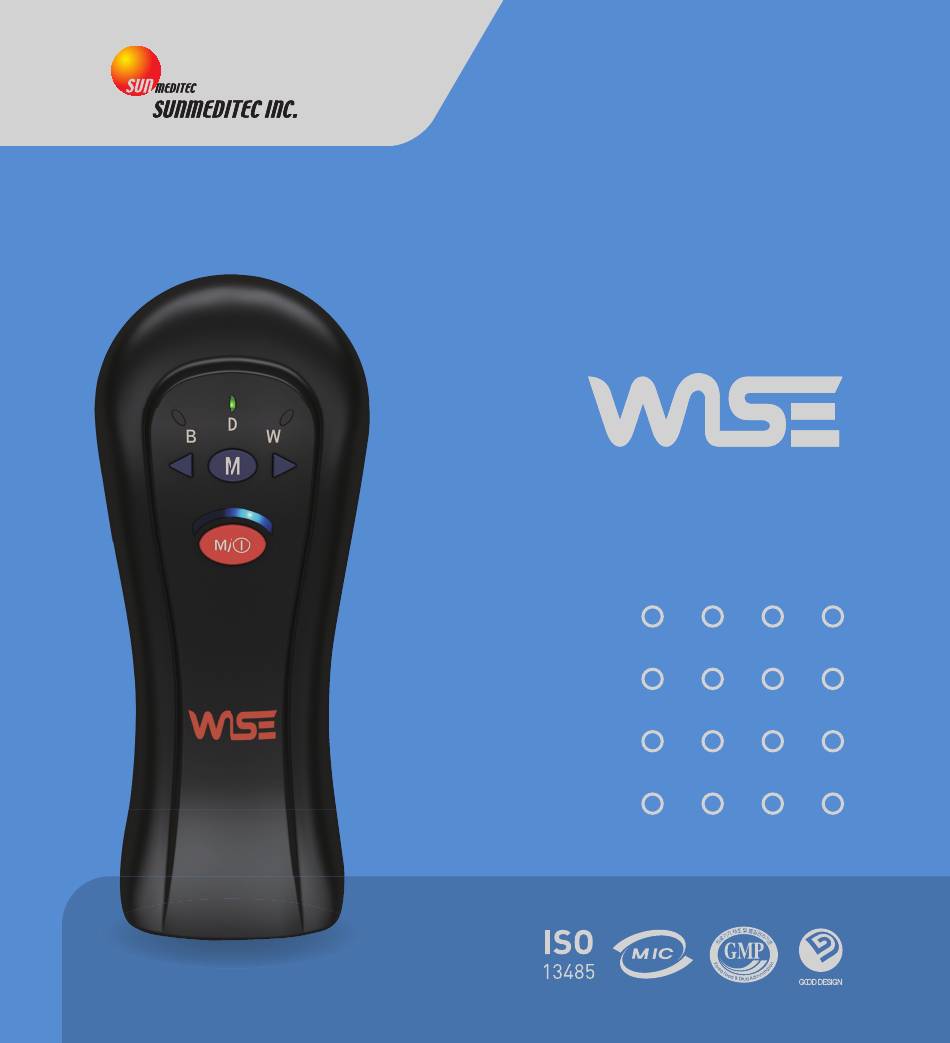

- Page 1 Ver. 2.0 2020.04 WIRELESS DIGITAL STETHOSCOPE User’s Manual...
- Page 2 Index. Sunmeditec Co., Ltd, who thinks of only health and happiness for its customers, will approach customers with the best products and rapid After-Sales Service. Products and features Preparation before use · Preparation before use · Warnings for product use ·...
- Page 3 Index. VPM3000W main screen description 11-12 VPM3000W result screen description How to record stethoscope sound · Device Connection · Record dialogue function window How to see VPM3000W pulse and spectrogram · Description for 『 Figure7_Spectogram, Enlarged Pulse, Whole Pulse Window 』 ·...
- Page 4 User’s Manual Product and Features This product is Medical device which is registered KFDA (No. 11-716). 『 』 Our Wireless Digital Stethoscope makes it possible to analyze heart, lungs or intestines sounds from a body and make a diagnosis through these data. This stethoscope makes it possible to select 3 sound measurement modes (Bell, Diaphragm, Wide) depending on the bandwidth.
-
Page 5: Preparation Before Use
Preparation before Use Preparation before use · Make sure to stabilize the person and be measured in correct status before use. · Check if the ear phones (or speakers) connection works well. · Check if the volume is suitable for using the stethoscope. ·... - Page 6 User’s Manual Product Name and its Functions Stethoscope Power Button · Power ON/OFF button Power & BT LED Display · Stethoscope & BT status display Mode Display LED · Bell, Diaphragm, Wide mode selection Mode Select Button · Bell, Diaphragm, Wide mode selection Volume Button ·...
-
Page 7: Volume Control
How to Use Stethoscope Power ON/OFF · When you push the " " button one time, a green light is displayed on LED Display, and at the same time, the power is turned on. · If you had the " "... - Page 8 User’s Manual How to use it with a computer Installation for VPM3000W Recommended installation environment for VPM3000W · CPU: over 1.5GHz · OS: Windows 7 or higher · Memory: over 256MB · Hard Disk: over 80GB · Graphic Card: over 1280x960(Notebook over 1024*768), 24 bits for color VPM3000W Installation ·...
- Page 9 · For window 10, a driver is automatically provided to start the connection. (For window 7, install the ‘USB Dongle driver’ in Sunmeditec USB memory.) · When the driver installation is complete, ‘Settings’ → ’Device’ → Bluetooth or any device selection and execute...
- Page 10 User’s Manual VPM3000W Intro Screen Description Input Info Enter new patients and existing patients to retrieve information Main Screen Go to the next Screen (Main Screen) Minimize Button VPM3000W program screen to m1nim1ze. Exit Button VPM3000W program exit. Figure 2 - Intro Screen VPM3000W Input Info.
- Page 11 VPM 3000W Main Screen Description Figure 4 - Main Screen Menu It consists of File(New file, Open, Export, Import, Patients data, Print, Exit), Signal Edit(Whole Pulse Enlargement, Partial Pulse Enlargement, Selected Section Copy, Selected Section Cut, Paste, Paste it at the end, Testing Print), Device selection(Output Device Connection) and Help(Help, Program info).
- Page 12 User’s Manual Figure 4 - Main Screen Play It is used to play(start) stethoscope sounds. It is used to cut in the Signal Edit. Stop Paste It is used to stop replay. It is used to paste in the Signal Edit. Zoom In Save It is used to expand for stethoscope sounds.
- Page 13 VPM3000W Result Screen Description Figure 5 - Result Screen Menu Home It consists of File(New file, Open, Export, Import, Patients data, Move to the Main Screen. Print, Exit) and Help(Help, Program info). Save 'I' Spectrogram Window It saves recorded stethoscope sounds in a file. 'I' displays spectrogram (frequency range) for a selected section.
- Page 14 · For window 10, a driver is automatically provided to start the connection. (For window 7, install the ‘USB Dongle driver’ in Sunmeditec USB memory.) · When the driver installation is complete, ‘Settings’ → ’Device’ → Bluetooth or any device selection and execute →...
- Page 15 Figure 6 - Record Dialogue Window Record dialogue function window Monitoring waveform It is used to monitor for heart sound and lung sound. Monitoring & Recording states Green color: monitoring, red color : recording LCR(Level Crossing Rate) LCR is displayed depending on patients disease. Time The record or monitor time is shown currently.
- Page 16 User’s Manual How to See VPM3000W Pulse and Spectrogram Figure 7 - Spectrogram, Enlarged Pulse, Whole Pulse Window Description for 『 Figure7- Spectrogram, Enlarged Pulse, Whole Pulse Window 』 It displays the frequency bandwidth vertically from O to 2000 Hz. It displays the size of signal as dB line color.
- Page 17 Pulse enlargement, reduction If you put your mouse on the whole pulse window while the data are displayed in the whole pulse window of VPM3000W and press the left button of the mouse, and drag the mouse up to a section you want to see, and adjust the mouse wheel while you press "Ctrl ", the dragged section is enlarged or reduced.
- Page 18 User’s Manual How to Manage Data You can create separate directory using Menu, File → Export where you can export patient data. ("tsa" File includ e patient's information, whole pulse and sound in the VPM3000W program. On the other hand, wave file could be heard the sound using general sound system.) Figure 10 - Pop Up Window For Export Data Export to "tsa"...
-
Page 19: Data Import
Data Import You can create separate directory using Menu, file → import where you can import patient data. Figure 11 - Import Pop Up Window Data import · Select the folder having data to be imported. If you select the folder, the data in list are displayed. - Page 20 USB dongle from the USB port and wait for 10 seconds and reconnect it. (If ''The device is not found" appears again, make a phone call to After-Sales Service center of Sunmeditec (+82-63-2222-085). Or send me the trouble message by email(master@sunmeditec.com).
- Page 21 1 hour and 30 minutes Accessories Stethoscope LIFE W10 Earphone 1.2m, 104dB/mW USB Extended cable USB 5p cable Address : Sunmeditec Co., Ltd. Manufactory, 3rd floor, 29 Songchenon-ro, Deokjin-gu, Jeonju-si, Jeollabuk-do, 54839,KOREA +82-63-2222-085 +82-63-2222-086 E-mail : master@sunmeditec.com Home page : http : //www.sunmeditec.com...
- Page 22 User’s Manual Product Specification & Warranty Company Name Sunmeditec co., Ltd. Product Name Wireless Digital Stethoscope Model Name LIFE W10 Manufacturer Sunmeditec co., Ltd. Origin Korea Dimensions 144 x 63 x 72.9mm Operation Voltage DC 3.7V Power Consumption 107mW Product Name...
