Slugbuster
Technical Information –
Coin Installation
O
Channel
Channel
2
1
O
Coin Clamps
Do not tamper with screws or
nuts covered with blue sealer.
These are factory-set adjustments
and tampering with them
voids your warranty.
* Maximum token size for use in the United States is 1.125"
* Not all coins are compatible with Slugbuster III.
Please contact us for details at 800-752-0762
Hook-up and Wiring
Single or Dual
Coin/Token
Please contact us with any questions
Parker Engineering & Manufacturing
www.slugbuster.com
Phone:
616-784-6500 or 800-752-0762
®
III

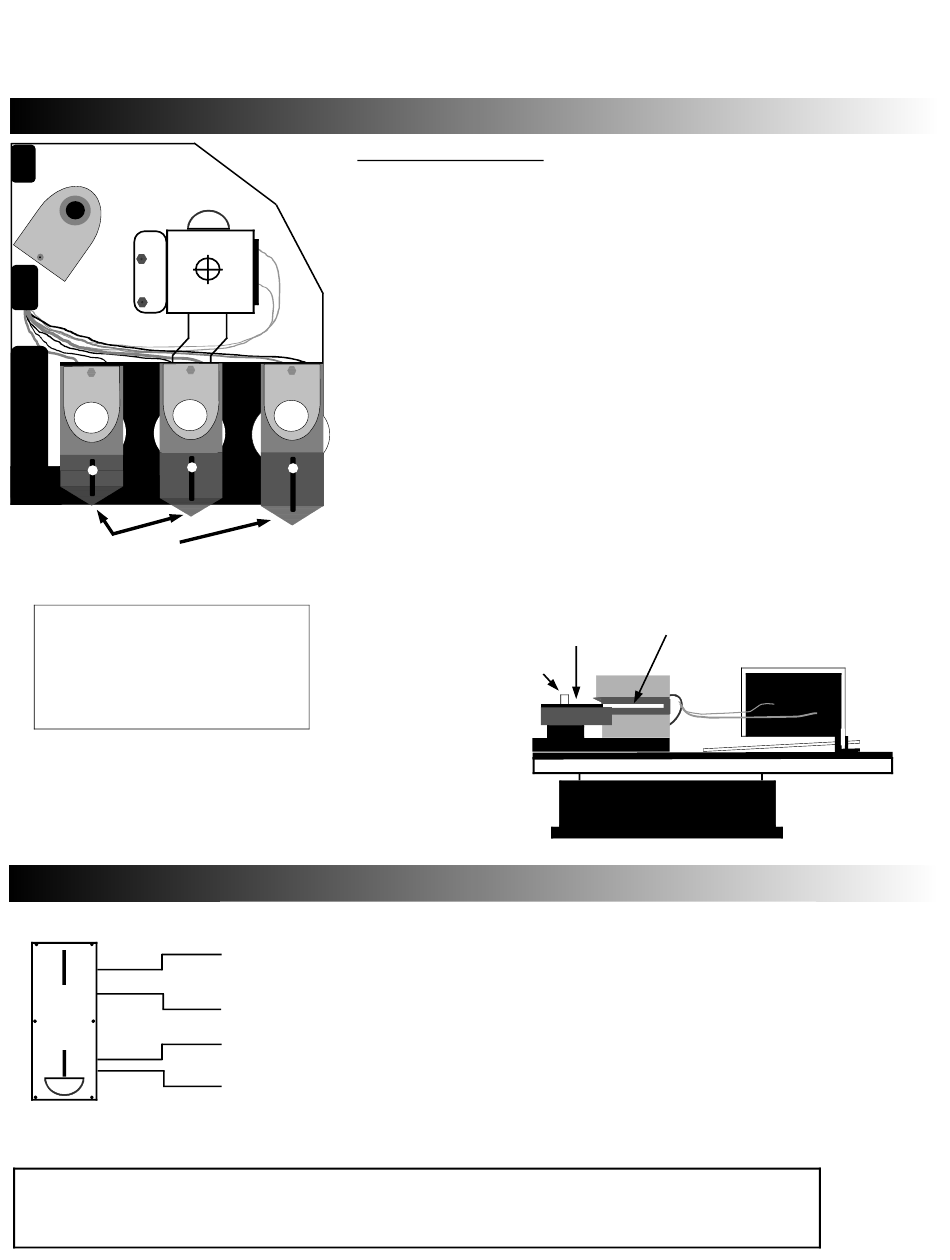

Coin Installation
To Install Sample Coins:
1. Place the unit with sample coin holders facing up.
2. Loosen the three thumb screws that secure the coin clamps.
Note: The solid-state technology of Slugbuster III requires sample coins
to function properly, specifically quarter and dollar coins. You must
insert a different sample coin in each of the three channels, whether
you accept them or not.
3. Insert 3 sample coins from the rear, right side of the unit. Use each
consecutive coin to push the next coin over, until the first coin is in the
left coin holder.
Channel
3
4. Line up each coin with the coin clamp and firmly push the clamps up into
the coils to seat the coins in proper position.
5. Recommended installation of sample coins:
Channel 1 – Quarter
Your Slugbuster is now ready to install and program.
Color-coded power cords make hook-up easy
Blue Wire
: 8-volt DC out-going pulse for timer coin switch; provides direct hook-up
for most timers (please call for compatibility details)
Yellow Wire
: "Hot" 24-volt AC supply to Slugbuster
Black Wire
: Common/ground 24-volt AC supply to Slugbuster
Purple Wire
: 24-volt AC out-going pulse for optional coin counter
Hook-up and Wiring
Channel 2 – Token
Coin Clamp
Thumb Screw
Right Side View
11 North Park Street NE, Grand Rapids MI 49544
Email: info@slugbuster.com
Fax:
616-784-6501
Channel 3 – Dollar coin
Insert Coins
Here
Page 1 of 2
Advertisement
Table of Contents
Summary of Contents for Slugbuster III
- Page 1 1. Place the unit with sample coin holders facing up. 2. Loosen the three thumb screws that secure the coin clamps. Note: The solid-state technology of Slugbuster III requires sample coins to function properly, specifically quarter and dollar coins. You must insert a different sample coin in each of the three channels, whether you accept them or not.
- Page 2 DO NOT use the sensitivity adjustment to turn a channel off. Sensitivity potentiometers should only be adjusted as a last resort for acceptance problems. Slugbuster must have sample coins installed in all three Channels, whether or not they are to be accepted. Do not use the same sample coin in more than one Channel.
