Summary of Contents for SensThys SensArray Enterprise

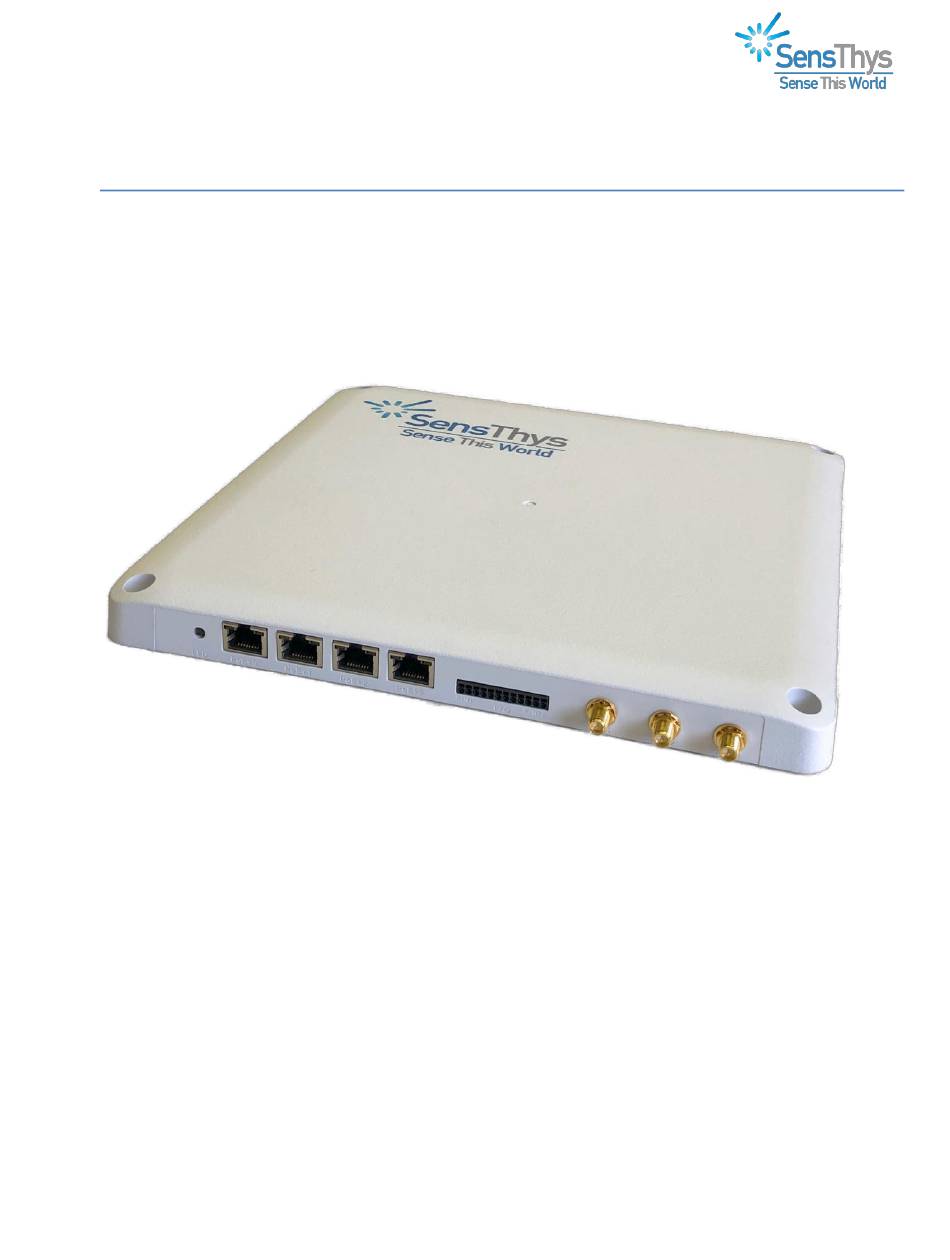

- Page 1 Enterprise/Pro Update Procedure Specifications Subject to Change March 2021 DCN-ST-0009-C...
-
Page 2: Legal Notices
Third party software is copyrighted and licensed from Licensors. SensThys, SensArray and other graphics, logos, and service names used in this document are trademarks of SensThys in the U.S. and other countries. All other trademarks are the property of their respective owners. -
Page 3: Revision History
Revision History Version Author Date Changes J. Major Mar 2021 Initial Document Specifications Subject to Change March 2021 DCN-ST-0009-C... -
Page 4: Table Of Contents
Table of Contents LEGAL NOTICES ........................2 REVISION HISTORY ....................... 3 TABLE OF CONTENTS ......................4 CHAPTER 1 INTRODUCTION ..................... 5 CHAPTER 2 INSTALL ......................5 Step 1 Launch the RFID Console............................. 5 Step 2 Update Tab ..................................6 Step 3 Update the Reader ................................ -
Page 5: Chapter 1 Introduction
Install Step 1 Launch the RFID Console Launch the SensThys RFID Console, which can be found at SensThys.com. You can then easily find the IP Address. Figure 1 The home screen of the RFID Console. First, select the reader you are going to work upon. Once you selected it, you should note some information. -
Page 6: Step 2 Update Tab
Step 2 Update Tab Figure 2 Select the Update tab. Please select the Update tab, which will bring you to this screen. Specifications Subject to Change March 2021 DCN-ST-0009-C... -
Page 7: Step 3 Update The Reader
After you hit Browse, you will need to navigate to see the folder that contains the update files. SensThys will provide you with these files, but you obviously have the choice of where you would like the folder stored within your system. - Page 8 Figure 4 Selecting the folder. Open the folder. The system is set to ONLY look for .cfg files, so once you open up the folder, you will see this- Specifications Subject to Change March 2021 DCN-ST-0009-C...
- Page 9 Figure 5 Selecting the .cfg file for the update. Select the .cfg file so that it appears in the File name box, then hit Open. This will take you back to the window in the RFID Console, and you will see that the location of the file has now populated the window.
- Page 10 Figure 6 The .cfg file is confirmed. Hitting "OK" launches the update process. Specifications Subject to Change March 2021 DCN-ST-0009-C...
- Page 11 The update process begins and looks like this…. Figure 7 The update process has started. The entire process takes about 2 minutes. When finished, the screen will look like this… Specifications Subject to Change March 2021 DCN-ST-0009-C...
- Page 12 Figure 8 The update process is complete. Specifications Subject to Change March 2021 DCN-ST-0009-C...
- Page 13 Next, let’s confirm that all is good. Please select Sensor. This screen appears, note that the Build number has not been revised. Click on the reader, and then note that the Build number has been updated. Figure 9 The reader build number shows the update process is complete. Specifications Subject to Change March 2021 DCN-ST-0009-C...
