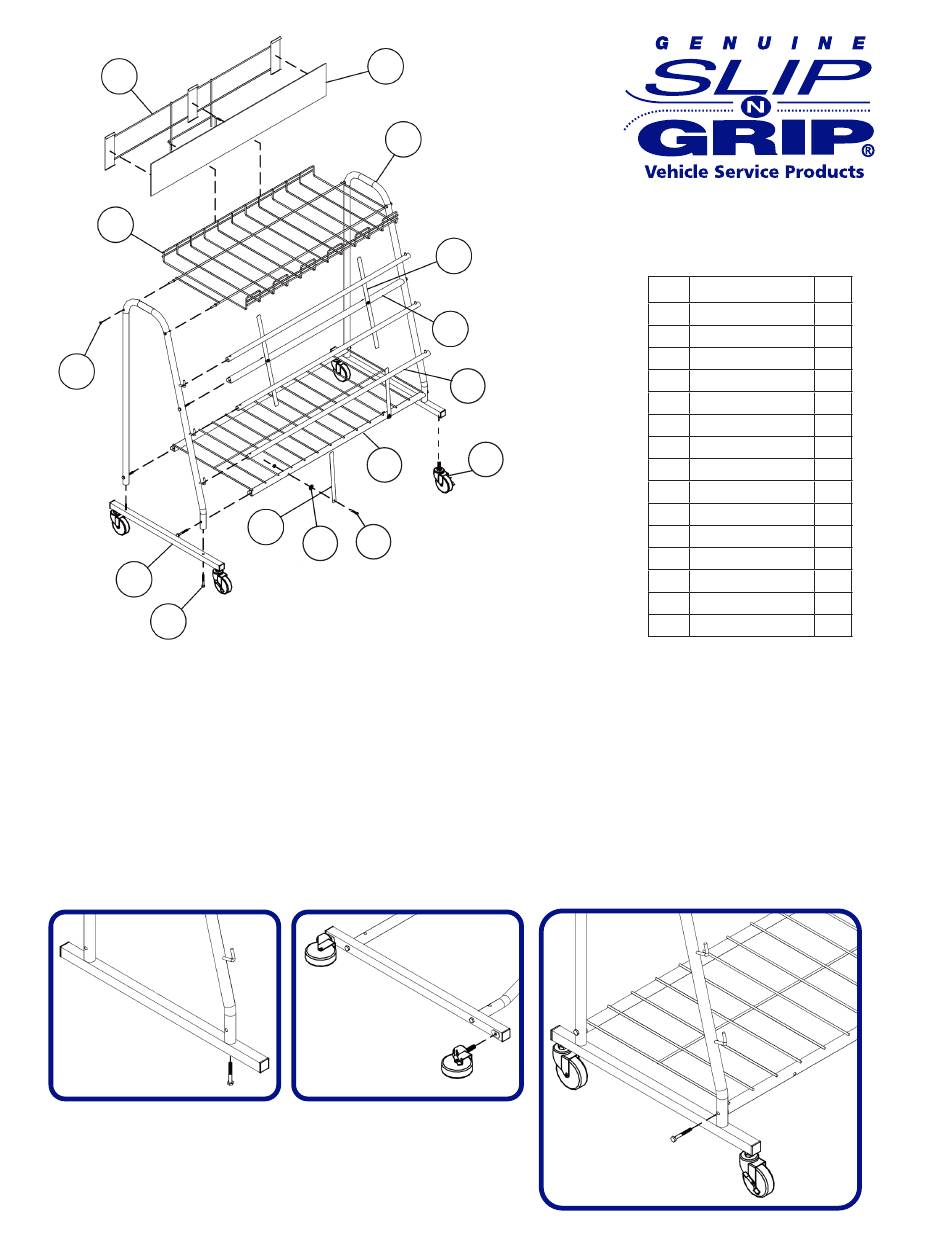

Assembly Instructions
1. Carefully remove all components from the box.
2. Locate SIDE FRAME (Item A) and LEG (Item B). Secure LEG and SIDE FRAME using (2) 2" SCREWS (Item L)
as shown in FIG. 1. NOTE: Make sure longer leg section faces forward toward wire hooks as shown.
3. Locate CASTERS (Item K) and install to LEG (Item B) as shown in FIG. 2.
4. Repeat step 2 and 3 to assemble opposite side frame.
5. Locate BOTTOM SHELF (Item C) and secure to side frame using (2) 2" SCREWS (Item L) as shown in FIG. 3.
NOTE: Make sure holes in bottom shelf face to the front as shown.
FIG. 1
J
A
C
G
N M
FIG. 2
F
D
H
K
FIG. 3
Part# FB-P9833-89A
PARTS LIST
ITEM
DESCRIPTION
QTY
A
Side Frame
2
B
Leg
2
C
Bottom Shelf
1
D
Stretcher
1
E
Top Shelf
1
F
Double Spring Steel
2
G
Single Spring Steel
2
H
Hanging Tube
3
I
Sign Holder
1
J
Sign Graphic
1
K
Casters
4
L
2" Screw
10
½
M
1
" Screw
4
N
Hex Nut & Washer
4
O
3/8" Screw
4
page 1
