Portland Lighting Zeta Ecolux Solar Instruction Sheet

A.
B.
C.
D.
1.
E.
F.
G.
2.
ECOLUX SOLAR
Trough Light
Instruction Sheet

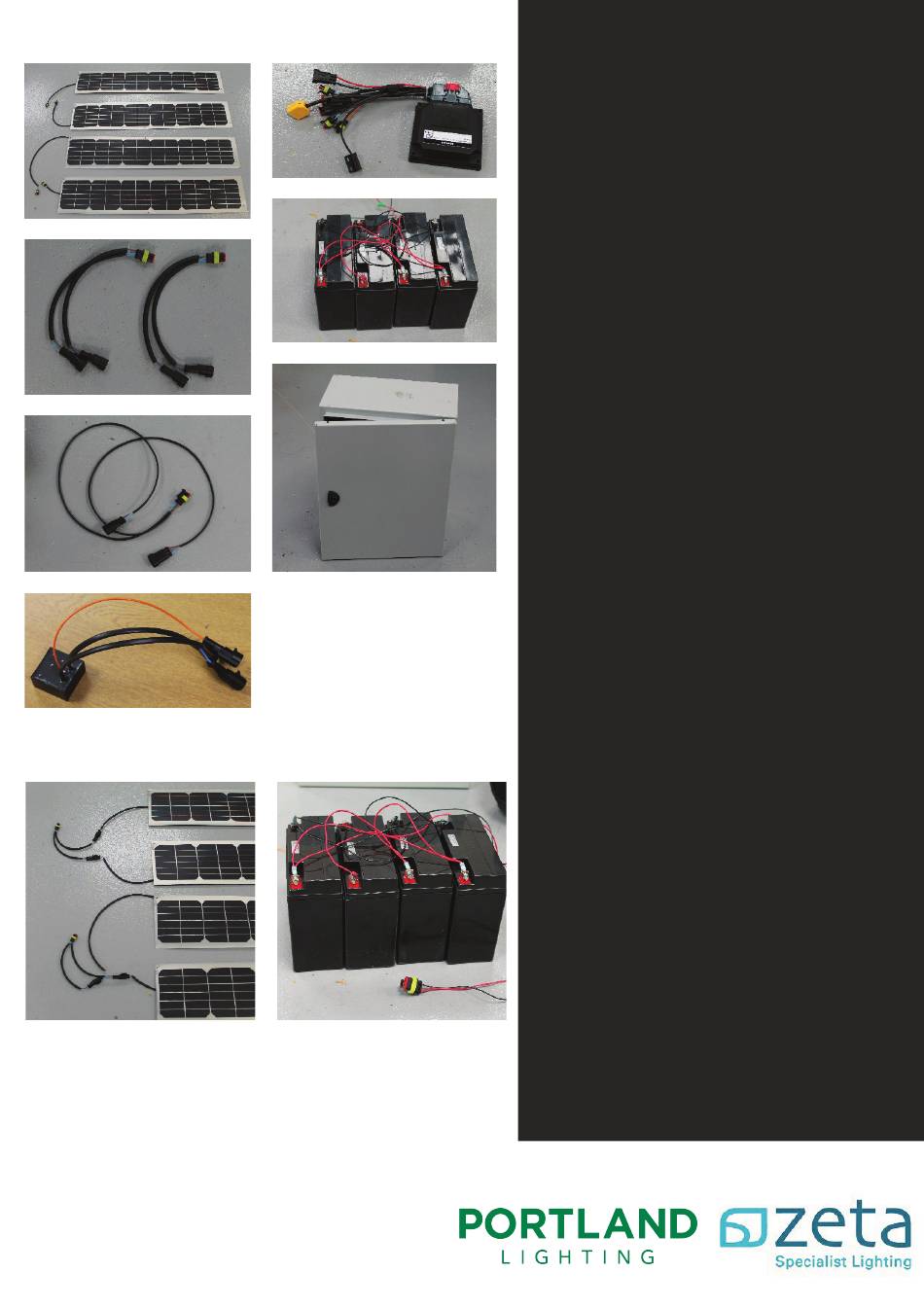

This Kit includes the following:

Solar PV Panels
A. A.
note the number of PV panels in the
kit may vary).
B. Splitter Looms
C. Battery Splitter Loom
D. 1C0L
E. PS800 Controller
Batteries
F.
number of batteries in the kit may
vary).
G. Battery Box
Please note this kit does not require
any tools for assembly.
For additional assistance with the
assembly of this product please
contact the team on 01922 721 133 to
request our instructional video.

Step 1:

Firstly, connect the splitter
looms to the PV panels,
creating pairs.
number of PV panels in the kit may vary).

Step 2:

Next, connect all of the red
wires to the positive (+) side of
the batteries (red) and connect
the black wires to the negative
(-) side of the batteries (black).
(please note the number of batteries in the
kit may vary).
(please
(please note the
(please note the
