Desview R5 Usage Manual

5.5 inch touch screen monitor with 3d luts and hdr

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

5.5 inch Touch Screen Monitor with 3D LUTs and HDR

Monitor Usage Guide

Table of Contents

Need help?

Do you have a question about the R5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Desview R5

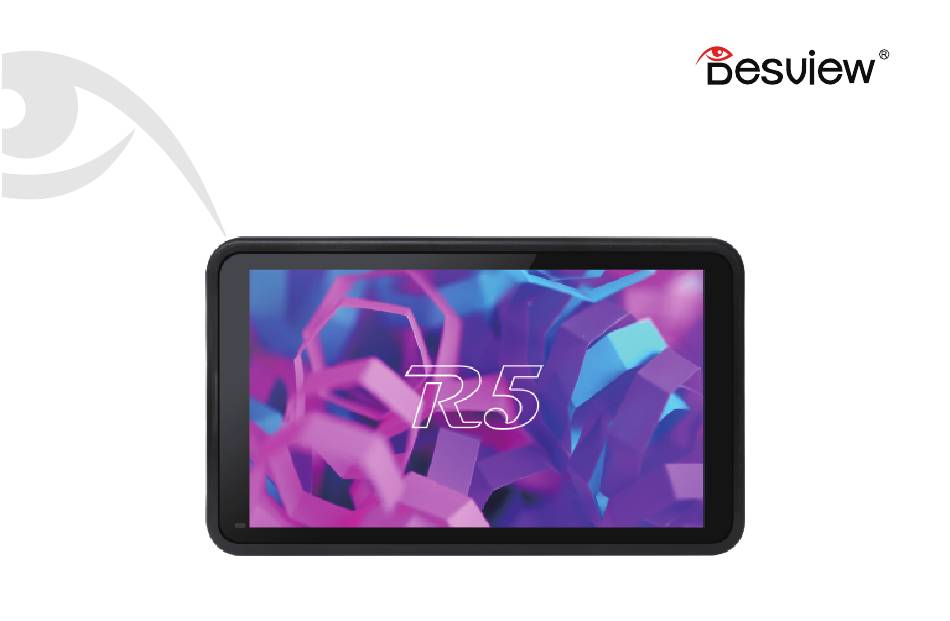

Page 1 5.5 inch Touch Screen Monitor with 3D LUTs and HDR Monitor Usage Guide...
Page 3 ontents Packing List Quick Start Menu Operation Guide Specifications Warranty...
Page 4: Packing List
Packing List Packing List Sun hood Snail hot shoe mount Mini HDMI cable Micro HDMI cable D-Tap cable SD card Microfiber cloth Instruction manual...
Page 5: Quick Start
Quick Start 1. Appearance Size Bottom view 22mm Front view 3.5mm 1/4″ SD card slot 8V DC output Headphone port 151.4mm Power button /Lock Top view Battery slot （E6， NP-F) Rear view...
Page 6 Quick Start Left view Right view HDMI output DC Input 1/4″ HDMI input...
Page 7 Quick Start 2. Sun hood setup Tutorial 2.1 Put sun shade inside the sun shield， 2.2 Fixed the sun shade up and down， 2.3 Setup accomplish， See Figure See Figure See Figure...
Page 8 Quick Start 3. Battery Info The monitor supports NP-F550、NP-F750、NP-F970 and E6 Batteries. NP-F battery series E6 battery...
Page 9 Quick Start 4. Touch Screen Instruction 4.1 The monitor supports full-touch screen control Exposure Assist Focus&Composition LUT Config Display Setting System Config Menu Config Color Color Temperature Sound Battery Notification Update Status Use your finger to continuously tap the screen Tap the screen to exit the menu,See figure twice to bring up the menu interface.See figure 4.2 The monitor supports pinch-to-zoom function...
Page 10 Quick Start 5.How to import Lut files 5.1 Insert the SD card into the monitor’s SD card slot. 5.2 Find the ‘Custom Lut_sd” in the LUT config menu, then touch “Look SD”. SD card slot Exposure Assist Focus&Composition LUT Config Look SD Custom LUT_sd Exit SD...
Page 11 Quick Start 5.4 After import the LUT file, touch “Exit SD”, then pull out the SD card. Then select "LUT Config" option in LUT setting,and to load downloaded Lut log Exposure Assist Focus&Composition LUT Config Custom LUT_sd Display Setting Close Open System Config...
Page 12 Quick Start 6.Upgrade instruction 6.1 Copy the downloaded upgrade file into the SD card. 6.2 Insert the SD card into the monitor’s SD card slot. 6.3 Find the “Update” in“System Config”menu, then click “OK” SD card slot Exposure Assist Focus&Composition LUT Config Display Setting System Config...
Page 13: Exposure Assist
Menu Operation Guide 1.Exposure Assist Exposure Assist False Color Close SPECTRUM ARRI Close Zebra Histogram Close Brightness Position Transparency Waveform Close Luminance Position Transparency Open Vectorscope Close Position Transparency Open All Wave Close Close...
Page 14 Menu Operation Guide 2.Focus&Composition Focus&Composition Single Color Close Peaking Close Weak Average Strong Strength Open Center Mark Close Oﬀ Safe Area 16:10 16:9 1.85:1 2.35:1 2.40:1 Mark Ratio Oﬀ Transparency Grid Lines Auido Meters Close Left Right...
Page 15: Display Setting
Menu Operation Guide 3.LUT Config LUT Config No Data Close Open Custom LUT_sd Look SD 4.Display Setting Display Setting Auto 4：3 16：10 16：9 1.85：1 2.35：1 Aspect Ratio Display Flip Colse Open Colse Open H Flip V Flip Zoom Zoom x2 Zoom x4 Colse Pixel-to-Pixel...
Page 16: System Config
Menu Operation Guide 5.System Config System Config Language Menu Config Reset Duration Colse Backlight Color Brightness Contrast Sharpness Saturation 5600K 6500K Color Temperature Color Green Temperature 9300K User Blue Volume Sound Mute Battery Notification Close Open...
Page 17 Menu Operation Guide Update Status Input HDMI Resolution No Signal Scan Mode No Signal frame No Signal Color Temperature 6500K Aspect Ratio Auto Backlight Volume R5V1.2 200110...
Page 18: Specifications
Specifications Screen size 5.5 inch Machine size 151.4x89.1x22mm Weight 200g Resolution 1920x1080 Contrast 1000:1 Brightness Viewing angle 178°(H/V） Backlight Material ABS engineering plastic Voltage DC7-24V Power Signal input HDMI1.4 Signal output HDMI1.4 Audio output 3.5mm stereo headphone jack...
Page 19 Specifications HDMI input signal format HDMI output signal format 720x480i&720x480p@59.94, 60Hz 720x480i&720x480p@59.94, 60Hz 720x576i&720x576p@50Hz 720x576i&720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz 1920x1080psf@24, 25, 29.97, 30Hz 1920x1080p@23.93, 24, 25, 29.97,30, 1920x1080p@23.93, 24, 25, 29.97,30, 50,59.94,60Hz 50,59.94,60Hz 3840x2160p@24,25,30Hz...
Page 20: Warranty
Warranty Warranty Introduction Thank you for buying the product .You can enjoy the following services: 1.The product will enjoy a one year free warranty and free maintenance service for the whole life from the date of purchase. 2.During the warranty period, the company will be responsible for free maintenance if any fault is caused by the quality of the product itself under normal use.
Page 21: Warranty Card
Warranty Warranty Card User Infomation Name： Phone： Add： Sales Infomation Sale date： Distrbutor name： Distrbutor tel： Repair log Repair date： Repair name： Issue： Result： Repaired Not repaired Return...
Page 22 This product is strictly inspected and meets the standard and is allowed to be sold. Examination clerk:...
