Summary of Contents for Olmar PRELUDE

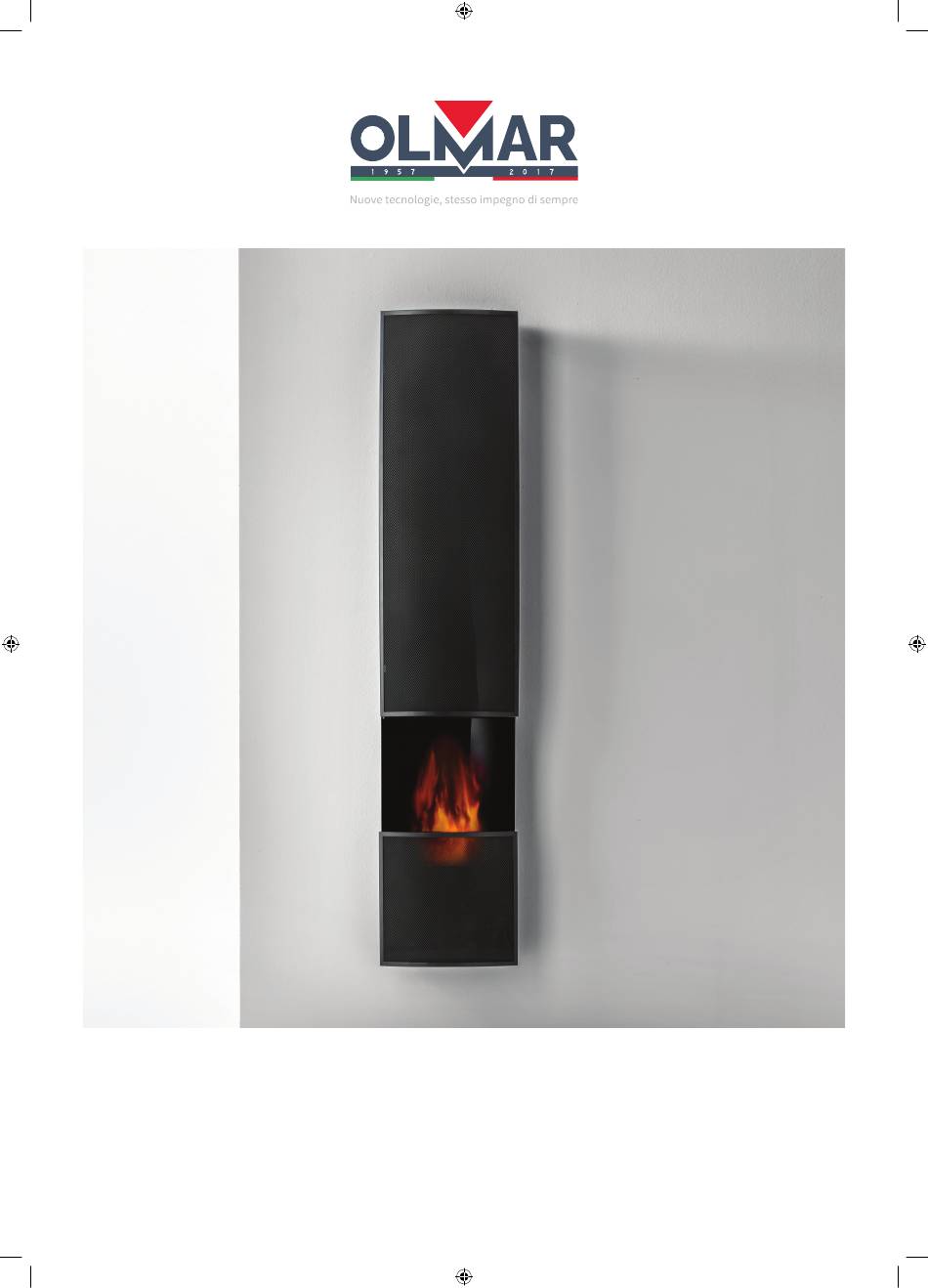

- Page 1 PRELUDE Installation and use instructions for other countries...
- Page 2 INDEX Health and safety information ..............03 Technical Characteristics of the appliance ..........04 Assembly Instructions ................06 Remote Controller ..................08 Automatic Operation Instructions ............. 10 Maintenance and Cleaning ................ 11 Environment ....................11 KEY TO SIMBOLS WARNING! OBLIGATORY QUALIFIED PERSONNEL WARNING! HOT GLASS TEMPERATURE...
- Page 3 IMPORTANT INFORMATION ABOUT HEALTH AND SAFETY Read all the instructions carefully before using the appliance. DO NOT INSTALL AND USE THE APPLIANCE IF DAMAGED Remove all packaging. In case of disposal, place them in an appropriate facility for the recycling. Do not immediately connect the appliance to a power socket.
- Page 4 APPLIANCE’S TECHNICAL FEATURES THIS APPLIANCE MUST BE CONNECTED WITH SOCKET PROVIDED WITH EARTHING VOLTAGE ............220 volts 50/60 Hz POWER ............. 2400 watts EMISSION ............FAR INFRARED BEAMS SPECTRUM ............4 – 14 μ micron COMMAND ............REMOTE CONTROL PANEL POWER LEVELS ........4 SELECTABLE LEVEL SIGNALING ..........
- Page 5 TECNOLOGIA DUAL Ag+ : exclusive technological process that allows to generate FIR infrared rays with a wavelength between 4 and 14 microns combined with antibacterial and antimi- crobial properties of SILVER IONS. PROTECTION AND SAFETY : the tempered glass emitter is set up with a a system that gua- rantees its safety in any malfunction condition o accidental breakage.
- Page 6 ASSEMBLING INSTRUCTIONS Before proceeding with the assembly of the panel, make sure that you have carefully read the speci- fications and characteristics of the product and that you have clearly understood the following assembly instructions. 3.2 This appliance has been certified for use in Italy, precisely to install the appliance in different coun- tries, instructions in the language of the country of installation are required and in some cases make changes to the appliance itself.
- Page 7 WALL MOUNTING INSTRUCTIONS 4.1 WALL MEASUREMENT AND DRILLING: Define the area dedicated to the installation of the panel paying attention to the instructions below. The chosen area and the methodology installation must ensure compliance with the supplier’s instructions. VERIFY that the air flow at the rear of the panel is guaranteed. The wall it must not have ele- ments that could obstruct the correct flow. The panel must be installed so that switches or other controls are accessible. Check that the electrical system is compliant.
- Page 8 MAKE THE HOLES WHERE TO PUT THE PLUGS AND THE PROVIDED BRACKETS CONSIDER TO INSTALL THE APPLIANCE AT LEAST 300 MM ABOVE THE FLOOR THE FIREPLACE MUST BE OPERATED ALWAYS BY TWO PEOPLE AFTER FIXING THE BRACKET TO THE WALL THROUGH THE SCREWS PROVIDED, HANG THE FIREPLACE TO THE SAME INSERTING IT IN THE APPROPRIATE OPENING POSTS IN...
- Page 9 REMOTE CONTROLLER ON/OFF BUTTON HEAT DURATION TIME 9-0 HOURS TIMER 1-9 HOURS PROGRAM BY HOUR LEVEL 4 BOOSTER LEVEL 1 GLASS TEMPERATURE HIGH LEVEL 3 LEVEL 2 GLASS TEMPERATURE LOW REMOTE CONTROL FUNCTIONS AND PANEL USE The supplied remote control is the only panel control tool Before using the remote control make sure batteries are inserted when using it, always point it towards the panel.
- Page 10 AUTOMATIC OPERATION TIME PROGRAMMING INSTRUCTIONS PROGRAMMING MUST BE DONE ONLY WITH THE PANEL IN STAND BY POSITION Select the desired function level by pressing the reference button on the remote control The number of the selected level will appear on the panel display Press the button again for at least 10 seconds D.
- Page 11 MAINTENANCE AND CLEANING MAINTENANCE: The PRELUDE fireplace does not require maintenance GLASS CLEANING: To clean the glass, remove the grid With STAND BY light on or Cold glass surface on Use only water and glass detergent. ENVIRONMENT The product is subject to separate collection for electrical appliances. At the...
