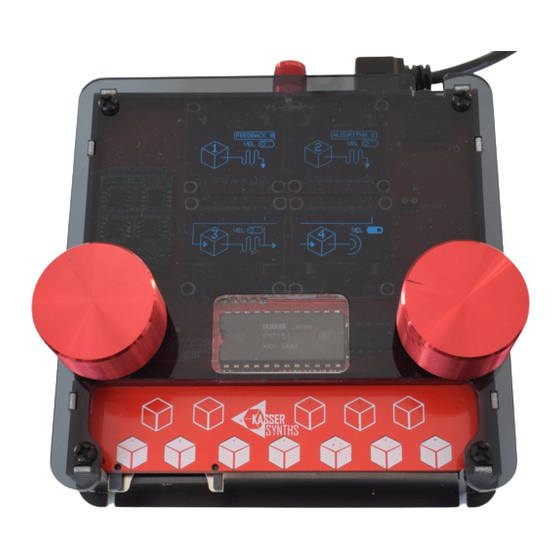

Kasser Synths ARCADE YM2151 User Quick Manual

dafm synth
ARCADE ym2151
midi in
(din 5 connector)
operator 1
operator 3
left knob: operator
left switch: cancel
*hold + right knob: octave
*hold + right switch: dim
*hold + touch 1 to 8: load
preset from midi ch 1 to 8
sd card
*for 100 % compatibility
use sd formatter software
THANKS for joining the DAFM Synth WAVE
on / off - volume
YAMAHA CHIP
2 4
1 3 5 6
user quick guide
firmware v 1.90
7
8
power in
(usb 5v)
audio out
(3.5 mm jack)
operator 2
operator 4
right knob: menu
right switch: ok
*hold + touch 1 to 8: save
preset to midi ch 1 to 8
touch keyboard 12 notes
