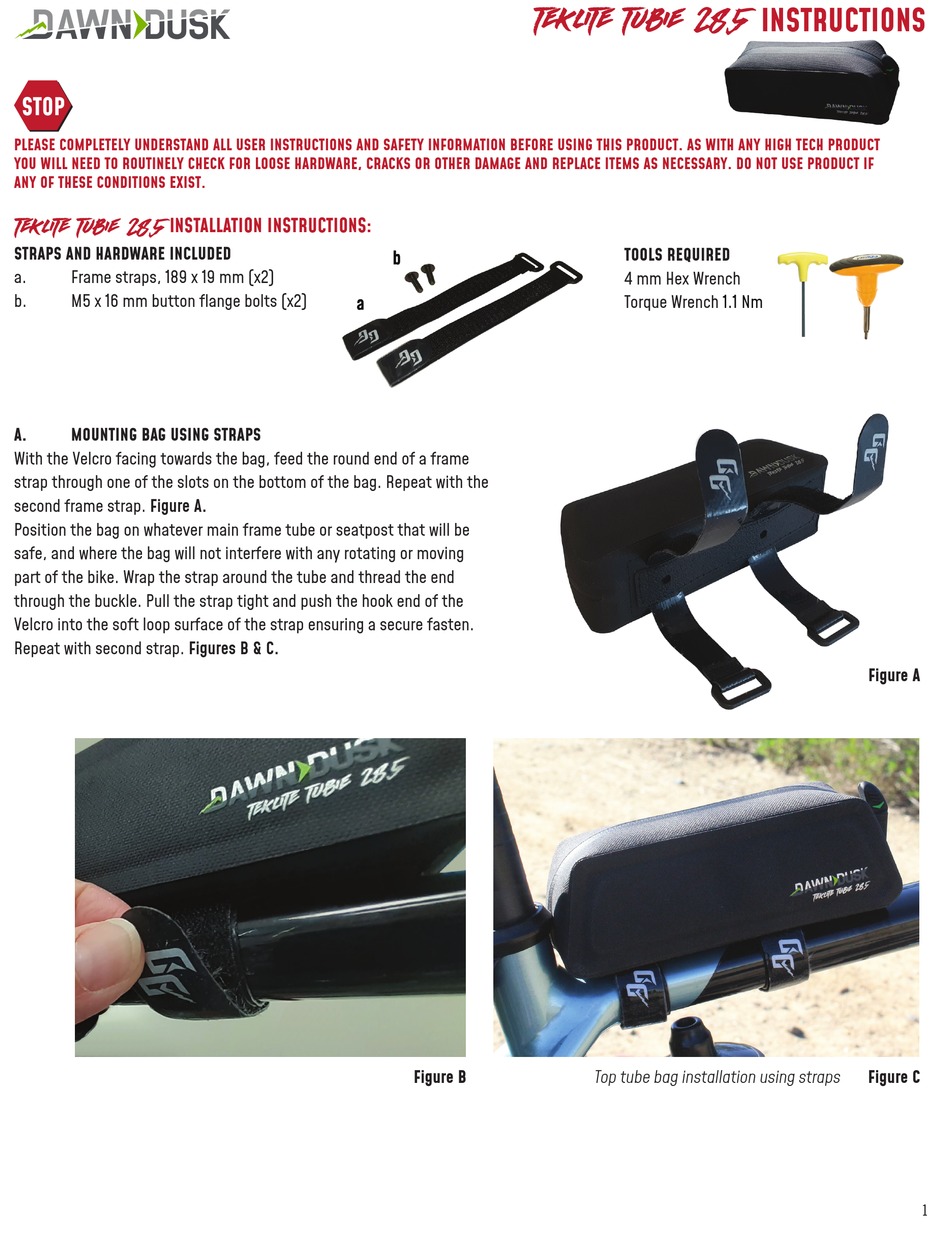

Dawn To Dusk TEKLITE TUBIE 285 Instructions

PLEASE COMPLETELY UNDERSTAND ALL USER INSTRUCTIONS AND SAFETY INFORMATION BEFORE USING THIS PRODUCT. AS WITH ANY HIGH TECH PRODUCT

YOU WILL NEED TO ROUTINELY CHECK FOR LOOSE HARDWARE, CRACKS OR OTHER DAMAGE AND REPLACE ITEMS AS NECESSARY. DO NOT USE PRODUCT IF

ANY OF THESE CONDITIONS EXIST.

TEKLITE TUBIE 285

INSTALLATION INSTRUCTIONS:

STRAPS AND HARDWARE INCLUDED

Frame straps, 189 x 19 mm (x2)

M5 x 16 mm button ﬂange bolts (x2)

With the Velcro facing towards the bag, feed the round end of a frame

strap through one of the slots on the bottom of the bag. Repeat with the

second frame strap. Figure A.

Position the bag on whatever main frame tube or seatpost that will be

safe, and where the bag will not interfere with any rotating or moving

part of the bike. Wrap the strap around the tube and thread the end

through the buckle. Pull the strap tight and push the hook end of the

Velcro into the soft loop surface of the strap ensuring a secure fasten.

Repeat with second strap. Figures B & C.

TEKLITE TUBIE 285 INSTRUCTIONS

Figure B

TOOLS REQUIRED

4 mm Hex Wrench

Torque Wrench

1.1 Nm

Top tube bag installation using straps

Figure A

Figure C

Table of Contents

Do you have a question about the TEKLITE TUBIE 285 and is the answer not in the manual?

Page 1 TEKLITE TUBIE 285 INSTRUCTIONS PLEASE COMPLETELY UNDERSTAND ALL USER INSTRUCTIONS AND SAFETY INFORMATION BEFORE USING THIS PRODUCT. AS WITH ANY HIGH TECH PRODUCT YOU WILL NEED TO ROUTINELY CHECK FOR LOOSE HARDWARE, CRACKS OR OTHER DAMAGE AND REPLACE ITEMS AS NECESSARY. DO NOT USE PRODUCT IF ANY OF THESE CONDITIONS EXIST.
Page 2 TEKLITE TUBIE 285 INSTRUCTIONS MOUNTING BAG USING BOLTS Insert the M5 x 16 mm ﬂange bolts through the slits and holes until they protrude through the bottom of the bag. Locate which set of threaded inserts you will be using to mount the bag. Using a 4 mm Hex wrench, torque each bolt to 1.1 Nm (10 lbf-in).
