Divot DVTK Quick User Manual

n
Divot ® Bare Fiber Testing Device DVTK
The Divot® Bare Fiber Adapter (Tester) is a device that quickly connects unterminated
(bare) fiber to OTDR's or other fiber optic test equipment. Simply strip the fiber, cleave and
insert into the Divot® Module. In an instant, the fiber is connected to your OTDR with low
loss and low reflectance.
l
D
D
l
E
E
l
A
A
l
B
B

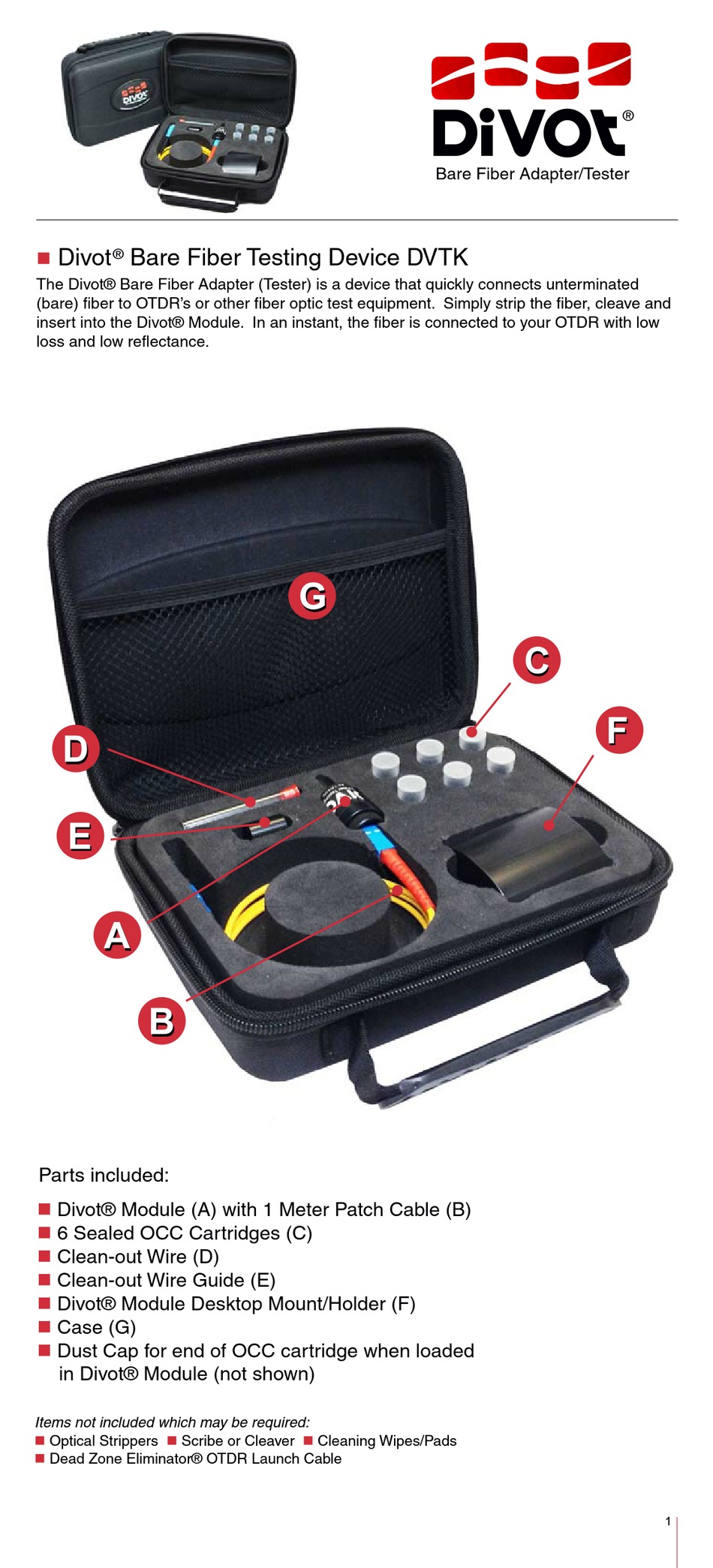

Parts included:
n
Divot® Module (A) with 1 Meter Patch Cable (B)
n
6 Sealed OCC Cartridges (C)
n
Clean-out Wire (D)
n
Clean-out Wire Guide (E)
n
Divot® Module Desktop Mount/Holder (F)
n
Case (G)
n
Dust Cap for end of OCC cartridge when loaded
in Divot® Module (not shown)
Items not included which may be required:
n n
Optical Strippers
n
Dead Zone Eliminator® OTDR Launch Cable
l
G
G
l
l
n
Scribe or Cleaver
Divot
Bare Fiber Adapter/Tester
l
l
Cleaning Wipes/Pads
l
C
C
l
l
l
®
F
F
