Summary of Contents for Hi-SCOM BN48-IP66

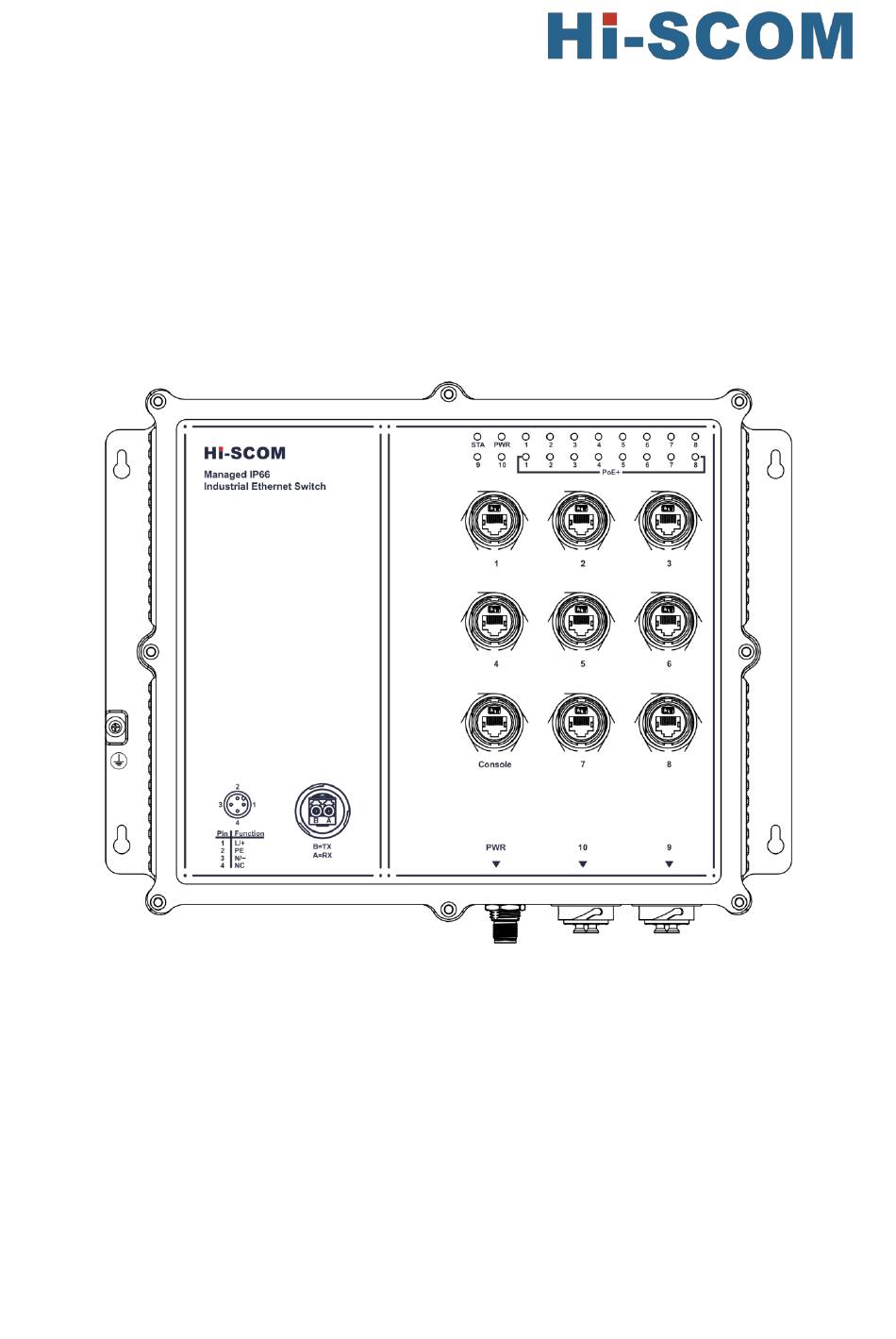

- Page 1 BN48-IP66 Managed Industrial Ethernet Switch Installation Manual Installation BN48-IP66 Release 01 11/2019...
- Page 2 Ltd. (Hi-SCOM) according to the best of the company's knowledge. Hi- SCOM reserves the right to change the contents of this document without prior notice. Hi-SCOM can give no guarantee in respect of the correctness or accuracy of the information in this document.
-
Page 3: Table Of Contents
Contents Safety instructions................4 1 Description ..................7 General device description .................... 7 Device view ........................8 Pin assignments......................9 Management interface ....................9 Display elements......................10 1.5.1 System state ..................... 10 1.5.2 Power supply state .................... 10 1.5.3 Port state ......................10 1.5.4 PoE state ...................... -
Page 4: Safety Instructions
To preserve the suitability of your device for IP65/67, proceed as follows: Remove the provided transport protection caps and the transport protection screws from the device. Seal unused sockets and plugs with your desired type of protection. Qualification requirements for personnel Installation BN48-IP66 Release 01 11/2019... - Page 5 Only allow qualified personnel to work on the device. Qualified personnel have the following characteristics: Qualified personnel are properly trained. Training as well as practical knowledge and experience make up their qualifications. This is the prerequisite for grounding and labeling circuits, devices, and systems in accordance with current standards in safety technology.
- Page 6 CLASS 1 LASER PRODUCT CLASS 1 LED PRODUCT Recycling note After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country. Installation BN48-IP66 Release 01 11/2019...
-
Page 7: Description
Network management software (for example Industrial HiVision) CONSOLE(RS232) interface (locally on the device) BN48-IP66 is a power sourcing equipment (PSE), Compatible with 802.3at compliant Power Devices (PDs), With the presence of the PoE power supply, a separate power supply for the powered device is unnecessary. -
Page 8: Device View
LED display elements for port status LED display elements for PoE status 8 × M23 RJ45 socket for 10/100/1000 Mbit/s PoE+ port Console 9..10 2 × F/O ports for 100/1000 Mbit/s F/O connections Power supply,4-pin,M12-A Code Grounding Screw Installation BN48-IP66 Release 01 11/2019... -
Page 9: Pin Assignments
1.3 Pin assignments Pin assignment of a TP/TX interface in MDI mode, RJ45 socket RJ45 10/100 Mbit/s 1000 Mbit/s PoE voltage MDI mode BI_DA+ Plus terminal BI_DA- Plus terminal BI_DB+ Minus terminal BI_DC+ BI_DC- BI_DB- Minus terminal BI_DD+ BI_DD- 1.4 Management interface The CONSOLE (RS232) interface is an RJ45 socket. -
Page 10: Display Elements
Port state These LEDs provide port-related information. LS/DA Color Activity Meaning (link status/data) Green Lights up Device detects a valid link Flashing Device is transmitting and/or receiving data None Device detects an invalid or missing link Installation BN48-IP66 Release 01 11/2019... -
Page 11: Poe State
1.5.4 PoE state These LEDs provide information on the status of the PoE. Color Activity Meaning Green Lights up The PoE power supply is active None The PoE power supply is inactive InstallationBN48-IP66 Release 01 11/2019... -
Page 12: Installation
Check whether the package includes all items below： Number Article 1 × Device 1 × Installation Manual 1 × Serial cable 1 × A 4-pin M12 A-Code for power supply Check the individual parts for transport damage. Installation BN48-IP66 Release 01 11/2019... -
Page 13: Installing And Grounding The Device
2.2 Installing and grounding the device 2.2.1 Installing the device To protect the exposed uninstalled contacts of the components from dirt, connect the individual system components in a dry and clean working area. Prepare the drill holes at the installation point. ... - Page 14 Note: Ground the device before connecting any other cables. Use toothed washers to ensure good electrical conductivity at the connection. Installation BN48-IP66 Release 01 11/2019...
-
Page 15: Connecting The Power Supply
2.3 Connecting the power supply WARNING ELECTRIC SHOCK Connect only a supply voltage that corresponds to the type plate of your device. Never insert sharp objects (small screwdrivers, wires, etc.) into the connection terminals for the supply voltage, and do not touch the terminals. -
Page 16: Operating The Device
If reducing the inductive coupling is necessary, verify that the power supply cables and data cables cross at a 90° angle. Use STP/UTP cables as per ISO/IEC 11801:2002. Installation BN48-IP66 Release 01 11/2019... -
Page 17: Switch Access
3 Switch Access You can access the switch in any of the following ways: 3.1 Access through Console Port Open Hyper Terminal in Windows OS. On the computer’s desktop, click Start→All Programs→Accessories→Communications→Hyper Terminal. Enter a name in the pop-up new connection and select an icon for the connection. -
Page 18: Reset
'loopback' packet is received at port 2 the switch will do a restore to default (including the IP address). The default IP address is 192.168.19.16. Proceed as follows: Making a physical loopback between port 1 and port 2. Reboot the Switch. Installation BN48-IP66 Release 01 11/2019... -
Page 19: Disassembly
5 Disassembly WARNING ELECTRIC SHOCK Disconnect the grounding only after disconnecting all other cables. Failure to follow these instructions can result in death, serious injury, or equipment damage. Disconnect the data cables. Disable the supply voltage. Disconnect the power supply cables and signal lines. ... -
Page 20: Technical Data
-40 º C ... +85 º C (-40 º F ... +185 º F) conditions during Humidity 10 % ... 95 % (non-condensing) storage Air pressure minimum 795 hPa (+6562 ft; +2000 m) Pollution degree Protection Degree of protection IP 66 classes Installation BN48-IP66 Release 01 11/2019... - Page 21 Dimension drawings InstallationBN48-IP66 Release 01 11/2019...
- Page 22 ± 1 kV Conducted disturbances EN 61000-4-6 150 kHz ... 80 MHz 10 V Network range 10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max. 109 yards (100 m) (for Cat5e cable) Installation BN48-IP66 Release 01 11/2019...
