Specifications
Model
ESM-50WL
Battery
14.4V 3.45Ah 50Wh Lithium Ion
Heat time
<10 seconds (to lowest heat setting)
Fuel Gauge
4 levels: 25%*, 50%, 75%, 100%
Temperature Control
LO (6W/480°C), MID (9.5W/520°C), HI (13W/570°C)
Charger
110-240VAC 1A charger and 12VDC 1A car charger
Power Consumption
Standby Mode: <200µA; Shutdown Mode: <50µA
Dimensions
235mm x 37.8mm x 52mm (excluding tip)
Net Weight
304g (excluding tip)
*When the 25% capacity LED starts to blink, there is around 6% of battery power remaining.
Please recharge immediately.

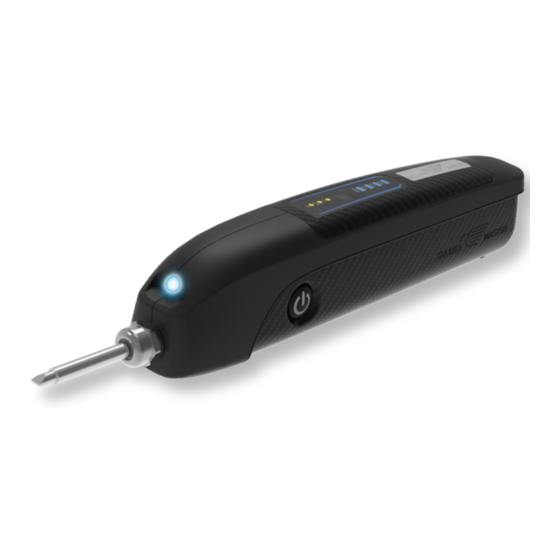

OPERATING INSTRUCTIONS
LITHIUM ION BATTERY POWERED
CORDLESS SOLDERING IRON
(ESM-50WL)
Advertisement
Summary of Contents for Solder Master ESM-50WL
- Page 1 Specifications Model ESM-50WL Battery 14.4V 3.45Ah 50Wh Lithium Ion Heat time <10 seconds (to lowest heat setting) OPERATING INSTRUCTIONS Fuel Gauge 4 levels: 25%*, 50%, 75%, 100% Temperature Control LO (6W/480°C), MID (9.5W/520°C), HI (13W/570°C) Charger 110-240VAC 1A charger and 12VDC 1A car charger...
- Page 2 (Lo / Mid / Hi) be hazardous, cause injury or damage to the Do not dispose of electric tools together with *It is possible for Solder Master to solder up to 8AWG or • Battery capacity indicator iron or to equipment and/or void warranty.
