Fitting Instructions: Soft Close for Metal Drawer Systems

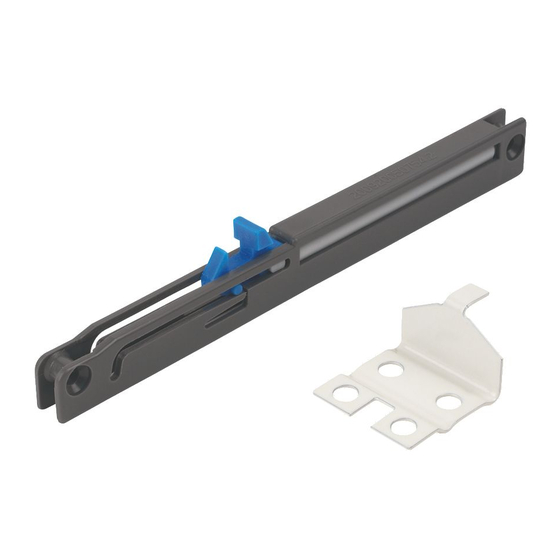

1. The product has two assembly parts for their respective location:
White Metal Bracket – Drawer
Grey Plastic Soft Close Unit - Cabinet
The distance between the side of the drawer and the inside of the cabinet must
2. Check the size of your drawer runner to determine lengths L1 & L2 using the table below.

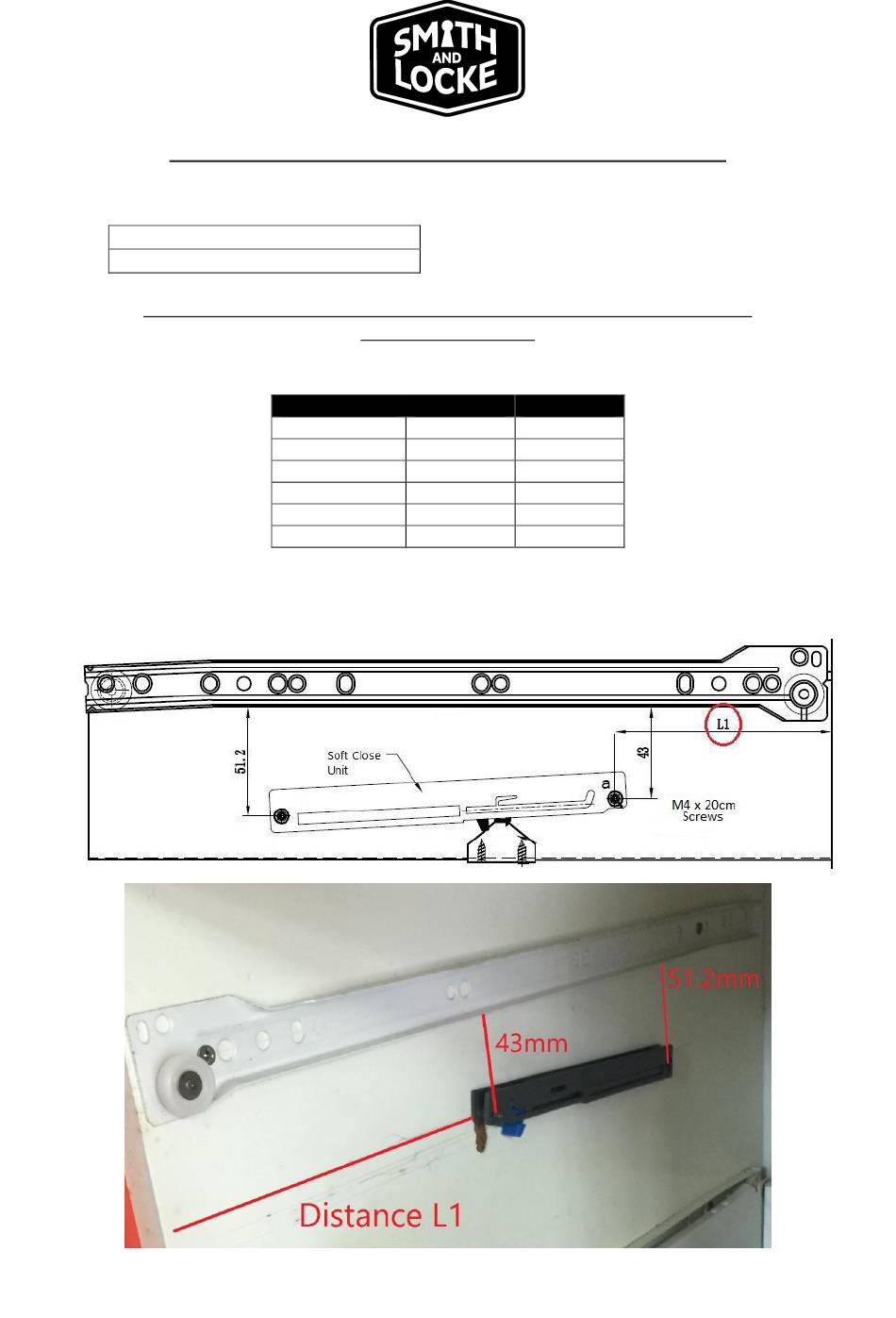

3. On the inside of your cabinet, mark the location of the position of your soft close unit – as per
the below diagram – L1 is the distance of the screw hole from cabinet front.
be between 15- 16mm
Runner Size
Distance L1
300mm
70mm
350mm
102mm
400mm
134mm
450mm
166mm
500mm
198mm
550mm
262mm
Distance L2
123.5mm
155.5mm
187.5mm
219.5mm
251.5mm
315.5mm
Locke & Co, BA22 8RT
Advertisement
Table of Contents
Summary of Contents for Smith and Locke 9370R
- Page 1 Fitting Instructions: Soft Close for Metal Drawer Systems 1. The product has two assembly parts for their respective location: White Metal Bracket – Drawer Grey Plastic Soft Close Unit - Cabinet The distance between the side of the drawer and the inside of the cabinet must be between 15- 16mm 2.
- Page 2 4. Once confirmed insert the given M4 screws in the two holes along the length of the soft close unit. 5. Install the metal bracket at the centre of ‘L2’ using the given screws - with the 90° bend wrapping around the bottom of the drawer. Locke &...
