Summary of Contents for Superbholo SH-42

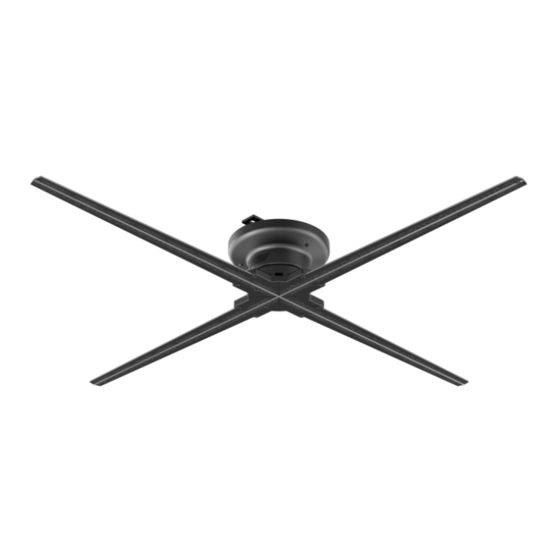

- Page 1 3D Holographic Display Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents Remote Controller iOS APP Android APP 10-13 PC Software 14-16 Precautions 17-19... - Page 3 1000x1000x89mm 692x x77mm 420x x77mm 80 W 50 W 20 W...
-
Page 4: Remote Controller
Remote Controller Turn Off Turn On Previous Decrease Brightness Increase Brightness Next MODE Cycle Play/Single Cycle Battery cover... -
Page 5: Ios App
This APP is a software for 3D Holographic Display The main functions ·User can take a photo or a video and then transfer it to Display by WIFI. · User can also view the files stored in the 3D Displayer and control them to be Display by displayer. - Page 6 This APP is a software for 3D Holographic Display 2.Connect to 3D Displayer In the iOS WLANsetting, select the wifi: SmartWifi-XXXX. The default password is: "12345678”. SmartWifi-XXXX 3.Change WiFi user name or password After connecting the 3D Holographic Display with WIFI, start the web browser https://192.168.169.1 a n d t y p e “...
- Page 7 This APP is a software for 3D Holographic Display 4.Wifi setting interface 1. WiFi account password settings 2.Language switching 5.Wifi Setting 1. WiFi user name 2.WiFi encryption 3.WiFi encryption password...
- Page 8 APP for iPhone 6.APP for iPhone user interface 1.Access the files stored in the 3D Display Press “SD Card”, the files stored in the 3D Display can be accessed.The following list is the photo files. 2.And the following list is the video files.
- Page 9 iPhone Upload Files When file is upoloading, the 3D Diaplay will be paused 1.Access the album of iPhone by press “iPhone” to view the files of the album. 2.Cancel. 3.Select photo or video and upload it to 3D Display...
- Page 10 Shoot and upload 1.Take photo or video and upload it to Holographic Display 2.Switich camera lens. 3.Click to take photo, long press to take video, video is limited to 15 seconds...
- Page 11 Manage the Files 1.Upload Photo and Video stored in the 3D Holographic Display 2.The list and order of the file to be displayed. 3.Favorite files...
-
Page 12: Android App
Android APP 1.Please go to “Google Play” to download the App firstly.Just search for "3D displayer” 2.you can also find the APK(AndroidPackage) in the TF card Menu: 1, Click “SD Card” to access files stored in the SD Card, 2, the following list are photos 3, the following list are videos 4, Access the Album of your phone 5, take the photo or video by your camera,... - Page 13 Photo Upload The 3d display will pause while you uploading files 1, Access the Album of your phone 2, Take photo by camera 3, Access the photo stored in your phone 4, Access the video stored in your phone 5, undo 6, Select this picture or video to upload to SD card...
- Page 14 Take vid o and upload 1, Take video by your camera 2, Switching between front and back camera 3, click to take photo, and hold to take video, the max duration of each video are 15 seconds...
- Page 15 Manage 1, all upload-finished files in the SD card including image and video 2, “Playlist” and “I Like”...
-
Page 16: Pc Software
PC Software PC Conversion Software Instruction 1.Function Convert your video and image files to bin files, then apply to the 42, 70, 100cm 3D hologram led fan 2.Format supported MP4,JPEG,JPG,GIF,AVI,RMVB,PNG,MKV,WM V,MOV,FLV 3. Instructions (1)Open the software “3D Display.exe”( you can find this software in TF card), As shown below （... - Page 17 PC Software 1>“AD01--42CM”：For 42cm 3D Holo fan 2>“AD04--70CM”：For 70cm 3D Holo fan 3>“AD03--100CM”：For 100cm 3D Holo fan 4>“AD02--200CM”：For 200cm 3DHolo fan 5>“42CM--04x03”：For 4X3 Splicing 42cm fan, 4 sets in the horizontal direction and 3 sets in the vertical direction, a total of 12 sets. (3)Click“Open”...
- Page 18 PC Software video file to each TF card according to the ID number. copy part 0 to the host box and No.0 fan's TF card, and part-1 into No.1 fan's TF card..and so on Insert the TF card into each machine according to the ID number. Method 2: Copy all files to all TF cards, and the contents of all TF card are the same.
-
Page 19: Precautions
Precautions Before using, please check the voltage whether is the same with the 3D Holographic Display voltage or not. Please do not pull power plug with wet hand to avoid the danger of electrification and electric shock. Please avoid high temperature, high humidity, acid and alkali oil, insecticidal water and curtain, etc. - Page 20 Precautions When the blade is running, please do not insert your fingers or sticker into the guard. Please check the power cord and the plug before using. If the power supply soft wire damage, in order to avoid danger it must be changed by the manufacturer, maintenance department or professional staff.
- Page 21 Precautions Please do not use water or other liquid to wash electrical components (e.g. power switch, motor, etc.) Electrical components can be cleaned with clean cloth. It is forbidden to disassemble the product for modification. It is recommended to check and clean the product every year to extend its service life.
- Page 22 888820190123 V02...
