Summary of Contents for Clabo FB Proxima STX G6

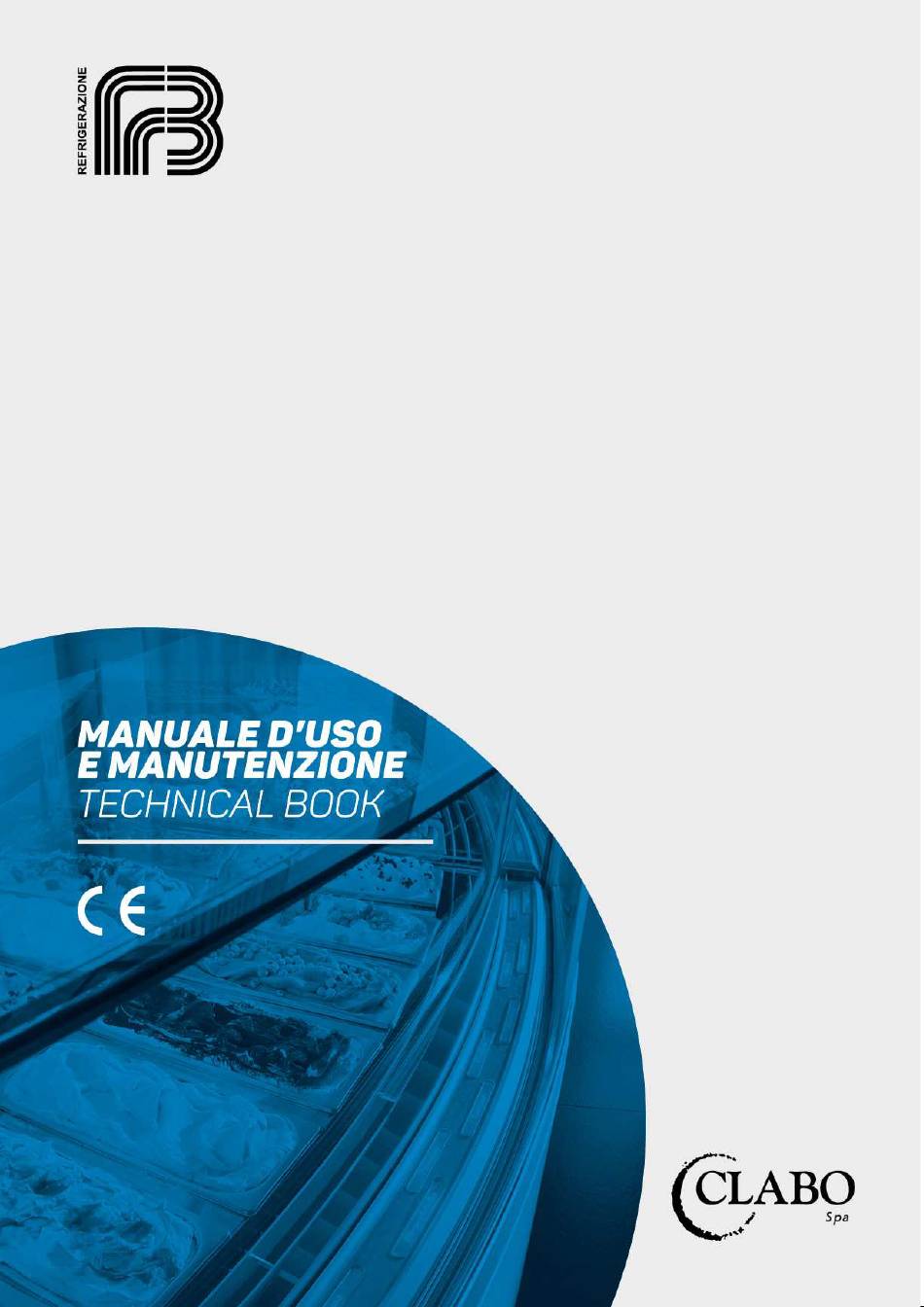

- Page 1 gelateria Proxima STX English...
-
Page 2: Table Of Contents
PROXIMA STX Ice-Cream Cabinet ENGLISH Index Standard and Regulations ........................... 5 Identification ..............................5 Technical Assistance ............................. 5 Data and Technical Specifications ......................6 Main Characteristics ............................6 Technical Drawings ............................8 Technical Data ..............................10 Receipt and Installation ..........................11 Lifting and Movement .......................... - Page 3 PROXIMA STX Ice-Cream Cabinet ENGLISH Stopping the Machine ..........................25 Cleaning and Maintenance ........................26 Ordinary Maintenance: Daily Cleaning....................26 Ordinary Maintenance: Weekly Cleaning ..................... 27 Programmed Maintenance – Condenser Cleaning ................28 Summary of scheduled Maintenance ....................29 Practical Troubleshooting Guide ......................30 Electrical Diagrams ............................
- Page 4 PROXIMA STX Ice-Cream Cabinet ENGLISH Dear Customer This Manual or Technical Guide is a part of the Product and its target is to show use and maintenance of the cabinet. The operators have the responsibility of reading it and following the instruction reported on it.
-
Page 5: Standard And Regulations
Phone: +39 0731 6153 1 Fax: +39 0731 6153 413 Email: info@clabo.it Or using Internet web site: www.clabo.it It is necessary to communicate to the technical assistance: • Cabinet serial number (as described in the previous paragraph) •... -
Page 6: Data And Technical Specifications
PROXIMA STX Ice-Cream Cabinet ENGLISH 2. DATA AND TECHNICAL SPECIFICATIONS 2.1 MAIN CHARACTERISTICS Proxima STX Ice-Cream cabinet is planned for showing and marketing ice-cream products and deigned to reach temperatures in the refrigerated zone not less than -18/-20°C, at Class 4 Climatic Conditions (+30°C, 55% R.H.), defined by the UNI EN 23953-2 par. 5.3.1.3 European Standard. - Page 7 PROXIMA STX Ice-Cream Cabinet ENGLISH The roof is supported by metallic pillars that can resist a maximum weight of 10 kg. WARNING: risk of Break. Don’t put concentrated weight on the roof: In order to avoid damages, distribute the weight evenly on the surface. If the cabinet has a reserve storage this is designed for display of product at low temperature, not below -18/-20 °C.
-
Page 8: Technical Drawings
PROXIMA STX Ice-Cream Cabinet ENGLISH 2.2 TECHNICAL DRAWINGS SECTION VIEW - CABINET H1320 SECTION VIEW - CABINET H1450 SIDE VIEW H1320 SIDE VIEW H1450... - Page 9 PROXIMA STX Ice-Cream Cabinet ENGLISH REAR VIEW Plan View: 12+12 MODEL QUOTE 1050 1575 2100 “L” MODEL A 45° A 30° C 30°...
-
Page 10: Technical Data
PROXIMA STX Ice-Cream Cabinet ENGLISH 2.3 TECHNICAL DATA Working Supply * Compr. Total Power Mod: Temperature [V-ph-Hz] Power [W] Type [°C] 400/3/50 1150 1560 -18/-20 R404a 400/3/50 1700 -18/-20 R404a 2255 400/3/50 2170 2930 -18/-20 R404a 400/3/50 1150 1690 -18/-20 R404a 400/3/50 1150... -
Page 11: Receipt And Installation
PROXIMA STX Ice-Cream Cabinet ENGLISH 3. RECEIPT AND INSTALLATION WARNING: Before acceptance of the equipment, control the following: • the package must be intact and the products haven’t to be damaged during transport. • the shipped goods correspond to the order specifications. •... -
Page 12: Positioning
PROXIMA STX Ice-Cream Cabinet ENGLISH • Lift up the cabinet by the pallet, as shown in Pic.3 . • The cabinet must be moved manually when on the ground. • Remove the screws that anchor the lists to the base: tilt the cabinet and remove the lists as shown in Pic.3 Pos.B •... -
Page 13: Environmental Specifications
PROXIMA STX Ice-Cream Cabinet ENGLISH WARNING: During positioning do not lean on or pull front risk and side glasses, front and side panels: of damage (see fig.5). WARNING: The showcase is designed for use with a decking with minimum height 80mm. If you do not use a decking be sure to buy the proper back closure of the base, to prevent Fig.5... -
Page 14: Canalization
PROXIMA STX Ice-Cream Cabinet ENGLISH WARNING: During working operations, there is an air exchange between the cabinet’s refrigerating system and the surrounding environment. For this reason don’t install the cabinet in ambient subjected to pollution or having atmospheres with substances in concentration or quantity out of the limits regulated by actual law for health care. -
Page 15: Plumbing Connection
PROXIMA STX Ice-Cream Cabinet ENGLISH 3.5 PLUMBING CONNECTION Connect the inlet and outlet tubes to the water plant for water-cooled condenser type display cabinets only. The inlet tube may be recognised by its thermal insulation covering. WARNING: Please ensure that the taps are open and that the water flows regularly (Pic. -
Page 16: Water Drain Pipe
PROXIMA STX Ice-Cream Cabinet ENGLISH Respect national regulations for electrical installations. Position the master switch in the OFF position. The display cabinet is supplied with a 5-wire cable; • Yellow/Green = Grounding wire • Blue = Neutral Line • Brown = phase 1 •... -
Page 17: Remote Units Installation
PROXIMA STX Ice-Cream Cabinet ENGLISH 3.8 REMOTE UNITS INSTALLATION If condensing unit are remote, far from the cabinet, these will be supplied separated from the cabinet. Model, Power and Dimensions of the condensing unit depend on the distance from the cabinet, which can reach up to 20 mt. For remote condensing unit installation, use and maintenance, please refer to its manual, supplied with the unit itself. -
Page 18: Functioning
PROXIMA STX Ice-Cream Cabinet ENGLISH 4. FUNCTIONING 4.1 GENERAL USE RULES The machine is designed for showing ice cream (“Products”) at the required temperature by the customer and not less than -18/-20 °C. Before introducing products inside the cabinet, wait about 60 minutes from refrigeration start-up: the refrigerating system must reach setpoint temperature. -
Page 19: Start-Up
PROXIMA STX Ice-Cream Cabinet ENGLISH For the correct functioning of the cabinet, it is necessary to verify that, during its operations, no ambient elements have an effect on its functioning; in particular it is necessary to control the follow: • Air circulation around the cabinet should be sufficient to guarantee the correct functioning of the condenser (in case of inner condensing unit). -
Page 20: Control Panel
PROXIMA STX Ice-Cream Cabinet ENGLISH 4.3 CONTROL PANEL Keyboard T640 Inox Blue (183x38 mm) To visualize or change set point. When programming this button is used to select a parameter or to confirm a value. This button is used during programming for going through the parameter codes or for increasing their value. - Page 21 PROXIMA STX Ice-Cream Cabinet ENGLISH There are a series of luminous points on the display, the meaning of which you will find in the table below: Mode Function Compressor on FLASHING Programming phase (flashing with LED evaporator and fans active FLASHING Programming phase (flashing with LED Defrosting active...
- Page 22 PROXIMA STX Ice-Cream Cabinet ENGLISH Reset Minimum / Maximum recorded temperatures 1. In order to reset recorded temperatures, first visualize maximum / minimum recorded temperature as described above, with keys 2. Push SET button until the message “RSt” on display flashes three times. Visualize and Modify Setpoint Temperature 1.
- Page 23 PROXIMA STX Ice-Cream Cabinet ENGLISH Change parameters values Enter programming mode as described above: 1. Select the parameter you want to change with buttons. 2. Press SET button to visualize the value of the selected parameter. 3. Change its value with buttons and push SET button to confirm the choice.
-
Page 24: Alarm Messages
PROXIMA STX Ice-Cream Cabinet ENGLISH 4.4 ALARM MESSAGES Display Cause Outputs status Compressor output: 15 minute on and Faulty main probe 30 minutes off Faulty Evaporator Probe Not modified High temperature alarm Not modified Low temperature alarm Not modified Memory anomaly Not modified Digital input external alarm Not modified... -
Page 25: Stopping The Machine
PROXIMA STX Ice-Cream Cabinet ENGLISH In order to use the optional for passing from ice-cream functioning to pastry functioning, identify additional switch located in cabinet back panel and highlighted by the sticker shown here The presence of the light of the switch (pos.1) means that the cabinet is working in Ice-Cream Mode. -
Page 26: Cleaning And Maintenance
PROXIMA STX Ice-Cream Cabinet ENGLISH 5. CLEANING AND MAINTENANCE WARNING: All maintenance operations must be performed by expert qualified personnel. Before performing any maintenance operation be sure that the cabinet is disconnected from electrical supply. WARNING: Wait until hot parts have cooled down and reached ambient temperature to avoid burning risk. -
Page 27: Ordinary Maintenance: Weekly Cleaning
PROXIMA STX Ice-Cream Cabinet ENGLISH 5.2 ORDINARY MAINTENANCE: WEEKLY CLEANING Weekly cleaning operations can be performer by generic not-trained personnel. Cabinet must be completely cleaned at least once a week, in order to eliminate dirt and to defrost it completely. Remove bottom panel for performing weekly cleaning, in order to get access to the bottom of the basin. -
Page 28: Programmed Maintenance - Condenser Cleaning
PROXIMA STX Ice-Cream Cabinet ENGLISH WARNING: In case of electric water-evaporating pans optional don’t use too much water during cleaning operations in order to avoid water spillage on floor. WARNING: During cleaning operations of movable glasses, be careful in opening and closing the glass, accompanying it until its final position. -
Page 29: Summary Of Scheduled Maintenance
PROXIMA STX Ice-Cream Cabinet ENGLISH 5.4 SUMMARY OF SCHEDULED MAINTENANCE Ordinary Maintenance Generic Qualified Frequency Tools Operator Operator External glass Suitable cleaner, Humid Daily surfaces sponge Internal Glass Suitable cleaner, Humid Daily surfaces sponge Other External Suitable cleaner, Humid Daily sponge surfaces Inner basin surfaces... -
Page 30: Practical Troubleshooting Guide
PROXIMA STX Ice-Cream Cabinet ENGLISH 6. PRACTICAL TROUBLESHOOTING GUIDE 1) Temperature of the display area not low enough (i.e. ice cream too soft) Probable Cause Probable Solution Perform a complete defrost as follow: Remove the displayed product and put inside another refrigerated cabinet. - Page 31 PROXIMA STX Ice-Cream Cabinet ENGLISH 2) The defrosting water does not drain off properly (that is, the water obtained from the melting of ice during the automatic or manual defrosting phases). Probable Cause Probable Solution The defrosting water drainage tube that goes from the cold tub to the tub in which such Open up the drainage tube water is channelled (for evaporation) is blocked.
- Page 32 PROXIMA STX Ice-Cream Cabinet ENGLISH 5) The light is not working Probable Cause Probable Solution The light switch is not turned on. Turn on the light switch. Verify that the 4-pin connector between two The LED bars are not connected properly. LED bars is inserted properly.
-
Page 33: Electrical Diagrams
PROXIMA STX Ice-Cream Cabinet ENGLISH 7. ELECTRICAL DIAGRAMS 7.1 PROXIMA STX ELECTRICAL BOX – 1 SEMI-HERMETIC COMPR. Standard Version 400-3-50... -
Page 34: Electrical Box - Condensing Unit (Internal Or Remote)
PROXIMA STX Ice-Cream Cabinet ENGLISH 7.2 ELECTRICAL BOX – CONDENSING UNIT (INTERNAL OR REMOTE) KRIWAN Protection TERMIK Protection... -
Page 35: Cooling System Diagram
PROXIMA STX Ice-Cream Cabinet ENGLISH COOLING SYSTEM DIAGRAM 8.1 COOLING SYSTEM W/ DOUBLE INVERTED CYCLE DEFROST POSITION DESCRIPTION QUANTITY Semi-hermetic Compressor 4-way Defrost Valve Condenser (double fan) Condenser Fan Liquid Receiver Filter Liquid Glass Manual Tap Check Valve Thermostatic Valve Evaporator Fan Evaporator Capillary diam.6 x 600... -
Page 36: Optional Kit Kvp - Ice Cream / Pastry Change
PROXIMA STX Ice-Cream Cabinet ENGLISH 8.2 OPTIONAL KIT KVP – ICE CREAM / PASTRY CHANGE POS. DESCRIPTION Solenoid Valve Coil Solenoid Valve Body KVP Pressure Regulating Valve... - Page 37 Clabo Spa undertakes to provide una durata di 14 mesi dalla data di consegna warranty on its products to the first purchaser dalla Clabo Spa al cliente, inteso come primo of the product for a period of 14 months acquirente.
