Summary of Contents for Sensor Networks JAWS 2.0

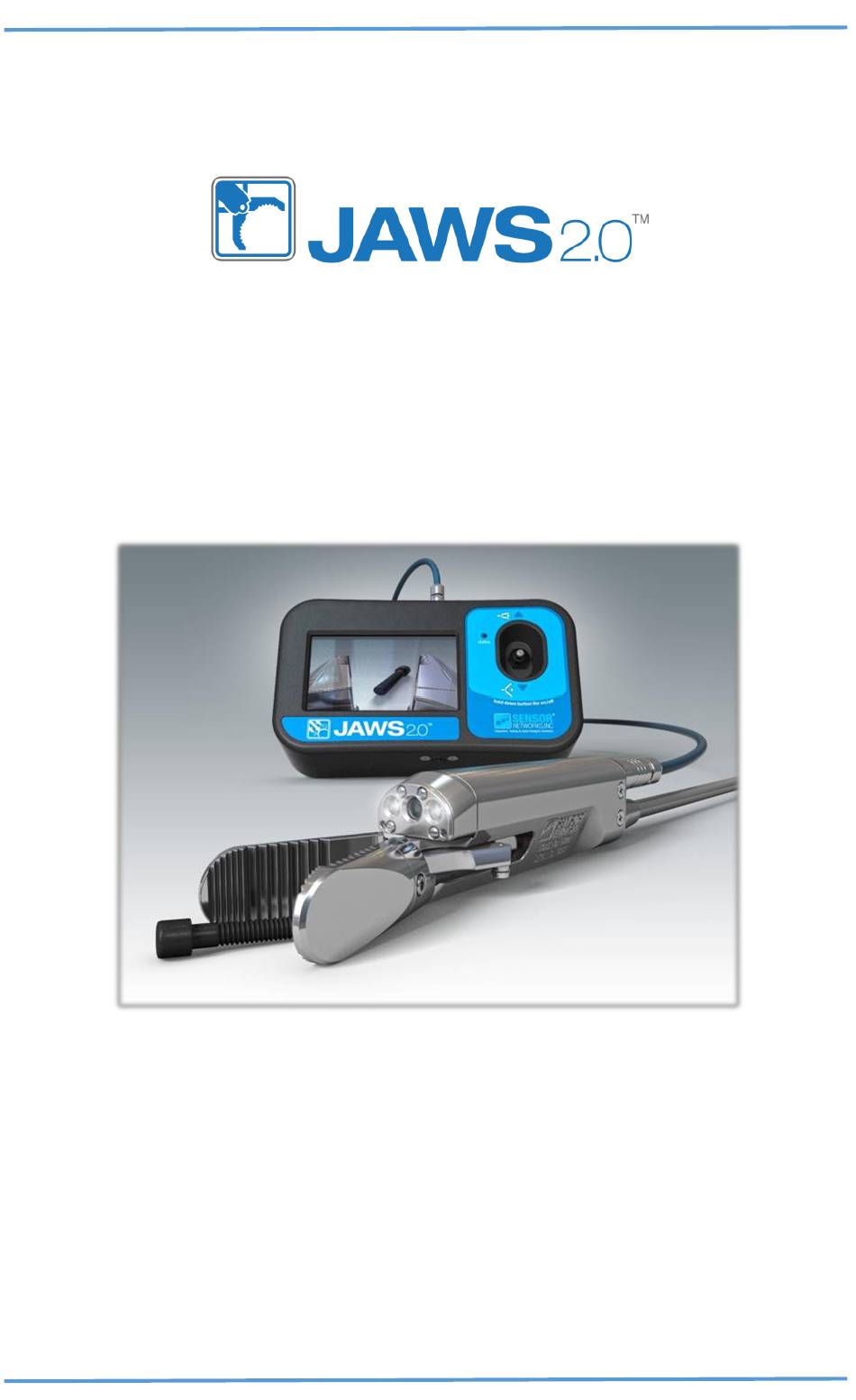

  • Page 1 Operator Manual Basic and Ultimate Kits...
  • Page 3: Table Of Contents

    Contents ™ Overview ..............4 JAWS Precautions ..................5 Setup ....................6 Powering the System ..............6 HD Display / Controller ..............7 Operation ..................8 Grabber Operation ..............8 Changing Jaw Sets ............... 8 Battery Status ................8 Power Saving Modes ..............8 Battery Charging .................
  • Page 4: Jaws Overview

    Ultimate Kit to deliver the tool to most ™ JAWS remote locations. Contents ™ JAWS Basic Kit • JAWS 2.0 HD grabber • AC adapter/charger • JAWS 2.0 HD display/controller • operator manual • 50ft (15m) power/video cable • hex key, spare screws Contents ™...
  • Page 5: Precautions

    Precautions • EXPLOSION HAZARD: Do not use in an ™ JAWS explosive or hazardous environment. • BODILY HARM HAZARD: Do not position near ™ JAWS moving machinery. • Do not operate in temperatures below 0°F or above ™ JAWS 120°F (-20°C - 50°C) •...
  • Page 6: Setup

    Setup Power / Video HD Display Cable / Controller HD Grabber 1. Connect main cable to grabber. Align the red dots and push connector in until it clicks. 2. Connect extension cable as needed. Use without this cable is recommended as the extra cable length consumes power that would otherwise be available for the tool.
  • Page 7: Hd Display / Controller

    HD Display / Controller Status LED Switch Cable Connector HDMI Output ¼”-20 Mount For Lanyard ¼”-20 Mount Power Connector For Lanyard Battery Access Folding Stand...
  • Page 8: Operation

    Operation Grabber Operation Press the switch forward to close the tool jaws. When the jaws have tightened fully, the status LED will change to Yellow. Press the switch rearward to open tool jaws. Changing Jaw Sets To change the preferred jaw set on tool, use a 3/32-inch hex key to remove the socket head screws on each jaw.
  • Page 9: Battery Charging

    Battery Charging Place the charger on a flat, level surface away from sources of heat and moisture. Plug the connector from the AC adapter into the back of the charger and connect the adapter to the mains AC supply using the cable supplied.
  • Page 10: Operation With Ac Mains Power

    Reverse the above operation for portable / battery operation of the JAWS tool. Operation with AC Mains Power Plug the barrel connector from the AC adapter into the power jack on the HD Display / Controller. Connect the adapter to the mains AC power outlet.
  • Page 11: Securing With A Lanyard

    Securing the controller with a Lanyard The JAWS 2.0 power pack / controller comes with an attachment point for (not included) hand or neck lanyards. When using with a lanyard, be sure to use only safety “break-away” lanyards. Spare Parts...
  • Page 12: Jaws Ultimate Kit Accessories

    ™ Ultimate Kit Accessories JAWS Interchangeable Jaw Sets Part Number Description 143360 Jaw Set, Fork & Tine 143370 Jaw Set, Flat Serrated 143380 Jaw Set, Curved Serrated 143390 Jaw Set, Needle Nose 145610 Jaw Set, Sampling Cups 153230 Tool Adapter Retrieval Accessories Part Number Description...
  • Page 13: Interconnecting Long Push Poles And Case

    Interconnecting Long Push Poles and Case Part Number Description 143265 Ø 3/16" x 60"L (Ø 5mm x 150cm) Push Pole 143266 Ø 1/4" x 60"L (Ø 6mm x 150cm) Push Pole 143268 Ø 5/16" x 60"L (Ø 8mm x 150cm) Push Pole 143269 Ø...
  • Page 14: Specifications

    Specifications Construction Aircraft-grade Aluminum Housing Stainless Steel Jaw Sets Polyurethane Cable Jacket Polyurethane Display / Controller Size 1.4in (37mm) Diameter 7.1in (180mm) Length Weight 0.8lb (.36Kg) Remote Grabber Tool 3.1lb (1.4Kg) Battery Power Pack 0.7lb (0.32Kg) Cable Jaw Opening 2.75in (70mm) maximum Power 15 watts, 12Vdc (rechargeable NiMH battery) Depth Rating...
  • Page 15: Warranty

    Warranty Sensor Networks Inc. (SNI) warrants that the Products sold to Buyer hereunder will be free from defects in material and workmanship furnished by SNI and will conform, within normal commercial tolerances, to applicable specifications. This warranty shall apply only...
  • Page 16: Appendix

    Using the Accessories Retrieval Tips and Using the JAWS 2.0 Kit The JAWS 2.0 retrieval tool kit has been developed over decades of successful loose-parts retrieval experience at Electric Power Generation and Oil & Gas facilities around the world. Following are some helpful tips and hints on how to maximize the value of your JAWS 2.0 investment.
  • Page 17 This function is very important to performing successful retrievals. 3. JAWS 2.0 tool interconnects. The adjustable elbow, the flex joints or any of the flexible rods can be connected to the JAWS tool by squeezing the spring-loaded pushpin, inserting and aligning the pin.
  • Page 18 5. Snare closing in on a stainless-steel valve body. PN 143203 or 143204 The small snare (left) and the large snare (right) are used similarly with or without the adjustable elbow. By pushing, rotating and pulling on the flex rod, the user can lasso a large and heavy loose part.
  • Page 19 7. Flexible joints Rubber flex joint (left) and spring flex joint right are used when the JAWS tool or end effectors need to be pushed through an elbow or pipe “T”. 8. Attaching the tool adaptor PN 153230 to the JAWS tool requires removal of the one or both jaws and sliding the tool adaptor in, securing with the 4-40 socket head screw and a 3/32-inch hex wrench.
  • Page 20 9. Swapping the JAWS grabber options: JAWS grabbers can be easily changed using a 3/32-inch hex wrench. Be sure to securely tighten these before deploying the tool. Standard /short Jaw (left) is best for navigating tight corners or elbows. The fork &...
  • Page 21 Good luck retrieving! Call us for technical support...
  • Page 22: Contact Us

    JAWS 2.0 is a trademark of Sensor Networks, Inc. Contact Us +1 814 466 7207 customercare@sensornetworksinc.com SensorNetworksInc.com Sensor Networks, Inc. 176-500 Technology Drive, Boalsburg, PA 16827 PN 154703A ©2018 by Sensor Networks, Inc. All rights reserved.
