Summary of Contents for Pxmalion Core I3
-
Page 1: Table Of Contents

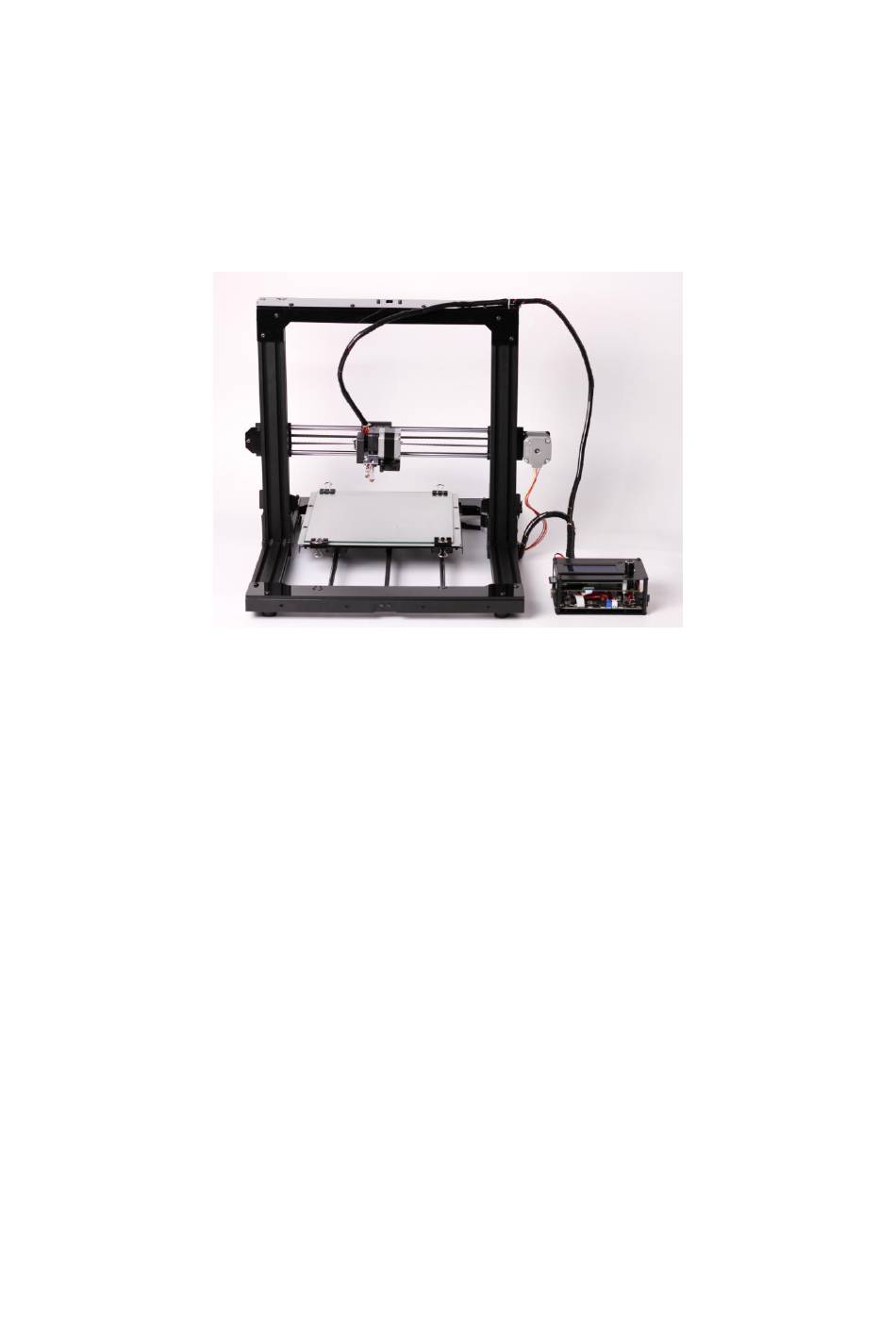

Pxmalion Core I3 Operation Instructions Ⅰ Contents 1. The information screen 2. Go to home position 3. Load / unload filament 4. Adjust print parameters (1) Nozzle temperature (2) Bed temperature (3) Cooler fan speed (4) Printing speed (5) Pre-heat (6) Cool down 5. -
Page 2: The Information Screen
Ⅱ The information screen 1. Information available in this screen: ①Please check the pictures below for explanations of the displayed information and the control knob. ②Control knob: Turn it to select and click to enter. Nozzle temperature: actual / set Bed temperature: actual / set Time spent: hours / minutes Status of printer... -
Page 3: Go To Home Position
Ⅲ Go to home positions 1. Go to home positions: send all X, Y, Z to home positions. (X: 0 Y: 0 Z: 0) 2. Home position: X: 0 --- Nozzle is at the leftmost position Y: 0 --- Platform is at the farthest position Z: 0 --- Nozzle is at the lowest position 3. -
Page 4: Load / Unload Filament
Ⅳ Load / Unload filament 1. Load filament: To feed filament into extruder and nozzle. Unload filament: To retreat filament from extruder and nozzle. 2. Operation sequence: Info screen -- "Prepare" -- "Change filament" --"Load filament/Unload filament" Illustration Nozzle temperature / set temperature: load / unload filament cannot start until nozzle temperature reaches the set value. -
Page 5: Adjust Print Parameters
You can adjust the set temperature by turning the knob. Unload / load can be done now when heating is finished. Click to stop the operation. Ⅴ Adjust print parameters 1. Parameters: ①Nozzle temperature ②Bed temperature ③Fan speed ④Print speed ⑤Preheat: for PLA: Nozzle 190°C bed 40°C ⑥Cool down: All heating stop. - Page 6 Turn the knob to adjust print speed. Click on one then turn the knob to adjust the fan speed. (3) Pre-heat: Info screen -- "Prepare" -- "Preheat PLA" -- "Preheat PLA/Preheat PLA Bed" (4) Cool down: Info screen -- "Prepare" -- "Cool down" Illustration Cool down...
-
Page 7: Control Of Motions
40°C is set automatically for bed temperature. 190° is set automatically for nozzle temperature. Ⅵ Control of Motions 1. What can be controlled? ①Motions along X, Y, Z, E ②Disable stepper motor: can unlock the motors to move muzzle and platform freely by hands. 2. -
Page 8: Print An Object
Disable stepper motor. Turn the knob to define a location. Ⅶ Print an object 1. Required knowledge: ①Check for the presence of SD card ②Operations to print 2. Operation sequence: 1) To print an object Info screen -- "Print from SD" -- "select a G-CODE file" Illustration SD card inserted... -
Page 9: Adjust Z Motion Smoothness
Ⅷ Adjust Z motion smoothness 1. Purpose: ①To adjust Z motion mechanisms in order to get smoother motion 2. Reasons: To set the parallelism between the 2 screw rods and the 2 guiding pins for Z motion. Horizontal waves appearing on printed objects can be improved by doing so. This function will result in 3 full nozzle circles up and down;...
