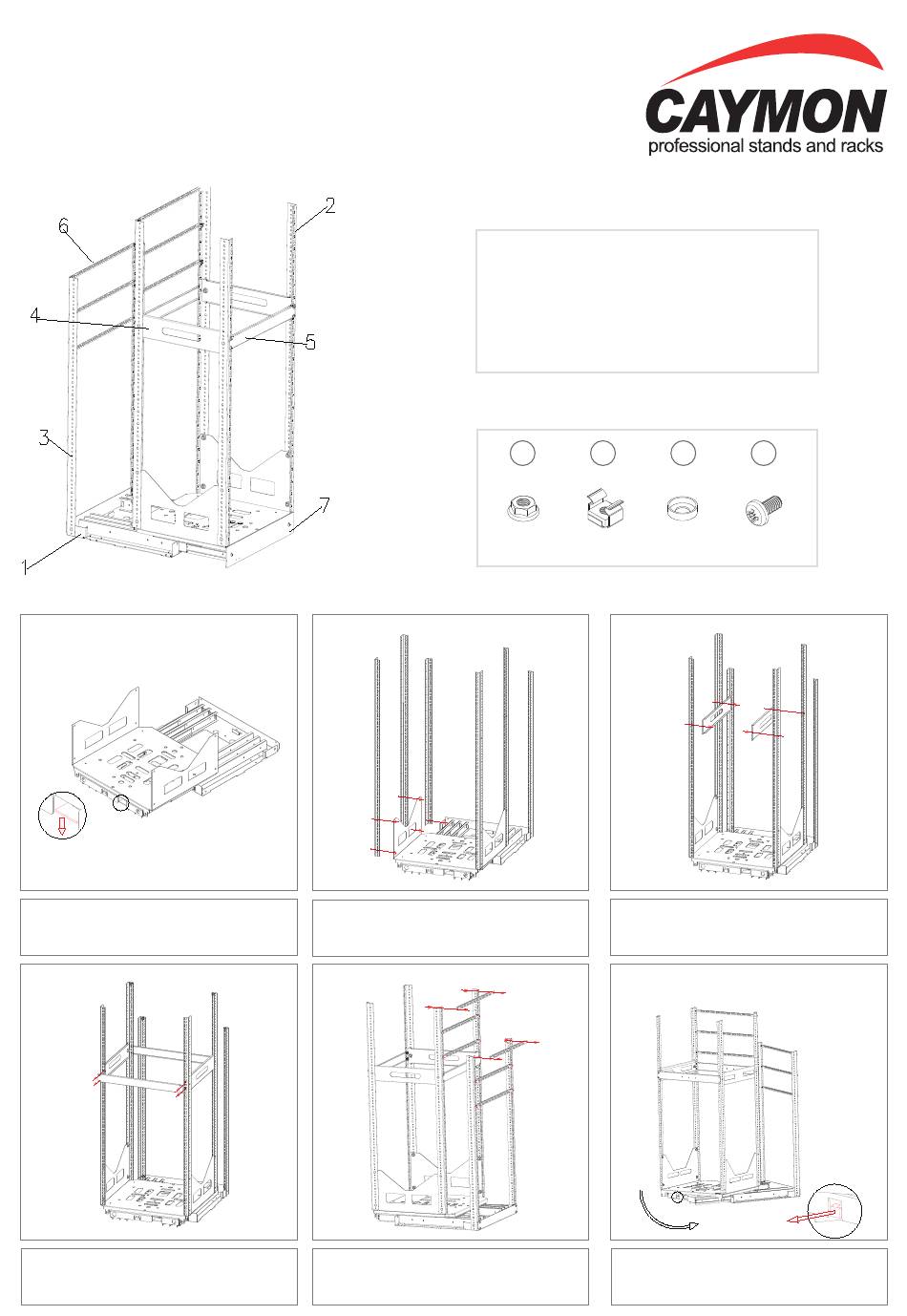

INSTALLATION MANUAL
GPR SERIES

STEP 1

Extract the slide-out platform from the base
by pressing the locking tab downwards and
pulling it.

STEP 4

Install the 19" 1U blind panels on the front
and rear side using 8 x M6 cage nuts and M6
x 12 pan head screws.

PARTS LIST

1) Rotating rack base (1x)
2) Front & rear rack mounting rails (4x)
3) Base rack mounting rails (2x)
4) Front & rear connection panel (2x)
5) 19" 1U blind panel (2x)
6) Cable lacing bars (6x)
7) Front lock cover panel (1x)

ACCESSORIES

STEP 2

Install the vertical front (4x) and rear (2x)
vertical rails to the base using M8 hex flange
nuts (10x).

STEP 5

Install the cable lacing bars on the rear verti-
cal rails and base vertical rails using 12 x M6
cage nuts and M6 x 12 pan head screws.
1
2
3
M8
M6
x14
x20
x20

STEP 3

Install both front & rear connection panels
using M8 hex flange nuts (4x).

STEP 6

Pull out the lock from the slide-out platform
to rotate the platform. It can be locked in 45°
and 90° position.
4
M6x12
x22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for CAYMON GPR Series

  • Page 1 INSTALLATION MANUAL GPR SERIES PARTS LIST 1) Rotating rack base (1x) 2) Front & rear rack mounting rails (4x) 3) Base rack mounting rails (2x) 4) Front & rear connection panel (2x) 5) 19” 1U blind panel (2x) 6) Cable lacing bars (6x)
  • Page 2 INSTALLATION MANUAL GPR SERIES STEP 7 STEP 8 STEP 9 Install the equipment into the rack, wire it up Assemble the front lock cover panel to se- The rack is now well installed and ready for and push the slide out platform back into the cure the slide out platform to the base and use.
