User manual for Hose safety Catch

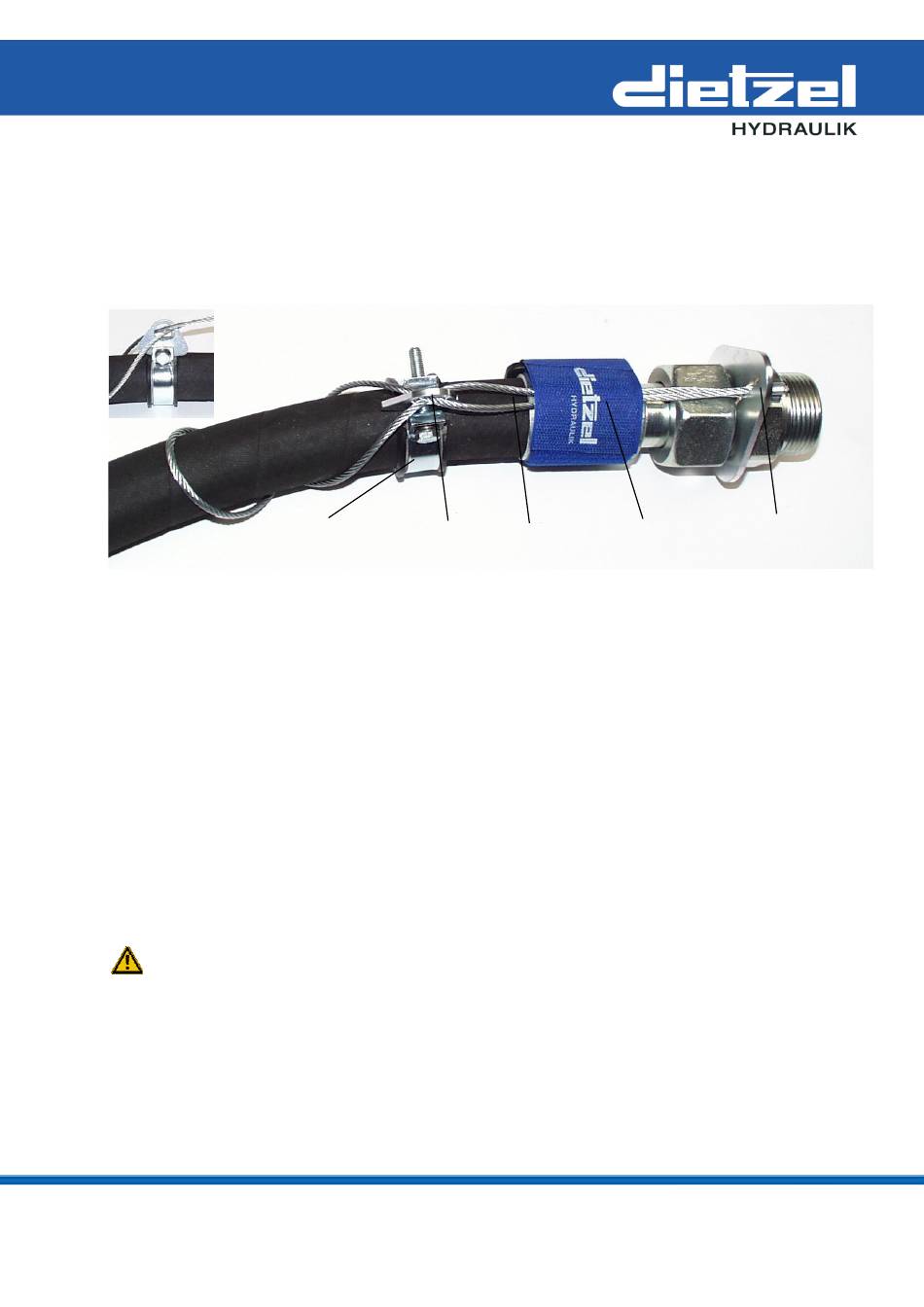

Components
Hose clamp (with
elastomer insert))
Description of function
In the event that the connection between the hose and the fitting comes loose under pressure, the
hose safety wire prevents the hose from throwing (whipping) because the catch wire tightens under
tension. The length of the catch wire is to be laid out so that the hose can slide out of the fitting
(pressure release).
Application/Conditions of use
The hose safety catch has been developed and tested with reference to the following standards:
DIN EN 853, DIN EN 856, EN 857, SAE J517
DIN 2353, SAE J518
These contain references to hoses and fittings.
Minimum lengths of hose when fitted both sides (left/right) of the catch:
Hose nominal diamters DN 06 to 31:
It is essential to ensure that the use complies with these standards. Guarantee claims are invalid
when these assembly instructions are not complied with. The maximum operating pressure of the
hose must not be exceeded. In case of use at higher operating pressures, no liability will be
accepted for sufficient strength of the system.
Dipl. Ing. K. Dietzel GmbH
Leedenstraße 10
04626 Beerwalde
Wire
guide
600 mm
DN 38 to 51:
700 mm
DN 60 to 76:
1000 mm
Phone: +49 (36602) 140-0
Mail: info@dietzel-hydraulik.de
www.dietzel-hydraulik.de
Catch
Velcro
wire
strap
Page 1 of 4
Revised as of: 03/2014
Nicky Groß
Fixing
bracket
Advertisement
Table of Contents
Summary of Contents for dietzel HYDRAULIK Hose safety Catch
- Page 1 The length of the catch wire is to be laid out so that the hose can slide out of the fitting (pressure release). Application/Conditions of use The hose safety catch has been developed and tested with reference to the following standards: DIN EN 853, DIN EN 856, EN 857, SAE J517 DIN 2353, SAE J518 These contain references to hoses and fittings.
- Page 2 Please note the following for the use of the hose safety catch in an environment subject to risk of fire or explosion: The hose safety catch components are made of metallic material. Die risk of sparking is very low, but generally given.
- Page 3 Fig. 7 Fig. 8 Fig. 9 Operational safety noticesSicherheitshinweise für den Betrieb When assembling the hose safety catch onto hoses which move Rubbing or grazing to the skin through safety components • • Pinching of hands (fingers) through the changing position of the wire Practice increased caution in the danger area.
- Page 4 In case of damage to individual parts, the entire hose safety catch must be replaced. The same applies when the safety catch comes into action after the failure of a hose connection.
