Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly. In
the event of product failure within it´s intended use over the course of
the first 3 years after date of purchase, we will remedy the problem as
quickly as possible once it has been brought to our attention. In the
unlikely event of such an occurrenece, or if you require any information
about the product, please contact us via our helpline support services,
details of which are to be found both in this manual and on the product
itself.
PRODUCED IN CHINA FOR:
ALDI STORES LTD., PO BOX 26, ATHERSTONE,
WARWICKSHIRE, CV9 2SH.
ALDI STORES (IRELAND) LTD.
PO BOX 726, NAAS, CO. KILDARE.
Visit us at www.aldi.com
3
AFTER SALES SUPPORT
00800 4003 4003
service.GB@scheppach.com
MODEL: MIX125 PRODUCT CODE: 703353 08/2020
CONCRETE MIXER
Vers.No. 200225
Original instructions
Contents
04
05
06
07
10
11
12
12
13
13
15
16
17
18
18
19
19
22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for FERREX MIX125
-
Page 1: Table Of Contents
Storage and transport ALDI STORES (IRELAND) LTD. Disposal and recycling PO BOX 726, NAAS, CO. KILDARE. Declaration of conformity Visit us at www.aldi.com AFTER SALES SUPPORT 00800 4003 4003 service.GB@scheppach.com Vers.No. 200225 MODEL: MIX125 PRODUCT CODE: 703353 08/2020 Original instructions... -
Page 2: Overview
Overview Utilisation Pack contents/parts Fig. 1 Fig. 2 Pack contents/parts Fig. 3 (A) Fig. 4 (B) Fig. 5 (C) Concrete Mixer Fig. 6 (D) Supporting stand front (with handle) Fig. 7 (E) Motor casing Fig. 8 (F) Frame Fig. 9 (G) Swivel wheel Drum upper section Fig. -
Page 3: Handling Pictures
Fig. 5 Fig. 6 Accessory bag (C) Accessory bag (D) Fig. 7 Fig. 8 Accessory bag (E) Accessory bag (F) - Page 4 Fig. 9 Fig. 10 Accessory bag (G) Accessory bag (H) Fig. 11 Accessory bag (I)
- Page 5 Fig. 12 Loading/Mixing Position For Mortar For Concrete Emptying Position Storage Position Fig. 13...
-
Page 6: Explanation Of Symbols
Explanation of symbols Explanation of symbols Read the operating instructions to reduce the risk of injury. Wear safety goggles. Wear ear defenders. The impact of noise can cause damage to hearing. Wear a dust mask. Wear safety shoes. Wear gloves. Do not put your hands into the moving drum! Place the concrete mixer horizontally on even and firm ground! Keep unauthorised persons and children away from the device! -
Page 7: Introduction
Introduction I. Introduction Congratulations on choosing to buy a FERREX product. ® All products brought to you by FERREX are manufactured to the highest standards of per- ® formance and safety, and as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. -
Page 8: Layout

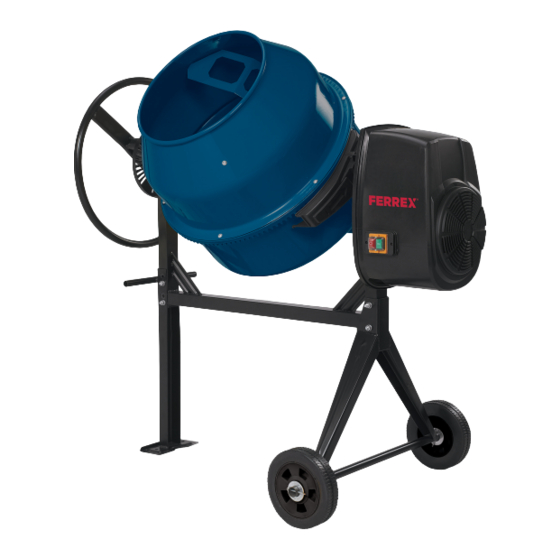

Layout/ Scope of delivery II. Layout (Fig. 1) 1. Supporting stand, front (with handle) 2. Motor casing 3. Frame 4. Swivel wheel 5. Drum upper section 6. Bearing bracket 7. Drum lower section 8. Instruction manual 9. Mixer 10. Mounting material 11. -
Page 9: Intended Use
Intended use/ Safety instructions IV. Intended use • This concrete mixer can be used for mixing concrete and mortar both professionally and non-professionally. • Proper use includes adherence to the operating, maintenance and repair instructions of the manufacturer and observance of the safety instructions they contain. •... - Page 10 Safety instructions • Be absolutely sure to pull the plug before: - moving or transport - cleaning, maintenance or repair work - eliminating faults - checking connecting lines, whether these are knotted or damaged - leaving unattended (even during short interruptions) •...
-
Page 11: Technical Data
Safety instructions/Technical data Residual risks Even if used properly, residual risks can exist even if the relevant safety regulations are com- plied with due to the design determined by the intended purpose. Residual risks can be minimised if the “Safety instructions” and the “Intended use” as well as the whole of the operating instructions are observed. -
Page 12: Assembly
Assembly Assembly • Only use appliances which are in perfect working order. • Service and clean the appliance regularly. • Adapt your working style to suit the appliance. • Do not overload the appliance. Rated capacity of drum is 64l. •... -
Page 13: Operation
Assembly / Operation 7. Installing lock plate Fig.9 (Accessory bag G) Install locking plate (13) with 2 M8x25 hexagon bolts, 2 washers, 2 lockwashers on the swivel axis and tighten. 8. Installing swivel wheel Fig.10 (Accessory bag H) Insert the solid washer and spring into the tube on the tipping wheel. Slide the wheel over the larger diameter shaft until the holes in the bracket line up with the hole drilled. -
Page 14: Cleaning And Maintenance
Kapitelüberschrift Cleaning and Maintenance / Troubleshooting m ATTENTION! Risk of moving parts. • Swivel the drum in the downward direction to empty it. • Ensure that there is an adequate container under the drum (e.g., wheelbarrow). • Ensure that no mixture falls on the ground. IX. -
Page 15: Storage And Transport
Storage and transport/Disposal and recycling XI. Storage and transport Storage In order to increase the service life of the concrete mixer and operate it without glitches, the rotating mechanism should be treated with an environmentally compatible spray oil before the mixer is put into storage for unusually long periods. Transport m ATTENTION! Never transport the machine while its running. -
Page 18: Declaration Of Conformity
EU-irányelv és a vonatkozó szabványok szerinti következo megfeleloségi nyilatkozatot teszi a termékre izjavlja sledeco skladnost z EU-direktivo in normami za artikel Marke / Brand: FERREX CONCRETE MIXER - MIX125 Art.-Bezeichnung / Article name: 703353 Art.-Nr. / Art. no.: 2014/30/EU...
