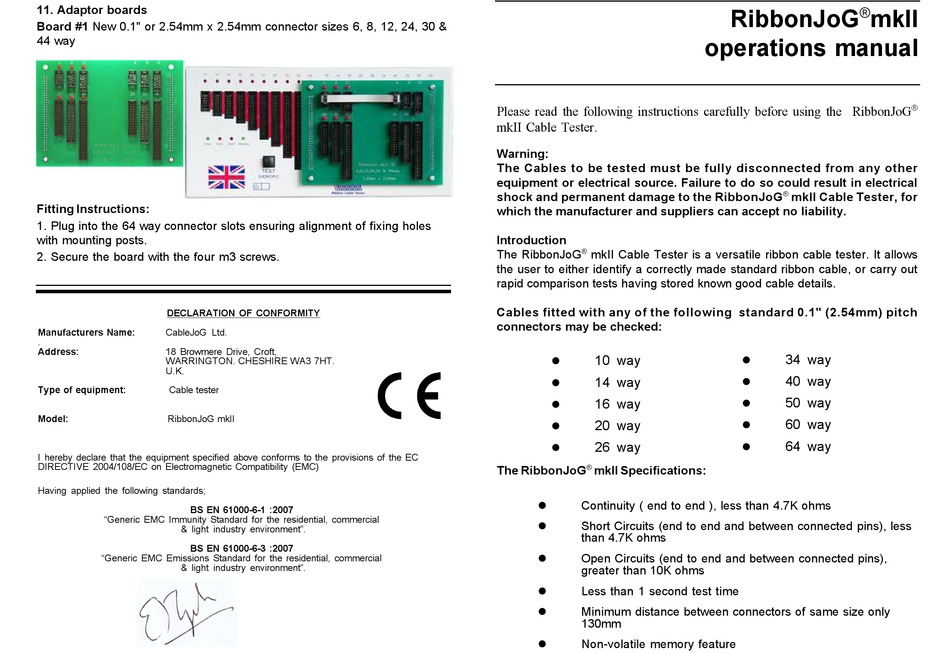

RibbonJoG Mk II Operation Manual

11. Adaptor boards

Board #1 New 0.1" or 2.54mm x 2.54mm connector sizes 6, 8, 12, 24, 30 &
44 way

Fitting Instructions:

1. Plug into the 64 way connector slots ensuring alignment of fixing holes
with mounting posts.
2. Secure the board with the four m3 screws.

DECLARATION OF CONFORMITY

Manufacturers Name: CableJoG Ltd.
.
Address: 18 Browmere Drive, Croft,
WARRINGTON. CHESHIRE WA3 7HT.
U.K.
Type of equipment: Cable tester
Model: RibbonJoG mkII
I hereby declare that the equipment specified above conforms to the provisions of the EC
DIRECTIVE 2004/108/EC on Electromagnetic Compatibility (EMC)
Having applied the following standards;
BS EN 61000-6-1 :2007
"Generic EMC Immunity Standard for the residential, commercial
& light industry environment".
BS EN 61000-6-3 :2007
"Generic EMC Emissions Standard for the residential, commercial
& light industry environment".
Please read the following instructions carefully before using the RibbonJoG
mkII Cable Tester.
Warning:
The Cables to be tested must be fully disconnected from any other
equipment or electrical source. Failure to do so could result in electrical
shock and permanent damage to the RibbonJoG
which the manufacturer and suppliers can accept no liability.

Introduction

®
The RibbonJoG mkII Cable Tester is a versatile ribbon cable tester. It allows
the user to either identify a correctly made standard ribbon cable, or carry out
rapid comparison tests having stored known good cable details.
Cables fitted with any of the following standard 0.1" (2.54mm) pitch
connectors may be checked:
   10 way
   14 way
   16 way
20 way
  
   26 way
®
The RibbonJoG mkII Specifications:
  
Continuity ( end to end ), less than 4.7K ohms
  
Short Circuits (end to end and between connected pins), less
than 4.7K ohms
  
Open Circuits (end to end and between connected pins),
greater than 10K ohms
   Less than 1 second test time
  
Minimum distance between connectors of same size only
130mm
   Non-volatile memory feature
®
RibbonJoG mkII
operations manual
®
mkII Cable Tester, for
34 way
  
   40 way
   50 way
60 way
  
64 way
  
®
