Summary of Contents for Hunan Honggao Electronic Technology HG01
- Page 1 Medical Infrared Thermometer Manual Book Please read this product manual carefully before using this product Chief Manufacturer: Hunan Honggao Electronic Technology Co., Ltd...
-
Page 2: Table Of Contents
Table of Contents 1. Product Name 2. Product Description 3. Technical Parameters 4. Symbol Representation 5. Settings 6. Safe Operation Instructions 7. Battery Replacement 8. Maintenance and precautions 9. Troubleshooting 10. Safety Features 11. EMC 12. Manufacturer Information Last Edited：2020.02.23 Version A0... -
Page 3: Product Name
Product name: Medical infrared thermometer Product Description Model type: HG01 This product measures human body temperature by collecting infrared thermal radiation from human forehead. Its operation is simple and hygienic. Users only need to point the forehead by the probe and press the measurement button to measure body temperature. It is provided for home and medical.The product mainly consists of an infrared temperature sensor, an amplifier circuit, a... -
Page 4: Symbol Representation
Symbol Representation Symbol Representation Ambient environment mode Battery status Type B Equipment Celsius Attention to enclosed files Fahrenheit Symbol Representation Symbol Representation Memory function Forehead mode Voice function Refer to manual book Measured temperature Please throw as it scraps certification certification mark mark... -
Page 5: Safe Operation Instructions
on the beep sound. (“ON” symbol will appear on the screen) or turn off the beep sound (“OFF” symbol will appear on the screen). After you complete any of the above setting, you shall long press the “Setting” button to save. An automatic shutdown will not save your settings. -
Page 6: Troubleshooting
● Keep the inner cavity of the sensor and probe clean, otherwise it will affect the measurement accuracy. ● Cleaning method: 1) Surface cleaning: use a clean soft cloth or cotton swab with a little medical alcohol or water to wipe the dirt;... -
Page 7: Emc
2 Classified by the degree of protection against electric shock: Type B. 3 Classified by the degree of protection against harmful ingress: ordinary equipment. 4 Classified according to the degree of safety used in the case of a mixture of flammable anesthetic gas and air or a mixture of oxygen or nitrous oxide: equipment that is not suitable for use in places with flammable anesthetic gas. - Page 8 Harmonic emission Not applicable G B 17625.1 Voltage fluctuation / flicker Not applicable emission GB 17625.2 Guidance and manufacturer's declaration - electromagnetic immunity Medical infrared thermometer intended for use in the electromagnetic environment specified below, the customer or the user should ensure that it is in this environment of electromagnetic manipulation by: Immunity test IEC 60601 test level Coincidence level...
- Page 9 This distance should be calculated by a formula corresponding to the frequency of the transmitter. Recommended isolation distance: Radio frequency conduction (effective value) applicable GB / T 1762 6 .6 150 kHz to 80 MHz 80MHz to 800 MHz Radio 3 V / m 800 MHz ~2.5 GHz frequency radiation...
- Page 10 Not applicable 0.38 0.73 Not applicable Not applicable Not applicable For the rated maximum output power of the transmitters not listed in the table above, the recommended isolation distance d in meters (m) can be determined using the formula in the corresponding transmitter frequency column, where P is provided by the transmitter manufacturer Transmitter maximum output power in watts ( W ).
-
Page 11: Manufacturer Information
This product is qualified to pass the inspection Product name: Medical infrared thermometer Manufacturer: Hunan Honggao Electronic Technology Co., Ltd. Address : Building 5, Comprehensive Industrial Park, Tenghui Venture Park, Nanxian Economic Development Zone, Yiyang City, Hunan Province...
Need help?
Do you have a question about the HG01 and is the answer not in the manual?
Questions and answers

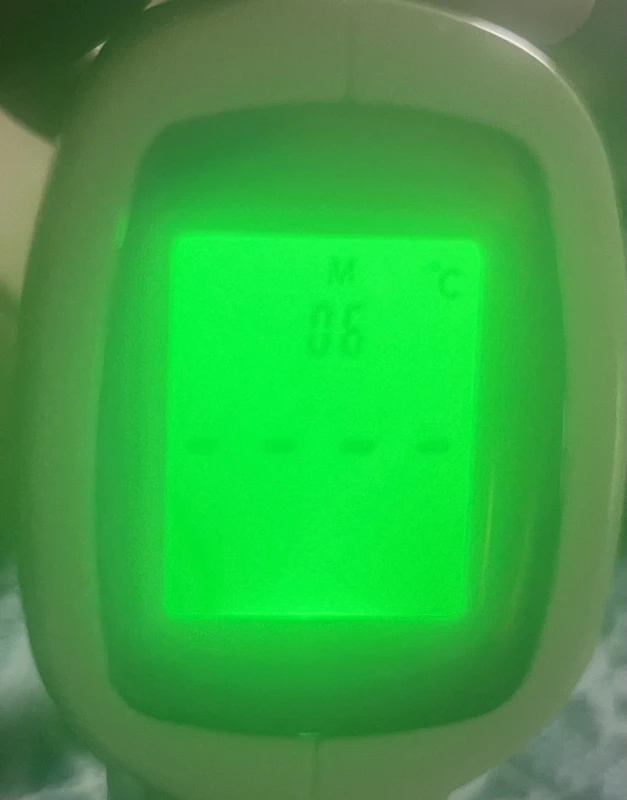

Need help to reset it. Not getting a F or function menu. Settings only takes me to M number menu.
To access the function menu on the Hunan Honggao Electronic Technology HG01:
1. Enter the F3 state (used for high fever warning setting).
2. In F3, press the MEMO key to decrease the value by 0.1°C or the SET key to increase it by 0.1°C.
3. Press the MODE key to confirm the setting and enter the F4 state.
4. In F4, press SET to turn on the screen light or MEMO to turn it off.
5. Press MODE again to return to the test state.
This process allows access to the function menu and settings.
This answer is automatically generated
How do I get it to stay on F?
To keep the Hunan Honggao Electronic Technology HG01 infrared thermometer on F mode, follow these steps:
1. Enter the F3 state.
2. Adjust the high fever warning temperature using the MEMO key (to decrease) or the SET key (to increase).
3. Press the MODE button to confirm the setting and proceed to F4.
4. In the F4 state, press SET to turn on the screen light or MEMO to turn it off.
5. Press MODE to return to the test state.
This will maintain the thermometer in F mode with the desired settings.
This answer is automatically generated
What does it mean when it just comes up “low” when you have a fever?
On the Hunan Honggao Electronic Technology HG01 thermometer, "Lo" indicates that the measured temperature is below the selected measurement range. In Body mode, it means the temperature is below 32.0°C, and in Object mode, it means the temperature is below 100°C.
This answer is automatically generated
