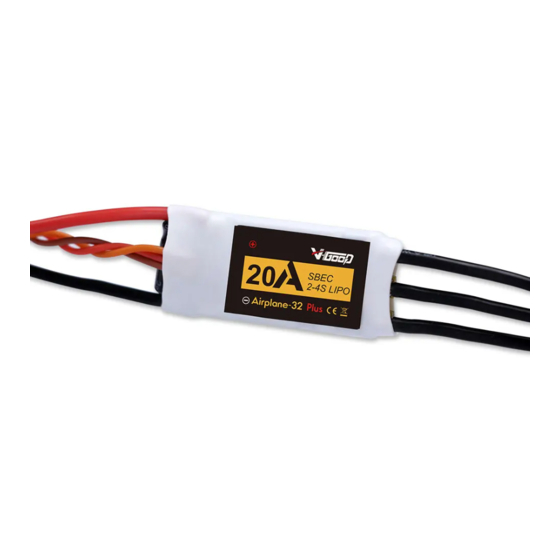

VGOOD Airplane-32 Series ESC Manual

Introduction:

Thank you for purchasing V-GOOD Airplane-32 ESC product!

Brushless power systems can be very dangerous. Any improperuse may cause personal injury

and damage to the product andrelated devices. We strongly recommend reading through this

user manual before use.

Because we have no control over theuse, installation, or maintenance of this product, no liabil

itymay be assumed for any damage or losses resulting from theuse of the product. We do not

assume responsibility for anylosses caused by unauthorized modifications to our product.For t

he latest specifications, please visit the company website: www.vgoodrc.com

1.32 bit ARM MCU, small size, light weight and rapid running speed.

2. High resolution, smooth and responsive throttle linear. Throttle signal loss protect

implemented.

3. Synchronous rectification, regenerative braking, more energy-efficient compared with the

other regular ESCs.

4. Automatically detect input signal. Throttle is available for setting to compatible with

different controllers.

5. Good compatibility to motors, it can work well for most motors in the market.

6. Easy to program with prog-card, specially designed for fixed wing, complete independent

intellectual property rights with software and can keep on upgrading.

1. Support 6A-150A, 2- 8S (Please check ESC sticker to verify the specified cells and power,

more high voltage items to be added)

2. PWM output frequency range is 8-24KHz. Different PWM frequency can be set by

programming card.

3. Regular throttle range is: 900us~2400us

4. Max RPM: 300,000 rolls (2poles), 100,000 rolls (6poles), 50,000 rolls (12poles).

5. Customized settings can be done with prog-card and controller (Brake/Non Brake).

6. 60A and above supports adjustable temperature protection

7. It supports setting motor forward/Backward by prog-card.

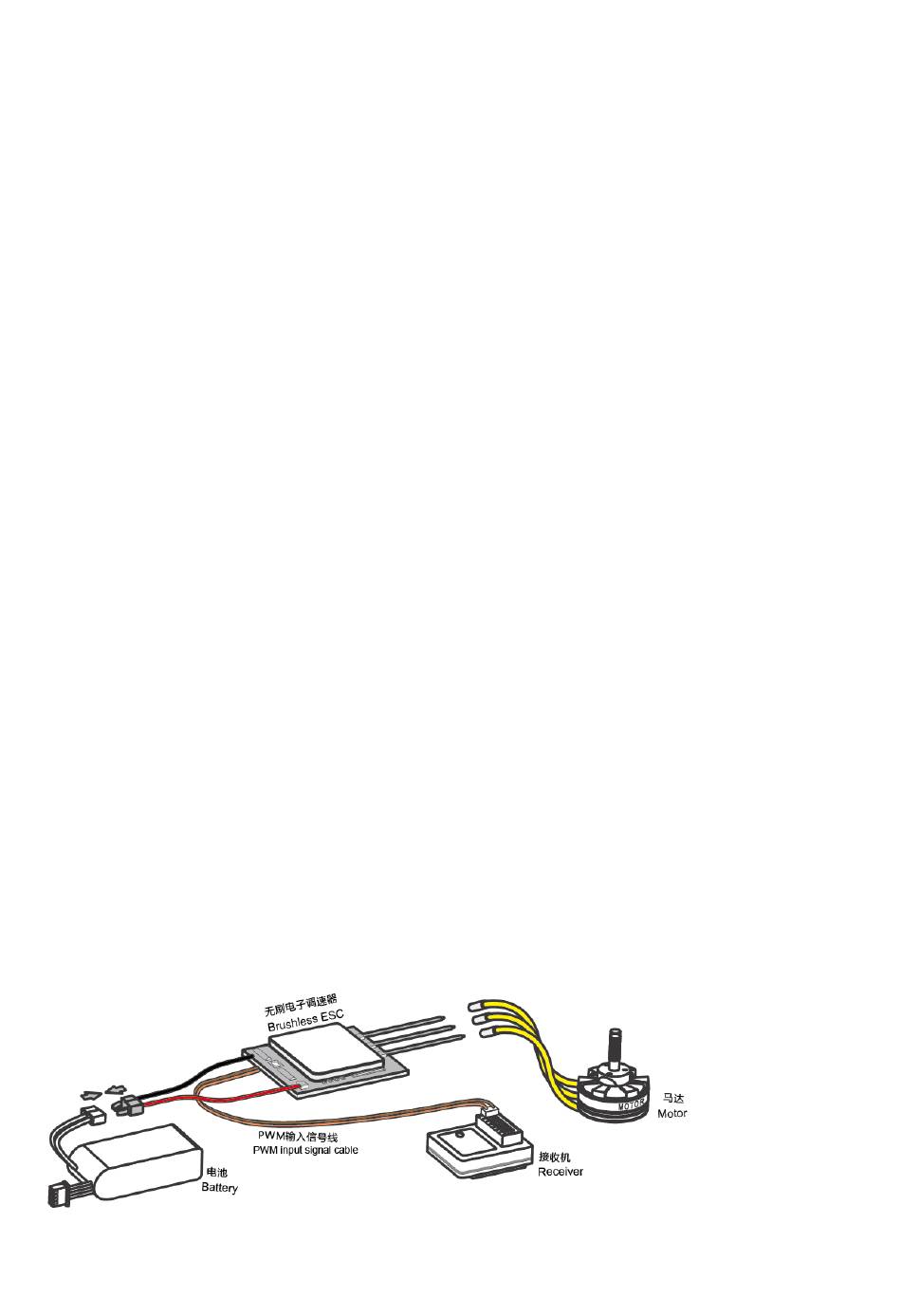

Connection Diagram:

Table of Contents

Do you have a question about the Airplane-32 Series and is the answer not in the manual?

Page 1 VGOOD Airplane-32 Series ESC Manual Introduction: Thank you for purchasing V-GOOD Airplane-32 ESC product! Brushless power systems can be very dangerous. Any improperuse may cause personal injury and damage to the product andrelated devices. We strongly recommend reading through this user manual before use.
Page 2 Operation: 1. Throttle Calibration: Please set throttle when the first time to use the ESC. Step: 1-Startup controller and push stick at highest throttle position. Step: 2-Power on ESC, motor beeps “♪♪”, means high throttle set ok; Step:3- Push stick to the lowest position, motor beeps “♪♪” means low throttle is detected, then another “♪♪”...
Page 3 Safety points: Due to brushless power system is powerful, improper using may cause the personal injury and device damage. Please strictly follow the instructions to operate. 1. Please don't operate long time with the battery under-voltage. lt will reduce the battery usage life and ESC working efficiency.
