Wireless doorbell
User Guide
Congratulations on your purchase of our product. To ensure
proper use and trouble-free operation, please carefully read this
user guide first.
Introduction

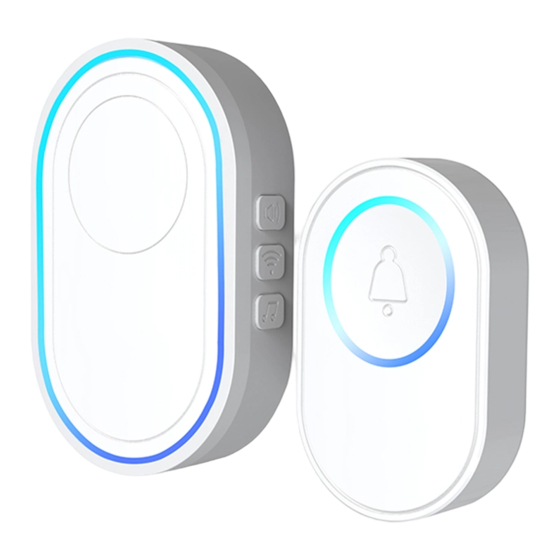

This product is a modern and stylish wireless doorbell with 58
melodies, 5 volume levels and light ring. It can be expanded with
multiple receivers and be set the independent ring tones for each
transmitter, and remembers your last-set melody and volume level
after a power outage.The transmitter uses a CR2032 lithium battery
which has an ultra long five-year lifespan.
Advertisement
Table of Contents
Summary of Contents for SMARTROL Wireless doorbell
- Page 1 Introduction This product is a modern and stylish wireless doorbell with 58 melodies, 5 volume levels and light ring. It can be expanded with multiple receivers and be set the independent ring tones for each transmitter, and remembers your last-set melody and volume level after a power outage.The transmitter uses a CR2032 lithium battery...
- Page 2 In The Box Doorbell/Receiver x1 Push Button/Transmitter x1 (CR2032 battery and insulating film included) Push Button Mounting Adhesive Pad x1 User Guide x1 At a Glance Doorbell Volume button Pairing/Reset /Music up button Music down button Light ring AC plug Push button Light ring Tamper switch...
- Page 3 Installation Before installation, please test the doorbell button range first. It is not advised to mount the transmitter onto metal surfaces as the material can block RF signals between the transmitter and the receiver. Plug the receiver into the socket. Peel the insulating film from the battery to power the transmitter on.
- Page 4 Volume Adjustment Press the Volume Button to adjust the volume level of ringtone from highest to mute, then skip to highest. Changing Melody You need to pair the transmitter again if you want to change the chime tone. Please refer to Pairing. Reset /Deleting Transmitters This process resets the receiver to...
- Page 5 Specifications Doorbell Power Supply: 110/220VAC Consumption: <5mA @Standby Radio Frequency: 433Mhz Selectable Melodies: 58 Volume Levels: 5(mute included) Sound Level(typical): 85dBA Expandable: up to 100 receivers Operation Temperature: -10~55℃ Push Button Power Supply: DC 3V (CR2032 Lithium Battery x1) Standby Current: <5uA Transmitting Distance: <80m (Without obstacles and no Interference) Radio Frequency: 433Mhz Operation Temperature: -10~55℃...
- Page 6 Index Melody Index Melody Yesterday Once More Malia Clock & Cucloo Toy soldier marches Cuckoo Waltz Ode an die Freude Class Ring Eva's Polka Everything Is Better Rondo a capriccio Dreamtable-The dawn Hungarian Dance Turkish March Minuet in G Major Alarm Auld Lang Syne The Nutcracket - Chinese...
