1M2M ED 16 Series Installation Manual

1M2M Click
Installation manual click version
Contents (see image 1):
1x ED16xx PCB, packed in an antistatic bag and stickers with the DEVEUI number and SIGFOX ID
1x small bag of Silica gel (do not open).
1x Batterypack (blue or black)
1x Enclosure (1 cover, 1 bottom and 1 click mounting plate)
1x Rubber seal (pre-mounted on the cover, only on non-vented covers)
There are different versions of the cover (Click Small, Click Large, Click Vented), all three are mounted the same
way, the only difference is that de vented cover does not need a rubber seal.
Assembly instructions:
1. Open the antistatic bag and put the DEVEUI/SIGFOX stickers on the
enclosure where it is legible.
2. Connect the battery as pictured (Image 2A for ED1608, Image 2B for
ED1610).
Note: please do this carefully and in the correct connector (J1).
Check: you will see a LED blink on the PCB.
3. Put the ED16xx PCB together with the battery pack in the enclosure.
Be sure the battery connector is facing up and towards the lid.
The PCB will fit into the two slits on the inside of the enclosure.
Check: on the top of the enclosure you will see the LED blink.
ED16xx
Installation manual 1M2M Click 17-04-2020 Page 1 of 3

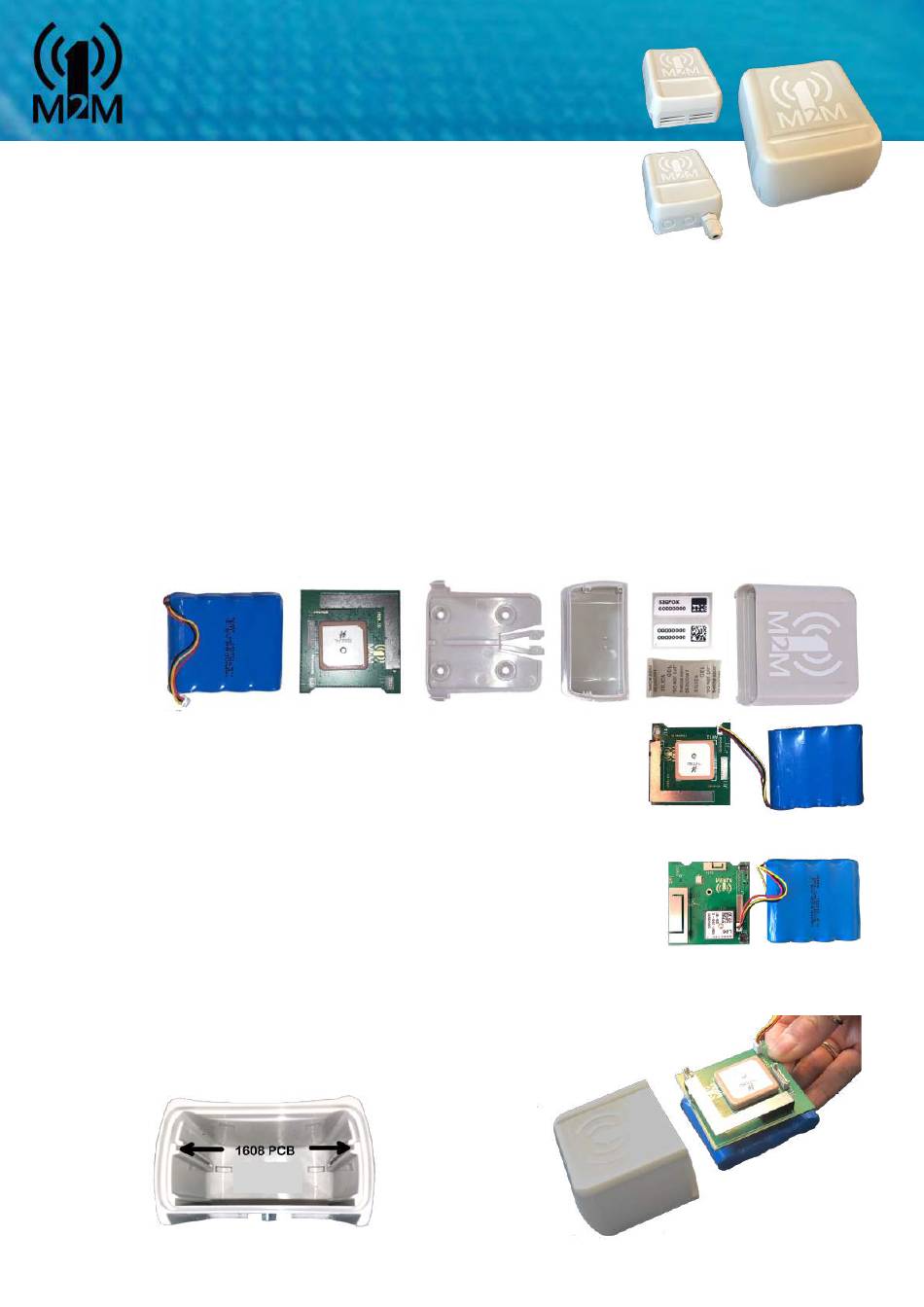

Image 1
