Summary of Contents for OHC Motors Intelligence

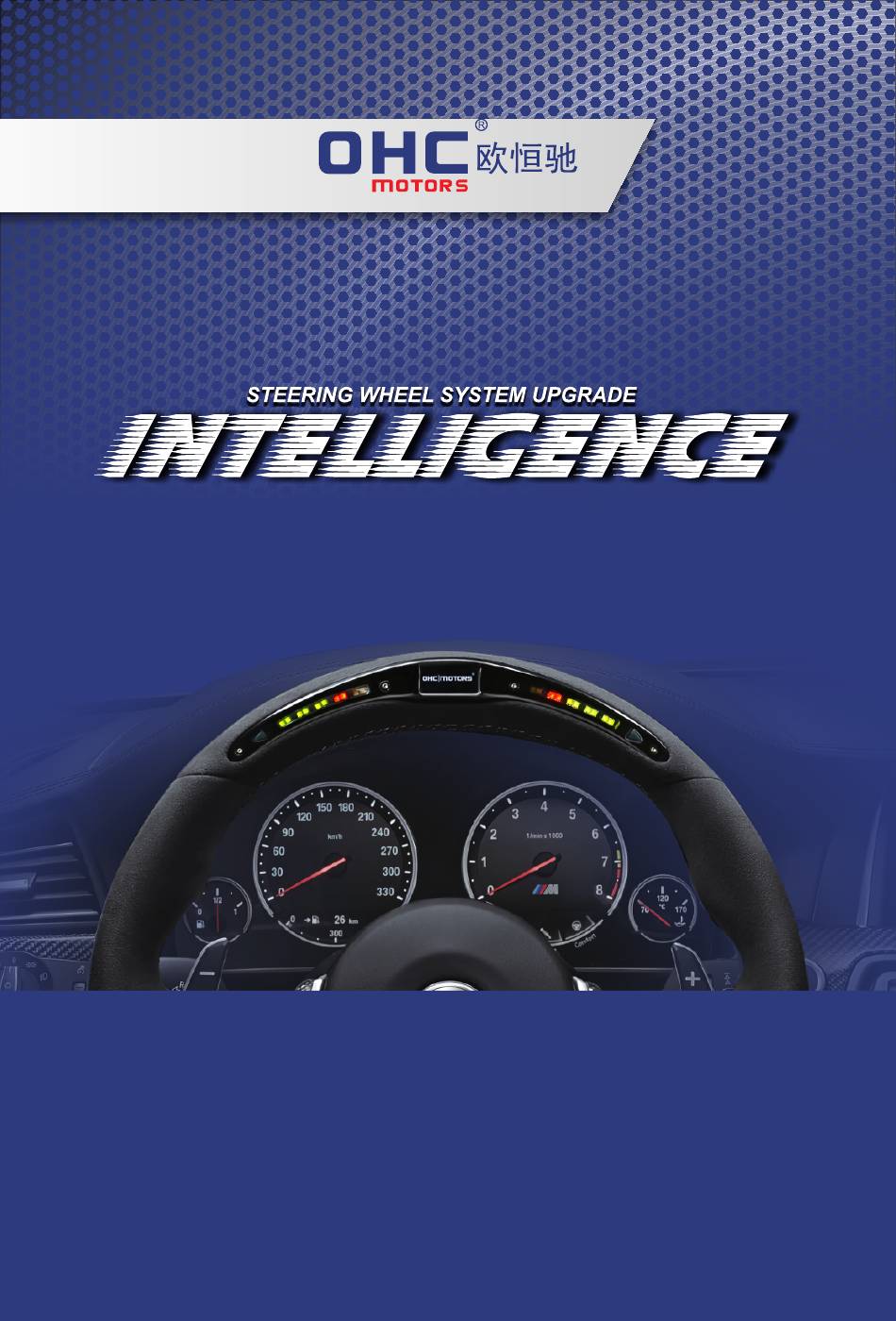

- Page 1 Instruction Book Please read the instruction manual carefully before use and take good care of it. If you do not understand the product and after-sale service, please contact the local sales department for consultation! Thank you for using our company's xx steering wheel heating system.
- Page 2 Preface Thanks for your choosing of our steering wheel LED system. With the improvement of social life and technologies, people have higher requirements on life’s quality, especially the requirements on higher standard to motors, and the pursuit of comfortableness and safety have been put forward to the schedule.
-
Page 3: Table Of Contents
Contents 1. Products Introduction Appearance instructions Display and Operation Function Map Navigation Instructions Technological Parameters Main Functions Products Feature Matching Actions 2. Instructions ED Model Functions Oil Consumption RPM/Vehicle Speed Engine Load Rate/Vehicle Voltage Water Temperature/Oil Temperature Oil Remaining Endurance Mileage Turbocharging LED Switching Functions Racing Model Functions... -
Page 4: Products Introduction
Product Introduction I. Appearance instructions 1. Display and Operation left L controller LED light displayer right R controller There is a short-pressing button and a long-pressing button. Long pressing means press the L or R more than 2s. When dual-clicking, you must press the second time within 2s. -
Page 5: Function Map
Product Introduction II. Function Map Main Menu RK键 RK键 RK键 RK键 LK键 LK键 LK键 LK键 ED MODEL LED Switches Racing MODEL Setting MODEL LL键 RL键 LL键 RL键 LL键 RL键 LL键 RL键 Functions light Oil Consumption LAP-model LED opening by second Lk键... -
Page 6: Navigation Instructions
Product Introduction III. Navigation Instructions Main Menu There are mainly four menus: ED/LED/racing/setting, choosing the related function in the menu by LK or RK. At this time there will be larger marks and related functions. By RL, you can obtain the related expected menu. Functional Unit In the functional menu, you can get the individual function menu by LK, and jumping to the first one from the last one. -
Page 7: Technological Parameters
Product Introduction II. Technical Parameters Working Voltage 12V-16V Working Current main part<40mA/ displayer<25mA Quiescent Current -40℃~+85℃ Applicable Temperature Working Frequency 2.4GHz Sensing Distance IV. Product Features III. Main Functions 1. Fuel consumption details 1. New design, non-broken 2. Perception of steering wheel angle allocation 3. -
Page 8: Instructions
Product Introduction I. ED Model Function ED model provides different functions for supporting the fuel-using priority. There are 10 functional units in ED model in total, and these units can be controlled by LK button. Furthermore, LED provides visual help for drivers to master the vehicle information better. -
Page 9: Rpm/Vehicle Speed
Product Introduction [b] oil using The oil using can be expressed as each country, and you can see the details in the chapter of setting up model. Pressing RL,it can be switched between timely oil using and average one. Timely Oil Using Timely oil using is a 10km distance for moving average, and it is updated per 100m. -
Page 10: Water Temperature/Oil Temperature
Product Introduction It timely shows the engine load rate so that to control the vehicle model. After closing the system, these date will be cleared off. Water Temperature/Oil Temperature water temperature mark 80℃ water temperature oil temperature 100℃ oil temperature mark It timely shows the water temperature and oil temperature so that to control the vehicle model. -
Page 11: Turbocharging
Product Introduction It timely shows the endurance mileage so that to control the vehicle model. After closing the system, these date will be cleared off. Turbocharging pressure turbocharging mark It timely shows the turbocharging so that to control the vehicle model. fter closing the system, these date will be cleared off. -
Page 12: Racing Model Functions
Product Introduction III. Racing Model Function Racing model provides special functions for racing road. It cannot be used to the unsuitable roads. Drivers have the responsibility to drive in a suitable way. You cannot try dangerous driving way or it may be accidents. Racing model functions cannot be used in public roads. -
Page 13: Accelerometer Per Hundred Kilometers(Reserved)
Product Introduction 01km 00:52'03 Pressing RK, you can count on the time and distance for the first round. The time is is lasting 3s. During this time, the timer operates in the backstage. After 3s, it shows the time of second round from 0. 11km 01:02'03 Pressing RK, you can count on the time and distance for the second round. -
Page 14: Setting Mode Functions
Product Introduction IV. Setting Up Model Functions Setting up model is used to choose the LED and the individual setting up. Under the setting up model, you can press LK and RK to control, like checking in the form, which will show the mark of reversing. Due to the7 control menus, there are two showing menus,1-4 and 5-7. -
Page 15: Speed Unit
Product Introduction In order to decrease the luminance of displayer or LED, or you want to increase the luminance of displayer or LED, please press RK. For saving your choice, please press LL. when decreasing the luminance, you should close the displayer, so you must press LL and RL at the same time at least 2s. -
Page 16: Speed Switching Limiting Value
Product Introduction Over the valve, the indicating light will shine and warn you the possible over-heating for the engine, matter what the contents are. Pressing LL to save the setting up and come back to the main menu. Pressing RL to choose oil box mark Pressing LK or RK to choose function, transferring EC US UK JP from every items. -
Page 17: Time Recording Choosing
Product Introduction The arrangements of LED are as follow: [1] LED in 50%-60%(green) [4] LED in 80%-90%(yellow) [2] LED in 60%-70%(green) [5] LED in 90%-100%(red) [3] LED in 70%-80%(yellow) 这此值为已设置的切换极限值.在达到100%的转速界限值后所有LED闪红色, 这时应执行切换过程. Time-recording Model Choose If necessary, you can measure the time by hand or measure by toucher Pressing RL to choose second mark Pressing RL to choose second mark [1] M=measure by hand... -
Page 18: Frequently Questions And Answers
Pressing LL to save the setting up and come back to the main menu Common Questions and Answers The light doesn’t work? Cannot be handle after allocation? [1]checking the opening of ACC [1] checking the current /ACC [2] checking the connection [2]checking the connection [3] checking the matching of main land and [3]checking the matching of them... -
Page 19: Warranty Services And Policies
Warranty Services and Policies I. Warranty Policies Thanks for your purchasing, under the normal using, you can enjoy the three guarantees. From the day of your purchasing, if there is any quality problem, you can have the following warranty services: 1. - Page 20 Guangzhou OHC Electronic Science and Technology Co., Ltd Add: Longshan Industrial D, 260 Yinglong Road, Tianhe District, Guangzhou Website: www.ohcmotors.com Mob: 020-87632885/87639693...
- Page 21 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
