1. Introduction

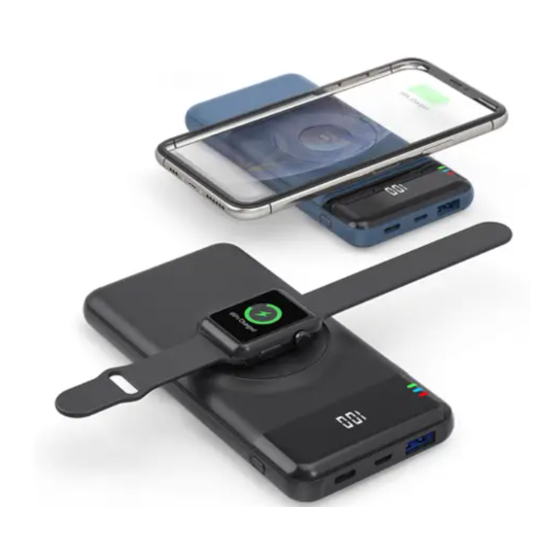

The product with PD,QC3.0 and wireless function, support Apple Watch wireless
charging.It's our company's private model, with appearance patent, built-in high
capacity battery. It uses intelligent MCU control to achieve fast charging of mobile
phones by adjusting different output voltages and currents. Support wireless charging
at the same time
2. Product information
Input
Output
Material
Battery
Capacity
Net weight
Size
Use temperature
Transport
&
Storage
temperatures
H100BWAUser Manual
Lightning: 5V/2A，9V/2A
Type-C:5V/3A，9V/2A
Wireless charge: 15W/10W/7.5W/5W
Wireless For Watch: 5V/300mA
USB-A:5V/3A, 9V/2.22A,12V/1.5A
Type-C: 5V/3A, 9V/2.22A,12V/1.5A
ABS+PC
Polymer lithium battery
10000mAh
226g
145*70.5*17.4mm
0-45℃
-20～50℃

Advertisement

loading
Need help?

Need help?

Do you have a question about the H100BWA and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Angel H100BWA

  • Page 1 H100BWAUser Manual 1. Introduction The product with PD,QC3.0 and wireless function, support Apple Watch wireless charging.It’s our company’s private model, with appearance patent, built-in high capacity battery. It uses intelligent MCU control to achieve fast charging of mobile phones by adjusting different output voltages and currents. Support wireless charging at the same time 2.
  • Page 2 3. Product Sketches Wireless sensor area Wireless chargingLED indicator Fast charge, Digital Power indicator USB output interface Power switch Type-C input/ output interface Lightning input interface 4. Methods of use 1). Wireless charging Part Afterpressing the power to open the key, the wireless charging function starts, the red LED flashes, the mobile phone with wireless function is placed on the wireless charging area, the Blue LED light up,and the cell phone displays the charging identifier.
  • Page 3 After long pressing the power to open the key, the Low- Voltage wireless charging function for Apple Watch starts, the red LED light up, the Apple Watch is placed on the wireless charging area, the red LED light up always,and the Apple Watch displays the charging identifier.
  • Page 4 DC input for this product The data line Lightning / Type-C end up the input interface, the other end is connected with the QC 3.0 or PD type adapter to charge the product, the Green LED light up, the fast charge function start.
  • Page 5                                                                                  ...
