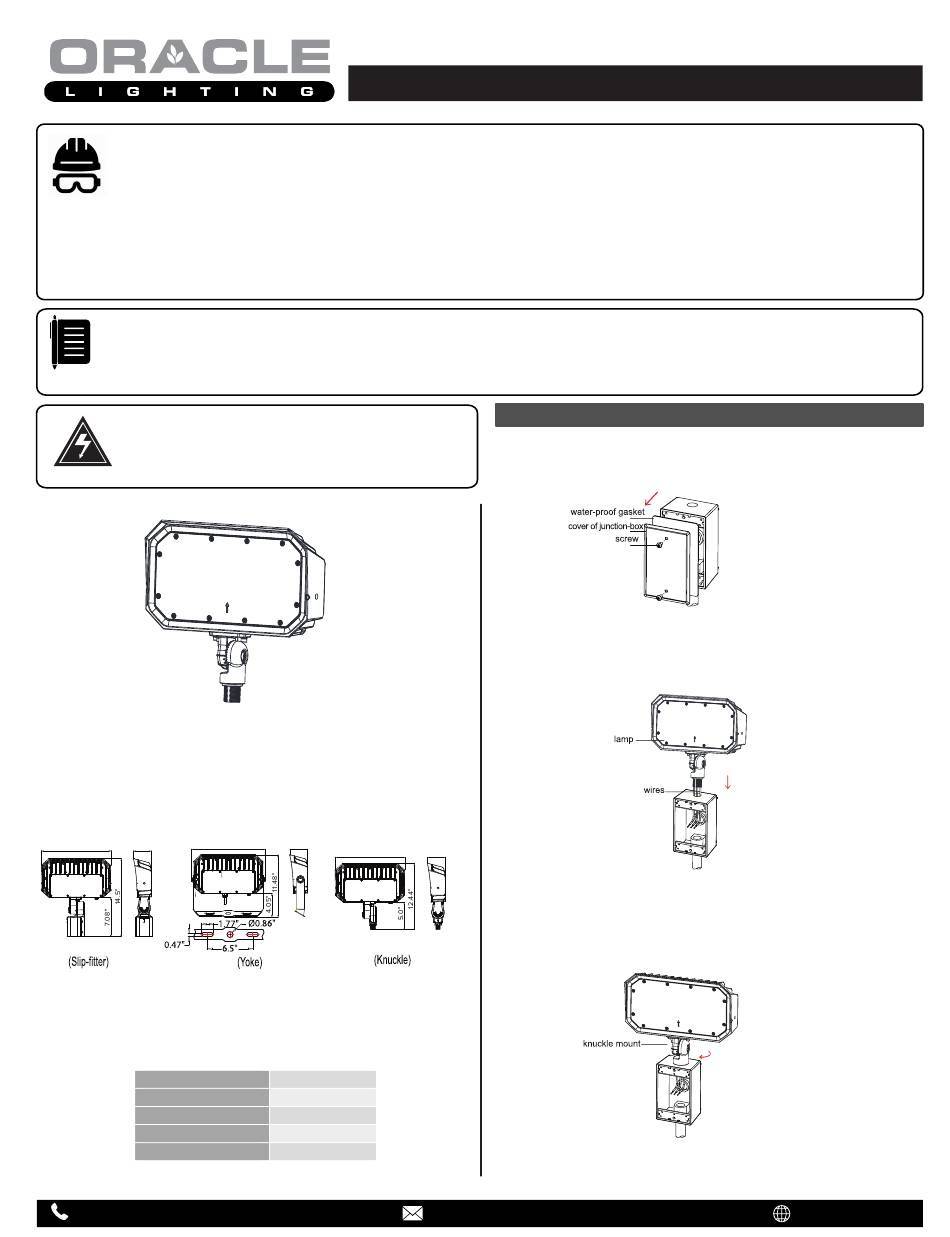

SAFETY INSTRUCTIONS
1. Equipment should be mounted securely in locations and at heights where it will not be readily subjected to tampering by
unauthorized personnel. 2. Do not mount near gas or electric heaters. 3. Cap unused wires with enclosed wire nuts or other approved
method. 4. Do not use this equipment for anything other than its intended use. 5. The use of accessory equipment not recommended
by the manufacturer will void product listing and warranty and may cause an unsafe condition. 6. Any service on this equipment should be
performed by qualified personnel only. 7. Make sure wire terminations are secure and leads are properly tucked in appropriate wire channels.
8. Damaged by corrosion will not be honored as a materials defect claim. It is the user's responsibility to provide suitable protection against
corrosive agents such as moisture and condensation and other harmful elements. 9. Electrical connection should be in a dry area unless
adequately sealed. CONSULT A QUALIFIED ELECTRICIAN BEFORE INSTALLING
Note:
1. This fixture should not be used in areas with limited ventilation or high ambient temperature exceeding 45°C. 2. Keep enough length
wires to ensure adjusting angle inhindered. 3. This product series emits high light output. DO NOT look directly into the light emitting
area. Direct exposure to the light over an extended time period may harm eyes 4. Operating ambient temperature range -40°C to 45°C
Caution:
Disconnect AC power before servicing and installation.
All electrical connections must be in accordance with
NEC/CEC or your local code.
PRODUCT DIMENSIONS
14.37"
3.27"
PRODUCT SPECIFICATION
PRODUCT SPECIFICATION
Input Voltage
Input Current
Frequency
Rated Power
Suitable For
323-888-1973
OFL-402-LED
LED Floodlight
15.2"
3.27"
14.37"
120-277 VAC
50/60 Hz
150W
Wet Location
INSTALLATION STEPS (THREADED KNUCKLE)
1.
Use screw key to open the junction-box
2.
Put the wires of lamp into the junction-box.
3.27"
3.
Screw up the knuckle mount into junction-box.
techsupport@iuseelite.com
INSTRUCTIONS
PAGE 1 OF 3
O.R.-Revision A: 4/1/20
www.iuseelite.com
Advertisement
Table of Contents
Related Manuals for ORACLE LIGHTING OFL-402-LED
Summary of Contents for ORACLE LIGHTING OFL-402-LED
- Page 1 INSTRUCTIONS OFL-402-LED LED Floodlight PAGE 1 OF 3 SAFETY INSTRUCTIONS 1. Equipment should be mounted securely in locations and at heights where it will not be readily subjected to tampering by unauthorized personnel. 2. Do not mount near gas or electric heaters. 3. Cap unused wires with enclosed wire nuts or other approved method.
- Page 2 INSTRUCTIONS OFL-402-LED LED Floodlight PAGE 2 OF 3 Use wire-nuts to connect the wires of lamp and junction-box Use hex-key to screw up the hex-screw. Installation completed. Lock the junction-box with screw key. INSTALLATION STEPS (SLIP FITTER) Loosen the screw used to fix the upper and the lower mount in rotating shaft by Hexagon wrench.
- Page 3 INSTRUCTIONS OFL-402-LED LED Floodlight PAGE 3 OF 3 Connect wires. Fasten the screw nut clockwise with provided hardware with a wrench. Fix the bracket to lamp pole by hexagonal wrench Rotate the light to the proper angle and fasten the screws.
