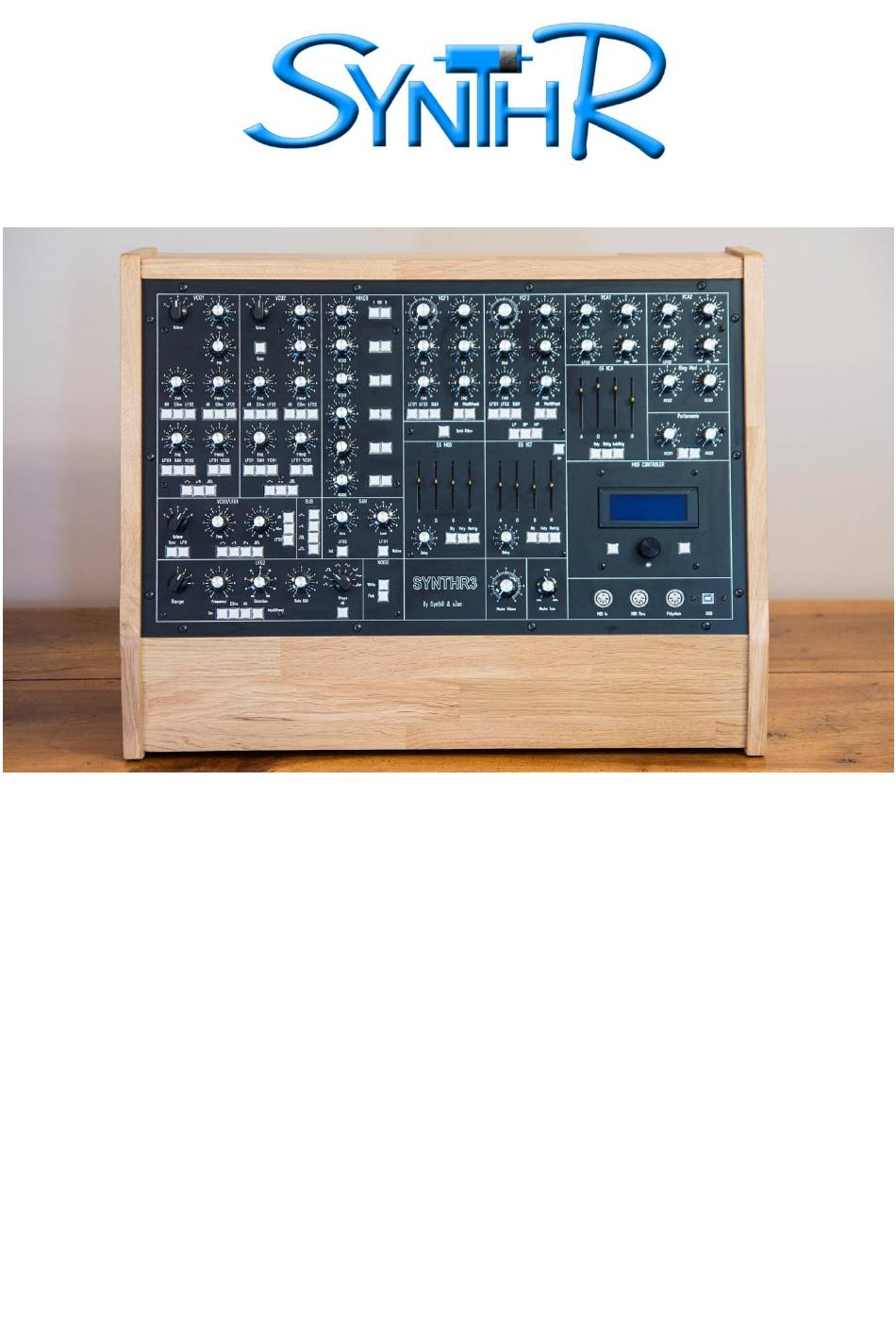

  • Page 1 The SYNTHR3 Modern semi-modular synthesizer with three- way paraphony, duophony, MIDI control, arpeggiator, integrated sequencer, and modulation matrix storage.
  • Page 2 User Manual SYNTHR3 Manuel V1.01 EN Page 2...
  • Page 3: Table Of Contents

    POWER UP ................................... 19 Operating Mode ................................20 OTHERSfUnctions ................................ 27 APPENDIX ________________________________________________________________________ 29 APPENDIX 1 : SYNTHR3 DIAGRAM ..........................30 APPENDIX 2 : MIDI KEYBOARD ............................ 31 APPENDIX 3 : arpègGIO MODES ..........................32 APPENDIX 4 : Presets ..............................33 APPENDIX 5 : MIDI CONTROLLER DIAGRAM .......................
  • Page 4: Welcome

    And I will finish my thanks for my wife who gave me complete freedom on long hours of development and tuning. The very small company SynthR SAS was born from this project in order to support you as best as possible.
  • Page 5: Connections

    The MIDI converter can also be controlled by a DAW software via the USB port. The Arpeggiator part and the Sequencer part of the SYNTHR3 will be able to receive via the DIN socket a MIDI clock and the associated "Sync 24" commands.
  • Page 6: First Visit

    FIRST VISIT The SYNTHR3 consists from left to right of :  The oscillator section consists of 3 VCOs. VCOs 1 and 2 are identical except that VCO2 can synchronize with VCO1. VCO3 does not have a PW modulation section, but has an additional waveform, it can synchronize to VCO1 as well and above all can be transformed into an LFO (LFO1).
  • Page 7: More Details

    + or - 1 tone.  Synchronization on VCO1 (cancel LFO mode)  Frequency modulation by ajustable input: Aftertouch or modulation Envelope or LFO2.  Simultaneous outputs: Triangle, Sawtooth, Reverse Sawtooth, Square SYNTHR3 Manuel V1.01 EN Page 7...
  • Page 8: Mixer

    Keyboard tracking 0 to 120%. 100% is between 8 and 9 sign pot.  Dedicated Envelope Input  Adjustable modulation input 1: LFO1 or LFO2 or S&H.  Adjustable modulation input 2: Aftertouch or Modulation wheel SYNTHR3 Manuel V1.01 EN Page 8...
  • Page 9 * * * Note: The proposed filters are based on known schematics, but are by no means clones of the components. It is therefore possible that some of them do not have the grain, the fineness, the harmonic range or even the known defects of these famous filters. SYNTHR3 Manuel V1.01 EN Page 9...
  • Page 10: Modulations

    Waveform selector among 8 and 8 more by pressing "Alt".  LFO On button: without it no exit. The LED shows the frequency.  Knobs for triggering the LFO by the modulation envelope. LFO trigger button by Aftertouch SYNTHR3 Manuel V1.01 EN Page 10...
  • Page 11 Note : MIDI keyboards with aftertouch have the possibility to have several curves. If your keyboard is set to a linear curve by default, the SYNTHR3 will force this curve to become exponential in order to increase sensitivity.  Knob for triggering the LFO with the Modulation Wheel.
  • Page 12: Outputs

    VCF2 and the Gain potentiometer of the VCA2 is used for the output level. It is preferable in this case to set it to full. The envelope potentiometers do not act. SYNTHR3 Manuel V1.01 EN Page 12...
  • Page 13: The Play Modes

    The filter envelope is sent on the 2 VCFs and the VCA envelope on the 2 VCAs. The Modulation envelope is free to use for FM, PWM, LFO2 destinations. VCOS can be synchronized, at different octaves or detuned ….. Reminder: SUB follows VCO1 This is still a bi-timbral play since each channel has its own VCF and VCA. SYNTHR3 Manuel V1.01 EN Page 13...
  • Page 14: Monophonic Mode Serial Filter

    However, nothing will be output through VCA1 and all the audio will be output through VCA2. As the filters can be identical (2 low passes) or different, this mode allows you to sculpt a finely tuned sound thanks to the action of the 2 successive filters. SYNTHR3 Manuel V1.01 EN Page 14...
  • Page 15: Duophonic Mode

    In this two-tone duophonic mode the VCF1 and VCA1 together receive the modulation envelope. Be careful to open this envelope otherwise there will be no sound. As for VCF2, it always receives the filter envelope and VCA2 the VCA envelope. SYNTHR3 Manuel V1.01 EN Page 15...
  • Page 16: Paraphonic 1 Mode

    The lowest note has priority and will be played by VCO1, the second pressed note will be played by VCO2 and the third by VCO3.. The choice of filters is free. Tip: Tuning the 3 VCOs in unison but above all not synchronizing them. SYNTHR3 Manuel V1.01 EN Page 16...
  • Page 17: Paraphonic 2 Mode

    Mixer. Finally in this mode, the VCF2 receives on its envelope input an analog OR of each of the note envelopes. The filter can therefore react on each played note. SYNTHR3 Manuel V1.01 EN Page 17...
  • Page 18: Arpegiator Mode

    The detailed use of this mode is covered later with the use of the MIDI controller. CONTROLLER MIDI USAGES Now that you have gotten acquainted with the SYNTHR3, its analog part, its possibilities, we are going to go into the details of how its brain works: the MIDI controller and its different MENUS.
  • Page 19: Midi Controller Functions

    MIDI CONTROLLER FUNCTIONS A control screen of 4 lines by 20 characters allows to use the SYNTHR3 by three commands located below the screen: The first three lines always concern the current action and / or mode, the fourth line specifies the momentary role of the commands located below.
  • Page 20: Operating Mode

    Change about ? OPERATING MODE function. OK to select it ↕/OK Escape Escape to go back Turn the encoder to change the DUOPHONIC MODE function. OK to select it ↕/Ok Escape Escape pour retourner en arrière SYNTHR3 Manuel V1.01 EN Page 20...
  • Page 21  Choice of the VCO2 game, this is where the richness of SYNTHR3 is expressed. Indeed as explained above the 2 VCOs being independent of CV and Gate, either the VCO2 lives in couple with the VCO1 or it lives as a single. There are 10 possibilities for him: SYNTHR3 Manuel V1.01 EN...
  • Page 22 BPM for a short time. Clock ARP : LFO2x4 Clock SEQ : LFO2x2 BPM=220 BPM=405 Escape Escape Note: The Sustain pedal must have a normally open contact. SYNTHR3 Manuel V1.01 EN Page 22...
  • Page 23 STEP SEQUENCER MODE The Step Sequencer of SYNTHR3 respects the modular nature of SYNTHR3. As on physical sequencers, a clock is running and at each step a note or a chord or a silence is played. A note can be repeated on the principle of "Ratchet" in sixteenth notes, thirty-second notes or sixty-fourth notes.
  • Page 24 ==SEQUENCER select== screen : erase a sequence 10 >ERASE SEQ [ CHORD 12 Steps ] After selecting the sequence number, go to ERASE and press OK, the sequence next ↕/Ok Edit will become "-Free-". SYNTHR3 Manuel V1.01 EN Page 24...
  • Page 25 This mode is actually an extension of the Duophonic mode. By connecting a MIDI cable (Din 5 pins) between a SYNTHR3 called number 1, via its " Polychain " jack and a SYNTHR3 called number 2 via its MIDI IN jack, we create a synthesizer with 4 polyphonic notes and 4 timbres.
  • Page 26 The same is true in Sequencer mode by setting the VCO2 to KeyP. SYNTHR3 Manuel V1.01 EN Page 26...
  • Page 27: Othersfunctions

    Advice: The A 440 Hz heard is sinusoidal because it is passed through a filter. Put the SYNTHR3 in monophonic mode, put on each VCO the triangular waveform without any modulation, set to octave 0, put the VCF1 completely open (Cutoff on 10, resonance on 0) and send successively each VCO via its switch on the VCF1 and adjust the beats by ear.
  • Page 28 PATCH The SYNTHR3 is a modular synthesizer. That is to say, all the modules that make it up are independent of each other. VCO, VCA, VCF, MIXER, etc. all these modules are governed by the 1V/octave standard In a historical modular synthesizer, the patches are the cables that connect the modules together. For SYNTHR3, no cables, but push buttons that connect the modules together.
  • Page 29: Appendix

    Turn the potentiometer, the above screen will appear. The values indicate the difference -67mv 420Hz between the LA4 440Hz and the tuning of the SYNTHR3 in different units. To go back to the -800cents original screen, press " Escape " (Button B) or wait a few seconds and this Mastertune Escape screen will be erased to automatically return to your original page.
  • Page 30: Appendix 1 : Synthr3 Diagram

    APPENDIX 1 : SYNTHR3 DIAGRAM...
  • Page 31: Appendix 2 : Midi Keyboard

    APPENDIX 2 : MIDI KEYBOARD Type Message Description NOTE_ON Début d'une note avec sa vélocité NOTE_OFF Fin d'une note Channel Voice Message AFTERTOUCH Variation de pression sur l'ensemble du clavier PITCH BEND MOD WHEEL Molette de modulation Control Change message SUSTAIN Pédale de sustain (On-Off) CLOCK...
  • Page 32: Appendix 3 : Arpèggio Modes

    APPENDIX 3 : ARPEGGIO MODES Arpège Type 0 Arpège Type 1 Arpège Type 2 Arpège Type 3 Arpège Type 4 Arpège Type 5 Arpège Type 6 Arpège Type 7 SYNTHR3 Manuel V1.01 EN Page 32...
  • Page 33: Appendix 4 : Presets

    Arpège Type 8 Arpège Type 9 Arpège Type 10 APPENDIX 4 : PRESETS SYNTHR3 Manuel V1.01 EN Page 33...
  • Page 34: Appendix 5 : Midi Controller Diagram

    APPENDIX 5 : MIDI CONTROLLER DIAGRAM...
  • Page 35: Annexe 6 : How To Change A Filter

    ANNEXE 6 : HOW TO CHANGE A FILTER Power off. Remove the screws Carefully remove filter 1 or filter 2 by taking it by the 4 corners and pull alternately right and left with small movements Slot N°2 : Slot N°1 : low pass filter only all type filter To replace another filter, align the connectors, if possible starting with the connectors at the bottom of the board, then align...
  • Page 36: Appendix 7 : Rear Face

    MIDI controller coefficient. APPENDIX 8 : OUTSIDE CLEANING The wood of SYNTHR3 is not varnished but waxed, which means that it is always possible to clean and re-wax it if the need arises. The stain on delivery is light oak.
