Summary of Contents for Curiocity Technology CTI-1000AE

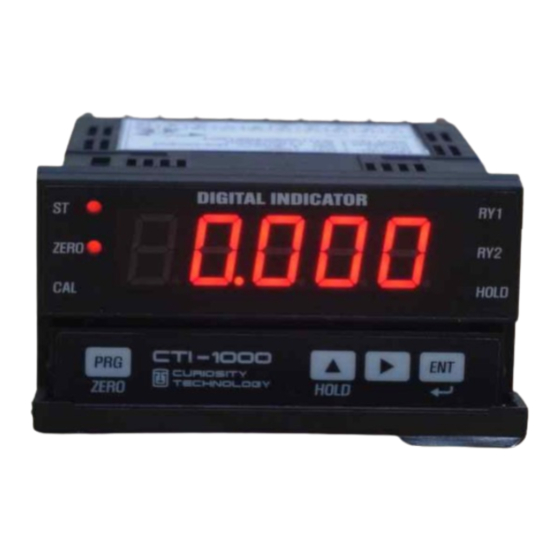

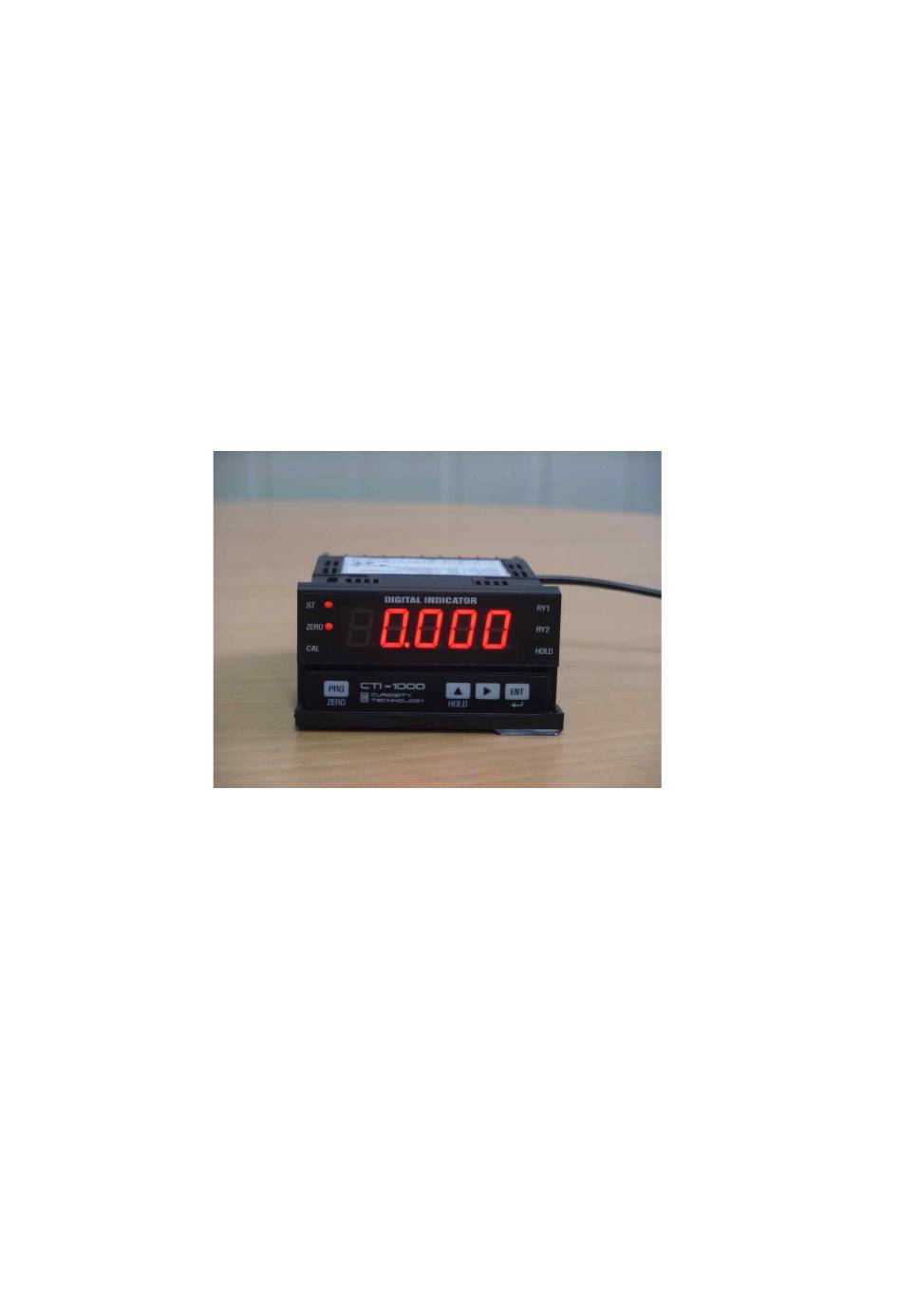

- Page 1 INDUSTRIAL DIGITAL INDICATOR CTI-1000AE User Guide - PAGE 1 -...
- Page 2 1. INTRODUCTION We greatly appreciate for your purchase of the industrial indicator. These goods have hold excellent performance and splendid properties through strike tests as well as devoting ourselves under severe quality management. CTI-1000 indicator is shaped firmly and delicately designed a coincide with the special requirements of several industrial fields and includes many functions and various external interfaces.
-
Page 3: Technical Specification
3. TECHNICAL SPECIFICATION � Analog Part Load Cell Excitation DC 5V, Up to 6 x 350Ω load cells Voltage Full Scale Input Signal 20 mV, including dead load Zero adjust range 0.05 mV ～ 5 mV 2 ㎶ (H-44,OIML) Input Sensitivity 0.5 ㎶... -
Page 4: Calibration Mode
- DESCRIPTION OF THE CONNECTION TERMINAL IN(ZERO) 11 12 13 14 15 16 17 18 19 20 9 10 Ex+ Ex- Sig+Sig- GND TXD RXD 4. CALIBRATION MODE Turn on the power while pressing the [PRG] key on the front of the indicator. Display "... - Page 5 CAL 3 : Setting Weight In Span CALIBRATION FUNCTION RANGE ---> 1 ～ 99,999 kg DISPLAY DESCRIPTION ▲:Increase of no. CAL 3 CAL 3 condition ◀: Shift of digit ENTER(↲) :Store and 100 kg move into next menu REF 1. The weight shall be within the range of 1% ～ 100 % of maximum weight. CAL 4 : Zero Calibration FUNCTION...
-
Page 6: Set Mode
5. SET MODE Press [ENT] key while 3 seconds, display " SET " Message. F03 : Automatic zero tracking compensation F04 : Digital Filter F07 : Weight Back-up (Power-on Actual Weight) F10 : Device ID F11 : Designation of Serial Interface Baud rate F12 : Designation of Serial Interface output mode F13 : Designation of Serial Interface Data Format F15 : Set HOLD type... - Page 7 Output Mode Command Mode Stream mode Data Format CAS Format Curiosity Technology(CurioTec), A&D Format Set HOLD type Average hold : Compute the average weight of oscillating weights. Peak hold : Compute the maximum weight among oscillating weights. Tuning the Analog Out Current in the ZERO Weight. (Option : Analog Out) 0.000 4.000 : at Zero 4mA Adjust the set value...
- Page 8 6-1. Setting the Lo/High value (Relay 2) Press [▶]key while 3 seconds. display“ LO " message. LO VALUE (RY1) If the display weight is LO value(50.0kg), RY1 is ON. Use the [▲]&[▶] keys to toggle the value. Use the [ENT] key to store the displayed value.
- Page 9 7. Weight constant calibration (Option) Turn on the power while pressing the [▲] key on the front of the indicator. Display " PASS" Message. Input Password Type the Password. PASS Use the [▲]&[▶] keys to toggle the value. Use the [ENT] 1111 key to store the displayed value.
- Page 10 Curiotec/CAS Data Format (22 Byte) , , , DATA (8Byte) CR LF US(Unstable) GS(Gross) Empty UNIT ST(Stable) NT(Net) ...
- Page 11 9. CHECK MESSAGE AND TROUBLE SHOOTI (1) IN WEIGHTING MODE Che 02 ▣ Reason Load cell connection failure or error in A/D conversion part. ☞ Trouble shooting Check the load cell connector to see if the polarity of signal is reversed. Over ▣...
- Page 12 Certificate of Quality Curiocity Technology Co., Ltd. In case of occurred breakdown of product purchased from Curiocity Technology Co., Ltd. during term of guarantee, we will repair according to guarantee regulation of the top portion. - PAGE 12 -...
