Summary of Contents for EMSCAN EMxpert ERX+

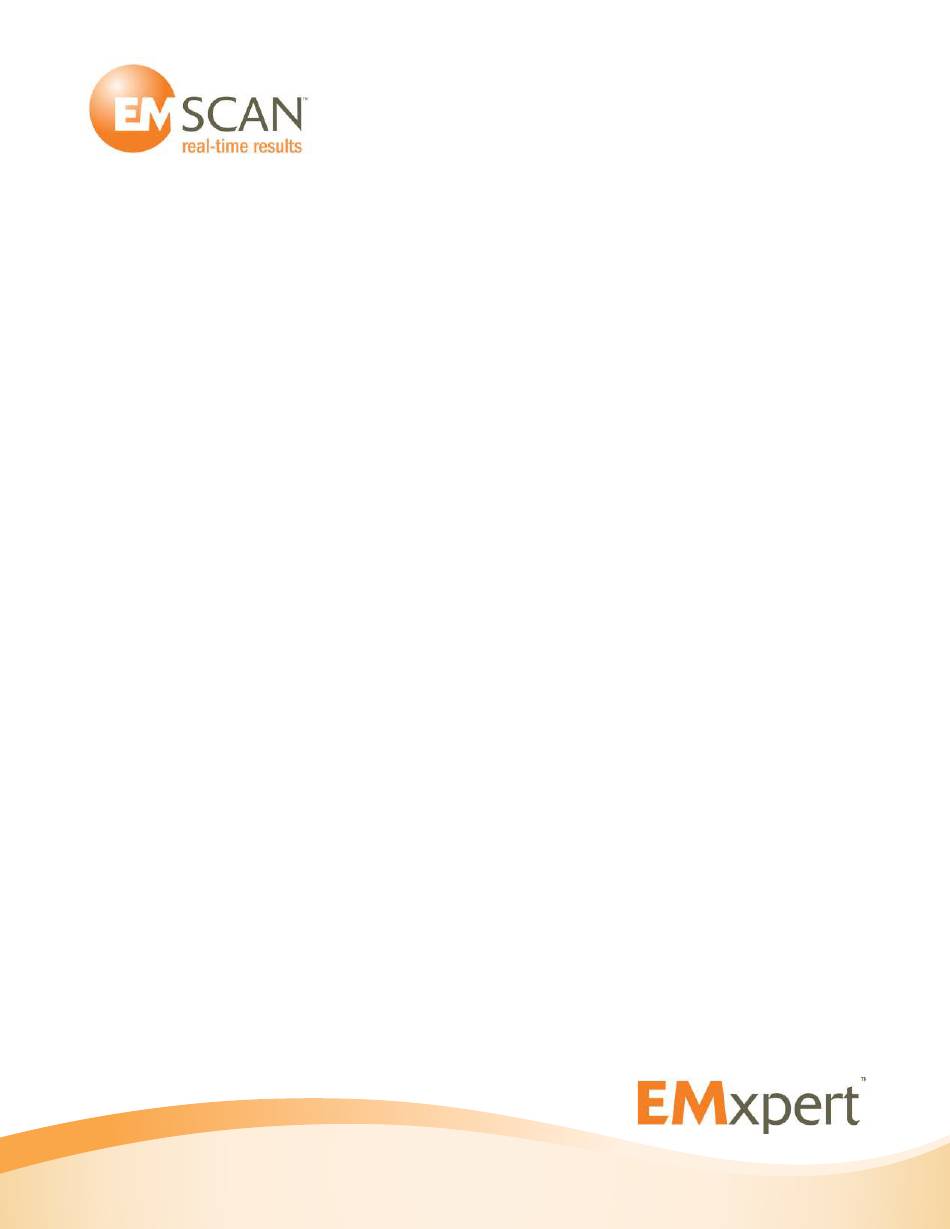

- Page 1 EMxpert ERX+ | EHX+ User Manual v5.0.8.10-1.8.0.9...
- Page 2 EMSCAN shall not be liable for errors or for incidental or consequential damages in connection with the furnishing, use, or performance of this document or any information contained herein. Should EMSCAN and the user have a separate written agreement with warranty terms covering the material in this document that conflict with these terms, the warranty terms in the separate agreement shall control.
- Page 3 Software Updates Warranty EMSCAN warrants to its customers that any EMxpert from the date of delivery will perform substantially in accordance with the specifications provided, when properly installed, operated, maintained and repaired for the duration of warranty purchased by the customer.
-
Page 4: Table Of Contents
Table of Contents Table of Contents Contact Information ................About the EMxpert Products ..............Minimum System Requirements ............... EHX+ Cables and Component Checklist ............EHX+ Connection Overview ..............ERX+ Cables and Component Checklist ............. ERX+ Connection Overview ..............Option and Accessories ............... Quick Installation and Checklist .............. - Page 5 Table of Contents Spectral Scan .................. Spatial Scan ..................Spectral/Spatial Scan ................Handheld Probe Scan ................ Spectral Overlay ................Spectral Comparison ................Interleaved Scan ................Spatial Comparison ................Measurement Tips ................Scanning a PCB .................. Scanning a System Level Device ..............Appendix - Frequently Asked Questions (FAQ) ..........
-
Page 6: Contact Information
Serial Number and Software Version Contact Information Contact EMSCAN Technical Support for your questions. Have your unit’s serial number, software and firmware versions available as well as your PC Windows OS version when you contact EMSCAN Technical Support. Phone: Toll Free (North America Only): +1-877-367-2261... -
Page 7: About The Emxpert Products
About EMxpert EHX | EHX+ | ERX+ About the EMxpert Products EMxpert product family provides board-level design teams with world-leading fast very-near-field magnetic data to help diagnose EMC design issues. EMxpert product line consists of EHX (high-frequency scanner) and ERX (high-resolution scanner). These instruments capture and display visual images of spectral and spatial scan results in seconds. -
Page 8: Ehx+ Cables And Component Checklist
About EMxpert EHX+ Cables and Component Checklist EHX+ Cables and Component Checklist Components Supplied with the EHX+ System 1. EHX+ (integrated scanner with embedded spectrum analyzer, processing electronics and cables) 2. Universal Power Supply: 3. Surface wave absorber: (part numbers: 3000-1806 and 3000-1808) 4. -
Page 9: Ehx+ Connection Overview
About EMxpert EHX+ Connection Overview EHX+ Connection Overview Caution: ® The surface of the scanner is made of Gorilla glass. It may shatter if a sharp object is dropped from a distance. Item Number Description Scanner LED light shows three stages: Red: Boot mode Orange: Initiation mode (checking adaptor’s firmware) -
Page 10: Erx+ Cables And Component Checklist
About EMxpert ERX+ Cables and Component Checklist ERX+ Cables and Component Checklist Components Supplied with the ERX+ System 1. ERX+ (integrated high resolution scanner with embedded spectrum analyzer, processing electronics and cables) 2. 1 Universal power supply and cable: 3. Ethernet cable: It connects the PC (laptop or desktop) to the ERX+ built-in spectrum analyzer and controller boards. -
Page 11: Erx+ Connection Overview
About EMxpert ERX+ Connection Overview ERX+ Connection Overview Caution: ® The surface of the scanner is made of Gorilla glass. It may shatter if a sharp object is dropped from a distance. Item Number Description Scanner LED light shows three stages: Red: Boot mode Orange: Initiation mode (checking adaptor’s firmware) -
Page 12: Option And Accessories
- Two 30 minute web training sessions per year 3000-1910 Calibration Assurance Plan for the EHX+ and ERX+ / Return to EMSCAN / 3 years - Annual single calibration event included - Freight to/from EMSCAN factory not included unless unit under original or extended... -
Page 13: Quick Installation And Checklist
LED does not turn green after a few minutes or turns red, cycle the power to the ERX+ | EHX+ by turning it off and on again. If the problem persists then contact EMSCAN. 5. Open a HTTP session between your PC and your ERX+ | EHX+ by entering 172.16.1.148 in a Google Chrome browser (PLEASE DO NOT USE INTERNET EXPLORER). - Page 14 About EMxpert Quick Installation and Checklist 6. If you do not see a web page like the one above or if it is very slow to come up please follow these troubleshooting steps: a. Can you ping the ERX+ | EHX+ 172.16.1.148? If yes, go to step “c” b.
-
Page 15: Emxpert Erx+ Limitations
About EMxpert EMxpert ERX+ Limitations EMxpert ERX+ Limitations PLEASE REMOVE ALL PREVIOUS EMxpert ERX+ | EHX+ SOFTWARE APPLICATIONS BEFORE INSTALLING 5.0.8.9. REMOVE THE ICON FROM THE DESKTOP AND UNINSTALL “ EMxpert” FROM PROGRAMS AND FEATURES. Supported Features with Known Limitations of Firmware 1.8.0.9 1. - Page 16 About EMxpert EMxpert ERX+ Limitations Noise floor smoothing and decimation of the noise signals are available through the user-controlled Noise Reduction level and the Noise Threshold level a. Noise Reduction Level 2 is incorrect. Do not use. 4. Handheld Probe Scans Smallest RBW is 30 kHz Frequency range cannot straddle 50 MHz a.
- Page 17 About EMxpert EMxpert ERX+ Limitations 3. Spectral speed per cell 50 - 1000 MHz span RBW 30 kHz = 60 ms RBW 122 kHz = 22 ms RBW 976 kHz = 20 ms To get the total scan time, multiply by the number of cells and for high resolution also multiply by the scan level power of 2.
-
Page 18: Emxpert Ehx+ Limitations
About EMxpert EMxpert EHX+ Limitations EMxpert EHX+ Limitations PLEASE REMOVE ALL PREVIOUS EMxpert ERX+ | EHX+ SOFTWARE APPLICATIONS BEFORE INSTALLING 5.0.8.9. REMOVE THE ICON FROM THE DESKTOP AND UNINSTALL “ EMxpert” FROM PROGRAMS AND FEATURES. Supported Features with Known Limitations of Firmware 1.8.0.9 1. - Page 19 About EMxpert EMxpert EHX+ Limitations b. Maximum frequency shown will be a little less than 8000 MHz, depending on the RBW, it might even be less than 7950 MHz Setting the pre-amp to Level 2 below 50 MHz may result in saturation Noise floor smoothing and decimation of the noise signals are available through the user-controlled Noise Reduction level and the Noise Threshold level a.
-
Page 20: Hardware Setup
LED turns green. If the LED does not turn green after a few minutes or turns red, then cycle the power to the ERX+ | EHX+ by turning it off and on again. If the problem persists then contact EMSCAN. -
Page 21: Software Installation
Getting Started Software Installation Software Installation 1. Plug-in the EMxpert USB drive. Select the software folder and double click on Setup.exe file 2. When you are prompted “Do you want to allow the following program from an unknown publisher to make changes to this computer”... - Page 22 Getting Started Software Installation 5. Select I Agree and click Next 6. The following screen will be displayed...
- Page 23 Getting Started Software Installation 7. Click Close 8. When using the EMxpert ERX+ | EHX+ Software for the first time, Shift + Rick Click + Run as administrator the icon on the Desktop. Once it has been done, it does not have to be repeated;...
-
Page 24: Setup And Modes Of Operation
EMxpert Software Setup and Modes of Operation Setup and Modes of Operation Setup EMxpert is a very-near-field scanning system. It is composed of 1,218 H-field probes that operate between 150 kHz and 8 GHz. Probes are wideband but not very sensitive across this band thus they are very good at rejecting background noise. - Page 25 EMxpert Software Setup and Modes of Operation 3. Cable testing Cables from and to the PCB can be tested for emissions. Place the DUT on the scanner and tape the cables on the scanner. 4. System testing EMxpert will help detect any leakages from a system under test for both frequency and location.
-
Page 26: Menu Bar
EMxpert Software Menu Bar Menu Bar Menu Bar is shown below. It allows the user to start a project node, to select a scan type, to start a single scan, to scan continuously, and to stop a scan, as well as to specify scan settings. Quick Access Toolbar About EMxpert •... -
Page 27: Quick Facts About Menu Bar
EMxpert Software Menu Bar Quick Facts about Menu Bar Multiple project files can be opened at the same time. Each file will have a dedicated tab showing the project name. Click on the tab to view the project file. If there are any changes compared to the saved version of the project file this will be indicated by an asterisk ( * ) behind the file name. -
Page 28: Viewing Scan Results
EMxpert Software Viewing Scan Results Viewing Scan Results Depending on the scan type, you can view the scan results in either spectral or spatial or both views. Spectral View Name of the scan is on the top of the graph. Below the name is the scan type, scan frequencies, minimum and maximum amplitudes of this span, LNA or Attenuator values used, patented scanner model and date and time of the scan. -
Page 29: Spatial View
EMxpert Software Viewing Scan Results Spatial View Name of the scan is on the top of the graph. Below name is the scan type, scan frequency, minimum and maximum amplitudes of this frequency, LNA or Attenuator values used, patented scanner model and date and time of the scan. - Page 30 EMxpert Software Viewing Scan Results Left click and drag to zoom in. Right click and select Reset Zoom to return to the original view or Previous Zoom to return to the previous zoom level. Right click on the graph to display menu. You can change all the settings of the Spatial Scan before a new scan via Settings or after a first scan by using Edit Overlay and/or by zooming on some cells and selecting Confirm Selected Cells for New Scan.
-
Page 31: Nodes
EMxpert Software Nodes Nodes All scan types in a project are called nodes. A project is the root node. It can be considered a folder like in Windows directories to store related data. You can add different types of scans and/or notes to a project node. You can rename, copy and paste a node or node settings only. -
Page 32: How To Delete A Node
EMxpert Software Nodes How to Delete a Node? Double click on the node that you want to view. Right click on the node that you want to delete and then select “Delete Node”. How to Export Data? You can export any data in .txt format. To export data right click on the scan image, and select Export Spectral Data (then select All Data or Peaks) or Export Spatial Data. - Page 33 EMxpert Software Nodes Spectral Scan Tab Enter Start Frequency and Stop Frequency to identify the span of the Spectral Scan to be implemented. RBW (Resolution Bandwidth): It is set by default at 122 kHz and can be reduced to the lowest level allowed by the spectrum analyzer.
-
Page 34: Overlay Editor (How To Superimpose Graphical Image Of A Dut)
JPG needs to be rotated and mirrored outside the EMxpert Please contact application to match the actual DUT size and orientation; it can be resized EMSCAN inside the Overlay Editor. conversion All scan types will inherit the overlay imported in this step. To change overlay instructions. -
Page 35: How To Import Overlay After A Scan (Spatial Or Spectral/Spatial Or Handheld Probe Scan)
Once the file is imported, a window as shown below will open. You need to position the image to match the actual DUT position on the EMSCAN’s patented scanner. Precise positioning of Gerber or picture is done with Arrow keys. You can resize the JPG file by left clicking and dragging the bottom right corner of the image (red/green/blue colored corner). - Page 36 EMxpert Software Nodes Then right click on the Spatial Scan window and select Edit Overlay which takes you directly to the original Edit Overlay setting. You can change the overlay to see if a new Gerber for example is a better match for the emissions.
- Page 37 EMxpert Software Nodes Spatial Scan Tab Enter Center Frequency manually RBW (Resolution Bandwidth): It is set by default at 122 kHz and can be reduced to the lowest level allowed by the spectrum analyzer. Decreasing the bandwidth will increase the sensitivity;...
- Page 38 EMxpert Software Nodes You can deactivate the probes; either left click on already selected cells or by left clicking and dragging the mouse and choosing Unselect Cells; or by clicking on Select None to deactivate all of the probes. Note: Importing design file or the picture of the DUT is highly recommended.
- Page 39 EMxpert Software Nodes In fact when you turn ON the Internal Pre-Amp you will see the following message pop up; click OK if you wish to proceed. Noise Reduction: It is only useful and implemented for a spectral scan or a spectral/spatial scan. It is set to Level 1 by default.
-
Page 40: Report Generator
EMxpert Software Report Generator Report Generator The Report Generator Node allows the user to generate standard scan reports by exporting the scans into Microsoft Office Word for Windows report template. Report generator needs Microsoft Office Word. To create a report, add Report Generator node to any node (please refer to page 31). -
Page 41: Scan Types
3. Run the scan Power up the PCB or DUT and place it on the scanner aligning as closely as possible to the vertical and horizontal guidelines. Lining up with the squares assists you when importing overlays. Placing PCB on EMSCAN’s patented scanner... -
Page 42: Spectral Scan
EMxpert Software Spectral Scan Spectral Scan Spectral Scan measures and displays the maximum amplitude vs. frequency of the magnetic field strength over the scanned area. Add Spectral Scan node to Project node (please refer to page 31). Node settings window automatically opens. - Page 43 EMxpert Software Spectral Scan Spectral Scan Probes Tab Note: Select and activate the probes under the DUT. You can activate the probes by either a left click on individual cells or Importing design file or the picture by left clicking and dragging the mouse and choosing Select of the DUT is highly recommended.
- Page 44 EMxpert Software Spectral Scan In fact when you turn ON the Internal Pre-Amp you will see the following message pop up; click OK if you wish to proceed. Noise Reduction: It is set to Level 1 by default. Noise Reduction is a signal processing algorithm that looks at all the signals, and compare them with the noise floor and the reference level of the analyzer for each frequency to decide whether it is a true signal and worth keeping.
- Page 45 EMxpert Software Spectral Scan Once the scan is completed, an image of the scan will be displayed. You can mouse over the graph to see coordinates, frequency and amplitude data. When running the scan continuously , if Replace Data When Running Continuously in the Spectral Scan settings is selected (page 42), the EMxpert software replaces the previous scan data and keeps the...
-
Page 46: Spatial Scan
EMxpert Software Spatial Scan Spatial Scan A Spatial Scan measures the magnetic field of radiated electromagnetic emissions from the DUT at a single frequency as a function of position. Add Spatial Scan node to Project node (please refer to page 31). - Page 47 EMxpert Software Spatial Scan 4. Sweeps per Cell: A spatial scan operates by successively sampling the output from each selected cell in the scanner. If an intermittent signal is being measured then a single sample could easily miss the signal. The sweeps per cell option will force the scanner to stay longer at one location and sample multiple times with the result being the maximum value of all the sweeps.
- Page 48 EMxpert Software Spatial Scan Overlay Editor Please refer to page Signal Conditioning Tab Internal Pre-Amp: A pre-amp external to the built-in spectrum analyzer but internal to the ERX+ l EHX+ is OFF by default. Gain goes from 40 dB at 150 kHz to 15 dB at 8 GHz.
- Page 49 EMxpert Software Spatial Scan If you choose Scan Continuously the screen will refresh quickly. If you wish, you could move the PCB on the scanner and see the result of the movement in real-time (the overlay does not move as you have fixed it to a set position).
-
Page 50: Spectral/Spatial Scan
EMxpert Software Spectral/Spatial Scan Spectral/Spatial Scan A Spectral/Spatial Scan measures the magnetic field strength of radiated electromagnetic emissions from an object as a function of both frequency and position on the PCB. The Spectral/Spatial Scan collects a series of Spatial Scans over the entire frequency range of interest as opposed to a Spatial Scan (which gathers data at single frequency) or a Spectral Scan (which saves only the composite maximum data set over the scan area). - Page 51 EMxpert Software Spectral/Spatial Scan 3. Interleaved Scan: This scan is meant to overcome the limitations of the probe polarizations. By measuring a DUT twice with a small physical shift between the two scans, blind spots can be eliminated (please refer to page 64).
- Page 52 EMxpert Software Spectral/Spatial Scan It is important to activate all of the probes under the DUT to have a complete view of the emissions from the DUT. Overlay Editor Please refer to page Signal Conditioning Tab Internal Pre-Amp: A pre-amp external to the built-in spectrum analyzer but internal to the ERX+ l EHX+ is OFF by default.
- Page 53 EMxpert Software Spectral/Spatial Scan To run the scan click . Once the scan is completed, a spectral view and a spatial view will be displayed. By default view tabs are set to full composite spectral and spatial views for the entire selected frequency. Full Composite Spectral View Composite Spectral looks like a normal Spectral Scan;...
- Page 54 EMxpert Software Spectral/Spatial Scan Multi Frequency Marker Right click on the spectral graph and select Multi Frequency Marker. Select multiple frequencies of interest on spectral graph. A red cross will indicate the selection. Spatial graph will update to display the emissions on the board at the selected frequencies. Selected frequencies will be displayed under Freq List (Frequency List) next to the spatial graph.
- Page 55 EMxpert Software Spectral/Spatial Scan Delta Marker It displays the amplitude and frequency difference between the current mouse position and the delta marker position in the frequency spectrum viewed. 1. Select either Full Composite View or User Composite View on spectral graph 2.
- Page 56 EMxpert Software Spectral/Spatial Scan Full Composite Spatial View Composite Spatial looks like a normal Spatial Scan; it however is a gateway to the archived spectral data for each frequency. You can select single or multiple cells on the Composite Spatial view to analyze their amplitudes and frequencies.
- Page 57 EMxpert Software Spectral/Spatial Scan Select multiple cells of interest on spatial graph. A cross will indicate the selection. Full/User Composite View tab overlays spectral graph of user selected cells on to the full spectral graph. Spectral graph of the selected cell will be displayed in green on the spectral graph. User Composite View tab displays the spectral graph of user selected cells.
-
Page 58: Handheld Probe Scan
EMxpert Software Handheld Probe Scan Handheld Probe Scan The handheld probe is meant to provide the user with a method to easily collect and display data from sensors other than the EMxpert probes. EMxpert is compatible with any sensor that the user wishes to use once connected to the RF IN port. - Page 59 EMxpert Software Handheld Probe Scan Handheld Probe Scan Probes Tab Note: Select and activate the scan area that you want to manually measure. Note that you are not selecting probes on the EMxpert but rather an array of Importing design file or the picture of measurements that you will do with the handheld probe.
- Page 60 EMxpert Software Handheld Probe Scan Signal Conditioning Tab Internal Pre-Amp: A pre-amp external to the built-in spectrum analyzer but internal to the ERX+ l EHX+ is OFF by default. Gain goes from 40 dB at 150 kHz to 15 dB at 8 GHz. Displayed amplitude levels are automatically corrected for the gain value.
- Page 61 EMxpert Software Handheld Probe Scan Once the probe is in place, press the space bar or click OK and wait for the spatial display to update. Continue with re-placement of probe and triggering until all locations selected have been triggered. You can also make use of a simple grid to help place the probe.
-
Page 62: Spectral Overlay
EMxpert Software Spectral Overlay Spectral Overlay A Spectral Overlay is a qualitative comparison of two frequency spectra. It displays two data sets superimposed on each other, which allows you to visually inspect data for differences, i.e. presenting a qualitative view. The Spectral Overlay node allows you to observe and compare two Spectral Scans with same resolution bandwidth and overlapping frequency range eventhough they may have different frequency ranges e.g.: Spectral 1: 10 MHz - 80 MHz and Spectral 2: 30 MHz - 120 MHz. -
Page 63: Spectral Comparison
EMxpert Software Spectral Comparison Spectral Comparison A Spectral Comparison is a quantitative comparison between two frequency spectra. It is generated by subtracting the values of one spectrum (Test View) from the values of the second spectrum (Reference View) at each frequency. The Compare Spectral node allows you to observe and compare two Spectral Scans with same resolution bandwidth and overlapping frequency range eventhough they may have different frequency ranges e.g.: Spectral 1: 10 MHz - 80 MHz and Spectral 2: 30 MHz - 120 MHz. -
Page 64: Interleaved Scan
EMxpert Software Interleaved Scan Interleaved Scan The Interleaved Scan node is meant to overcome the limitations of the probe polarizations and remove blind sports. Each of the 1218 probes on the EMxpert scanner is created by using the vias and traces in a PCB to form a loop. - Page 65 EMxpert Software Interleaved Scan In certain situations the presence of dead spots can create misleading results. An example of this is shown below. The image on the left shows a diagonal trace with one standard scan. The image on the right shows the same trace after two interleaved scans.
- Page 66 EMxpert Software Interleaved Scan The scanner will automatically move up by exactly 1 row EMxpert EHX+ Interleaved Scan: a. Right click on the project node and select Add Node and then Spatial Scan node and check Interleaved Scan box...
- Page 67 EMxpert Software Interleaved Scan b. Run the first spatial scan: Place the DUT on the scanner at the desired position. This position should align with the Gerber file overlay. Run the first scan. c. Run the second spatial scan: After the first scan, a message box will pop-up indicating to move the DUT up by exactly 1 row.
-
Page 68: Spatial Comparison
EMxpert Software Spatial Comparison Spatial Comparison Spatial Comparison is a quantitative comparison between two Spatial Scans that is generated by subtracting the values of the first scan (Test View) from the values of the second scan (Reference View) cell by cell. The Spatial Comparison node allows you to see the difference between two Spatial Scans at the same frequency. -
Page 69: Measurement Tips
To combat this effect a small surface wave absorber must be placed on the edge of the scanner. This absorber is provided by EMSCAN with the EMxpert EHX system. If you are missing your absorber please contact EMSCAN. -
Page 70: Scanning A System Level Device
If the scan amplitudes are below 20 dBuV and the noise floor is high, use a low noise amplifier (your own or one provided by EMSCAN) and reduce the Resolution Bandwidth. g. We take measures to compensate for spectrum analyzer noise. -
Page 71: Appendix - Frequently Asked Questions (Faq)
Does the system require annual calibration? What is the frequency and amplitude accuracy of the EMxpert measurements? What are the Minimum System Requirements? What is the maximum power level that EMSCAN’s patented scanner can receive without being damaged? How sensitive is EMSCAN’s patented scanner? How can I find the frequency of an intermittent or random signal? I am doing Before and After testing. - Page 72 Windows 7/8/8.1 OS • 10/100 Network Card 5. What is the maximum power level that EMSCAN’s patented scanner can receive without being damaged? The surface of the scanner can handle thousands of volts. The scanner is rated for a radiated load of 10 W or 40 dB.
- Page 73 Industry Canada, 10 m, 3 m and 1 m test distances. This is an optional feature (Part #: 3000-0304) that can be purchased separately. Please contact EMSCAN. 10. I want to do a Pass or Fail test. What feature should I use?
- Page 74 EMxpert Software Appendix - FAQ Level 1: 6.6 sec. (Selected area entire scanner, 1,218 probes activated) Level 2: 1.6 sec. (Selected area 2.25 cm x 2.25 cm, 9 probes activated) Level 3: 1.6 sec. (Selected area 2.25 cm x 2.25 cm, 9 probes activated) Level 4: 6.6 sec.
-
Page 75: Appendix - Fuse Replacement
EMxpert Software Appendix - Fuse Replacement Appendix - Fuse Replacement If the switch light does not turn on after connecting the power supplies and turning the switch to ON position, you may need to replace the fuse. To replace the fuse: 1. -
Page 76: Appendix - How To Update Firmware
Select the “Internet Protocol Version 4 (TCP/IPv4)” and click on Properties. Click “Use the following IP address” and enter the following information: Click OK 3. Obtain the latest ERX+ or EHX+ firmware from EMSCAN. You will need to unzip this file and obtain two firmware images. emsrv_a5.bin... - Page 77 EMxpert Software Appendix - How to Update Firmware 4. Open Chrome or Firefox web browser (not Internet Explorer) and enter the unit’s IP address (default 172.16.1.148). 5. Refresh the web page by pressing the F5 key or clicking the “refresh” icon: 6.
- Page 78 EMxpert Software Appendix - How to Update Firmware 13. Click the “Upload New Image” button, then click “OK” in the message box and wait for the following screen: 14. Click “Close This Window” button. 15. Verify the correct version by refreshing the FW upgrade page as done in steps 2 and 8, then verify the versions of both the A5 and the M4 images: 16.
-
Page 79: Appendix - Error Messages
EMxpert Software Appendix - Error Messages Appendix - Error Messages If you receive other error messages please contact EMSCAN Technical Support Error Messages Possible Causes Action An unknown error occured in the EMSCAN Please contact Technical Support. Unable to communicate with the... - Page 80 The frequency setting is out of the scan. If you wish to change licensed low frequency <detailed licensed frequency range the licensed frequency limits range information> EMSCAN please contact Technical Support. Change the upper frequency limit in the settings to a...
-
Page 81: Appendix -Regulatory Compliance
EMxpert Software Appendix - Regulatory Compliance Appendix -Regulatory Compliance Safety and Regulatory Information • Read all of the instructions listed here and/or in the user manual before you operate this device. Give particular attention to all safety precautions. Retain the instructions for future reference. •... -
Page 82: Fcc Class B Notice
• Consult the dealer or an experienced radio/television technician for help Modifications: Any modifications made to this device that are not approved by EMSCAN Corporation may void the authority granted to the user by the FCC to operate this equipment. -
Page 83: Csa Certification
EMxpert Software Appendix - Regulatory Compliance CSA Certification Documentation includes the following: Pollution degree 2 • Installation category II • Altitude < 2000 m • Humidity up to 95% R.H. (non-condensing) • Electrical supply 100 - 240 V, 50 - 60 Hz •... -
Page 84: Notes
EMxpert Software Notes Notes... - Page 85 #1, 1715-27 Avenue NE Calgary, AB T2E 7E1 Tel: +1-403-291 0313 Canada Fax: +1-403-250 8786 www.emscan.com...
