Houstoun Gate Locomotive Works
Contractors Loco Assembly Instructions
It is suggested that you read these instructions through before commencing construction as this
kit is a little more complex than some of our other kits. Although not a difficult build it is vital that
you build this in the sequence outlined here.
A minimum of tools are needed to assemble the kit. Sandpaper and sanding block, some strong
rubber bands or weights to hold parts in place while the glue dries.
This kit requires glue and paint to complete. It can be built entirely with PVA (exterior type) or
aliphatic resin. A favourite glue is Titebond 3 aliphatic. Excess glue can be wiped away with a
damp rag.
MDF is not moisture proof and the model should therefore be painted or varnished before use.
First apply a sealer/primer - MDF sealer, thinned PVA or grey automotive primer will all do the
job. The cut edges may need more than one application of primer to seal them. Cans of
automotive spray paint work well and give a good finish. If brush painting then use acrylic or
enamel paint.

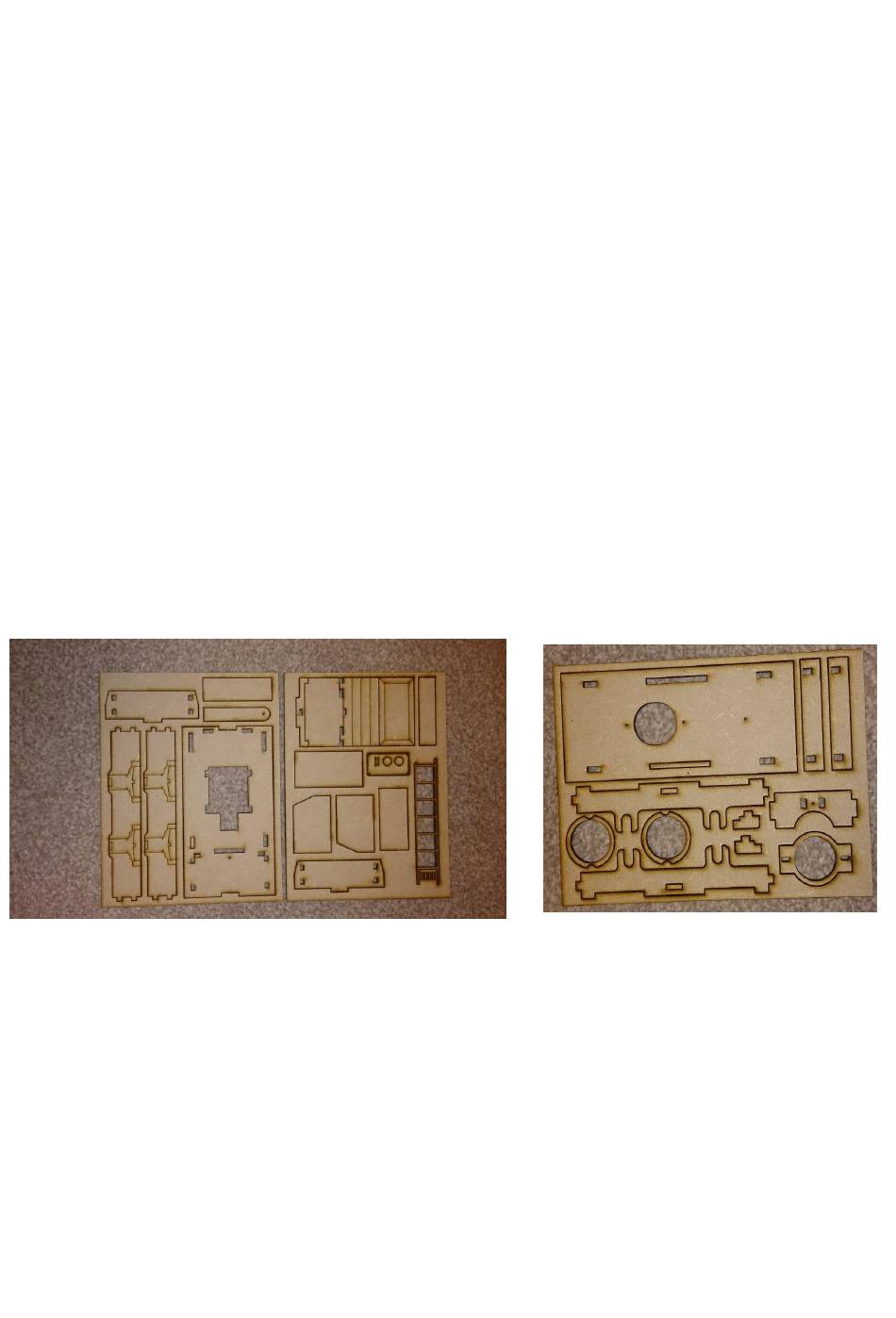

Kit Contents
Main Chassis and 3mm body parts
Inner Chassis
Roof, Load Compartment
1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the Contractors Loco and is the answer not in the manual?

Questions and answers

Summary of Contents for Houstoun Gate Locomotive Works Contractors Loco

  • Page 1 Houstoun Gate Locomotive Works Contractors Loco Assembly Instructions It is suggested that you read these instructions through before commencing construction as this kit is a little more complex than some of our other kits. Although not a difficult build it is vital that you build this in the sequence outlined here.
  • Page 2 Parts Description 2 of 9...
  • Page 3 Carefully separate the parts from their sheets. Wriggling them lightly is normally enough to break the retaining tab. You can also cut the tabs with a sharp modelling knife. Sand the retaining tabs away on all parts before beginning assembly. Glue the parts together in the sequence shown in the pictures below.
  • Page 4 Glue the three motor holder hoops together as shown in the picture. You can use the motor to assist aligning them but remove the motor before the glue sets. Once the glue on the motor holder is dry place the motor in the holder and insert it into the chassis so that the motor rests on the motor support lugs.The motor should now be glued to the holder.
  • Page 5 5 of 9...
  • Page 6 6 of 9...
  • Page 7 7 of 9...
  • Page 8 8 of 9...
  • Page 9 We hope you enjoy your kit, but if you have any problem with construction email our technical help line at techhelp@hglw.co.uk 9 of 9...
