Page 4: Table Of Contents
Table of Contents 1. Safety 1.1 Batteries 1.2 Charger 1.3 Meter 1.4 Probe 1.5 Electromagnetic Compatibility 2. Introduction 3. Description 3.1 Sonic Meter 3.2 Keypad 3.3 LCD display 3.4 1meter cable 3.5 Sonic Meter probe 3.6 Battery Charger 3.7 Batteries 4. -
Page 5: Charger
1.3 Meter: Sonic Meter ’s housing is not waterproof. If the meter becomes immersed in water do not attempt to use it. Do not attempt to repair it. Return the meter to SyncroCraft for authorized repair. 1.4 Probe: The probe attaches to one end of the 1 meter co-axial BNC cable. The other end of the BNC cable that connects to the meter. - Page 6 Ultrasonic cleaners utilize a transducer attached to the tank’s exterior. The transducer outputs pulsating mechanical energy at high frequencies (ultrasonic), which cause the liquid in the tank to agitate. The agitation at this high frequency level is what gives ultrasonic cleaners their cleaning ability.
-
Page 7: Description

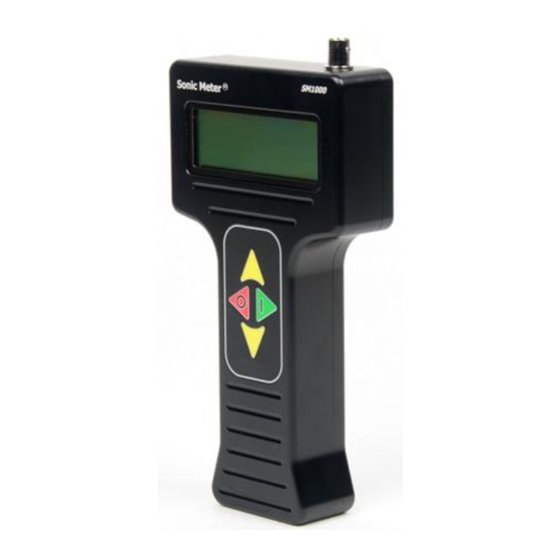

3. Description: Figure 1 Figure 1 shows the main components of the SM1000 Sonic Meter 3.1 Sonic Meter: Sonic Meter SM1000 is packaged in an industrial T-shaped housing. The housing is made of hard anodized aluminum. The housing is splash proof (not waterproof). 3.2 Keypad: Artisan Technology Group - Quality Instrumentation ... -
Page 8: Lcd Display
Figure 2 Figure 2 shows the designations of the keypad’s four keys. The keypad utilizes membrane keys with a color mylar overlay. There are four keys that control the meter Scroll Up: Color designation is yellow. Used for scrolling up through the menu choices and increasing input values. -
Page 9: Sonic Meter Probe
Never attempt to remove or install the probe or cable while the meter is powered on. Surges in voltage could damage the probe or meter. 3.5 Sonic Meter Probe: The probe is made of 304 stainless steel with a BNC connector at the top of the probe and the sensing transducer at the bottom. - Page 10 Figure 3 Figure 3 shows how the 4 AA batteries are removed. With a Phillips screwdriver, unscrew the flathead screw from the back of the meter. Lift the battery cover out from the meter. Remove the 4 AA NiMH batteries, and replace with 4 charged batteries.
-
Page 11: Resetting The Circuit Breaker
2. Two or three batteries were installed with the incorrect polarity. Observation: The meter will not power on. Reinstall the batteries correctly. 3. All four batteries were installed with the incorrect polarity. Observation: The 0.63Amp circuit breaker will disengage power. The meter will not power on. - Page 12 Figure 5 Press and release the green Power ON key to power up the meter as shown in Figure 5. Note: Before taking measurements, wait approximately 1 minute after powering up the meter. Waiting 1 minute allows the probe to come to full charge. 4.4 Options menu (main menu) The Options menu will appear on the LCD after powering up the meter as shown in Figure 5.
- Page 13 The Low range limit indicator is a “<” symbol that is displayed in the upper left-hand corner. Refer to Figure 7. This indicator appears when the pressure reading is less than the acceptable Low range limit value XXX.XXpsi. At 0.00psi this symbol is not displayed.
- Page 14 4.7 Averaged readings Options: Batt.=100% 1. Real time reading →2. Averaged reading 3. PowerOFF / Setup Figure 10 At the Option menu, scroll down to 2 position as shown above in Figure 10. If the meter is not at the Option menu press and hold the red Scroll Left key. With the selection arrow at the 2 position, press and release the green Scroll Right key to select the Averaged reading option.
- Page 15 With the selection indicator at the 2 position, press and release the green Scroll Right key. An underscored flashing cursor will appear in the rightmost ones digit of the Samples value as shown above in Figure 12. The number of samples can range from 0 to 40. With the cursor still in the ones digit, use the yellow Scroll Up or Scroll Down buttons to change this number.
-
Page 16: Setup
With cursor still in the hundredths digit, use the yellow Scroll Up or Scroll Down buttons to change this number. When the desired hundredths digit is set, press and release the red Scroll Left key once. The underscored cursor will now be positioned in the tenths digit as shown above in Figure 15. - Page 17 Figure 19 Options 1 and 2 are used for setting up the low and high range limits that were explained in section 4.6. The low and high range limits are calculated as follows: low range = median(value) – limits(value) high range = median(value) + limits(value) Example: median = 25, limits = +5.
-
Page 18: Powering Off The Meter
Now setup the probe. Each probe sold with each Sonic Meter has a unique sensitivity value. Because of this, the probe sensitivity value will have to be changed whenever the probe is switched among meters or a probe has been replaced due to damage. If this is not done, the accuracy of the measured value will change by a small amount. -
Page 19: How To Take Measurements
4.10 How to take measurements Follow the manufacturer’s operating procedures before operating ultrasonic cleaners: set the proper degas and temperature settings. Quick real time scrub-force readings: The real time reading mode allows for a quick estimate of the scrub-force at a particular point. -
Page 20: Appendices
1. Batteries need to be recharged. 2. Batteries were improperly installed. (refer to section 4.1) 3. Circuit breaker has tripped. (refer to section 4.1 and 4.2) 4. Circuit fault unknown (return to SyncroCraft) Meter fails to power off: 1. Circuit fault unknown (return to SyncroCraft) Pressure reads zero when tanks are on: 1. -
Page 21: Parts List
Sonic Meter materials and workmanship for a period of 12 months from the date of shipment to the original purchaser. SyncroCraft, LLC will, at its option, repair or replace products that prove to be defective. The foregoing warranty shall not apply to defects resulting from improper use or modification.
