V5 (02.06.2020)
Bubble Sinbad
s a Vintage glider / Motor-glider designed by RC-Laserkit in classic wood
i
construction.
This model may be easily modified to supprot brushles motorization.
The particularities:
• laser-cut all-wood construction with dovetailed and weight-optimized,
• component-transport friendly due to two-piece wing,
• optionally with motor Pod for electric drive
The kit:
The model may be build on a plane surface of 1,5m x 0,5m.
The wings are constructed with an intro leading edge, pine spars, light plwoody ribs, balsa planking.
The stabilisator is constructed using a plywood template. The laser-cut ribs are accurately
positioned and positively positioned with the support feet in the auxiliary template which allows a
structure without a blueprint.
The wing joiner is handled by a 6mm steel rod to be bend to obtain 14 grades dihédral angle.
1
Advertisement
Summary of Contents for RC-Laserkit Bubble Sinbad
- Page 1 V5 (02.06.2020) Bubble Sinbad s a Vintage glider / Motor-glider designed by RC-Laserkit in classic wood construction. This model may be easily modified to supprot brushles motorization. The particularities: • laser-cut all-wood construction with dovetailed and weight-optimized, • component-transport friendly due to two-piece wing, •...
- Page 2 Leading Edge diameter 5mm 1000 Edge 1 Windshiel 0,5 Template to be downloaded from 1000 mm PVC www.rc-laserkit.com 1 steel rods dihedral to be set to 14° in total 2 brass pipe diam. Wing joiner 7 x 0,6 1 pine strip...
- Page 3 Necessary building material: • For the construction of the model we recommend a construction kit with the dimensions 1500mm x 500 mm • CA glue, wood glue. Recommended RC equipment: • Battery (4 cells Eneloop 750 mAh (AAA size) • 3-channel receiver with normal range •...

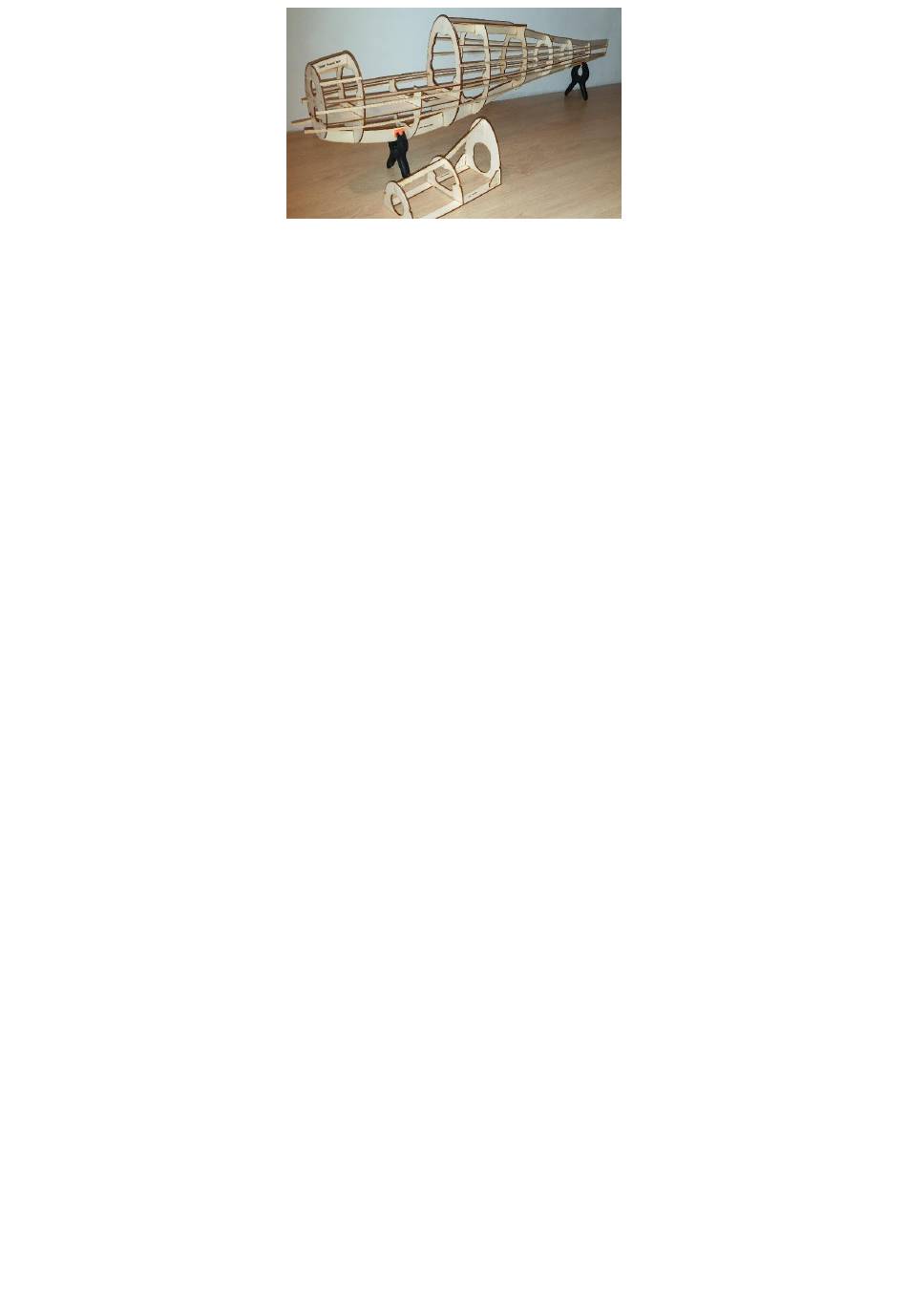

- Page 4 1. Fuselage Prepare fuselage spar. Glue together the two parts of fuselage upper Spar 1. Rudder Assemble R1, R2, R8, R7 on the fuselage spar R3 . It is easier to do it now to be able to build the rudder on a plane surface. on the latest version R3 is part of the fuselage upper spar ! ...
- Page 5 F3b, make sure formers are perpendicular to DH1. Place the Fuselage upper spar and the fuselage side spars. Be sure F10 is perpendicular to fuselage upper spar. Place the pine 3x5 strips all around on the side of the fuselage ...
- Page 6 2. Stabilisator Immobilize the building template on the building board. Make sur it is plane. Insert the ribs in the template slots Place the horizontal leading in ply 1mm edge and glue it ! Place the 3mm ply trailing edge and glue it ...
- Page 7 3. Wings Use a right reference like on the picture the yellow Ruler to align the trailing edge: Insert the ribs in the main vertical slotted spar and the horizontal slotted railing edge maintain all of it with elastic braces so it is aligned with the ruler.
- Page 8 At the root remember to respect the 7 grades inclination for dihedral Once glue is cured, you can glue the top 15x4 spar in place and the top 8x1.5 spar also Glue the trailing edge diam 5mm ...
