EILEEN GRAYS RE-022 General Information

This remote controller is designed to separately control your ceiling fan speed and light on and off.
There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off.
The light button will control the light on and off.
The red indicator on the transmitter will light when one of the five buttons is pressed.

1.SETTING THE CODES

To set the codes, perform the following steps:
A. Setting the codes on the transmitter:
a. Remove battery cover. Press firmly on the arrow and slide battery cover off.
b. Slide code switches to your choice of up or down position. (Factory setting is all up. Do not use this position. Use a
Small screwdriver or ball point pen to slide firmly up or down (Figure 1)).
B. Setting the codes on the receiver:
The Learn Key must be pressed with in 30 seconds, after pressing the Power button.
If not, please press the Power button to restart.
Keep pressing the button learn key in excess of 3 second it becomes a LEARN status.
The receiver can remember the last codes status .The light flash two times.

2.INSTALLING RECEIVER IN CEILING FAN

A. Safety precautions:
WARNING: HIGH VOLTAGE! Disconnect power by
removing fuse or switching off circuit breaker.
Do not use with solid state fans.
Electrical wire must meet all local and national
electrical code requirements.
Supply for fan must be 110/120 volt, 60Hz. Maximum
fan motor amps: 1.0, Maximum light watts: 180
incandescent or ballast and LED.
Otherwise power can cause serious injury or death.
B. Installing receiver in fan:
a. Remove power from the circuit.
b. Remove ceiling fan canopy from the mounting
bracket.
c. Disconnect existing wiring between ceiling fan and
Supply in electrical junction box.
d. Make connections as follows, using the wire nuts
supplied:
FROM POWER SOURCE
AC 110~120 VOLT 60Hz
3.5AMPS.
WHITE
WHITE
WIRE NUT
Use wire connecting nuts
supplied with the remote
controller.
Remote controller
GENERAL INFORMATION

INSTRUCTION OF INSTALLATION AND OPERATION

Use wire connecting nuts supplied with the fan
(FIG.3)
WHITE
RED or BLACK
INPUT
OUTPUT
BLUE
BLUE
CANOPY
LEARN
TRANSMITTER
CAUTION: Ceiling Angle Shall Not Exceed 30 Degrees,
For Mounting Controller, Model RE-022
CONNECT TO
Green fan wire ....Bare supply wire
Red or Black receiver wire(AC IN L) ....Red or Black supply wire
White receiver wire(AC IN N) ....White supply wire
White receiver wire(TO MOTOR N) ....White fan wire
Black receiver wire(TO MOTOR L) ....Black fan wire
Blue receiver wire(FOR LIGHT) ....Blue light wire
ANT
ANTENNA PUT AT OUTSIDE
OF CANOPY BOX CAN GET
MORE OPERATION
DISTANCE
ACN
ACL
RECEIVER
INPUT
CODE
COM
CODE
OUTPUT
COM FAN
RECEIVER

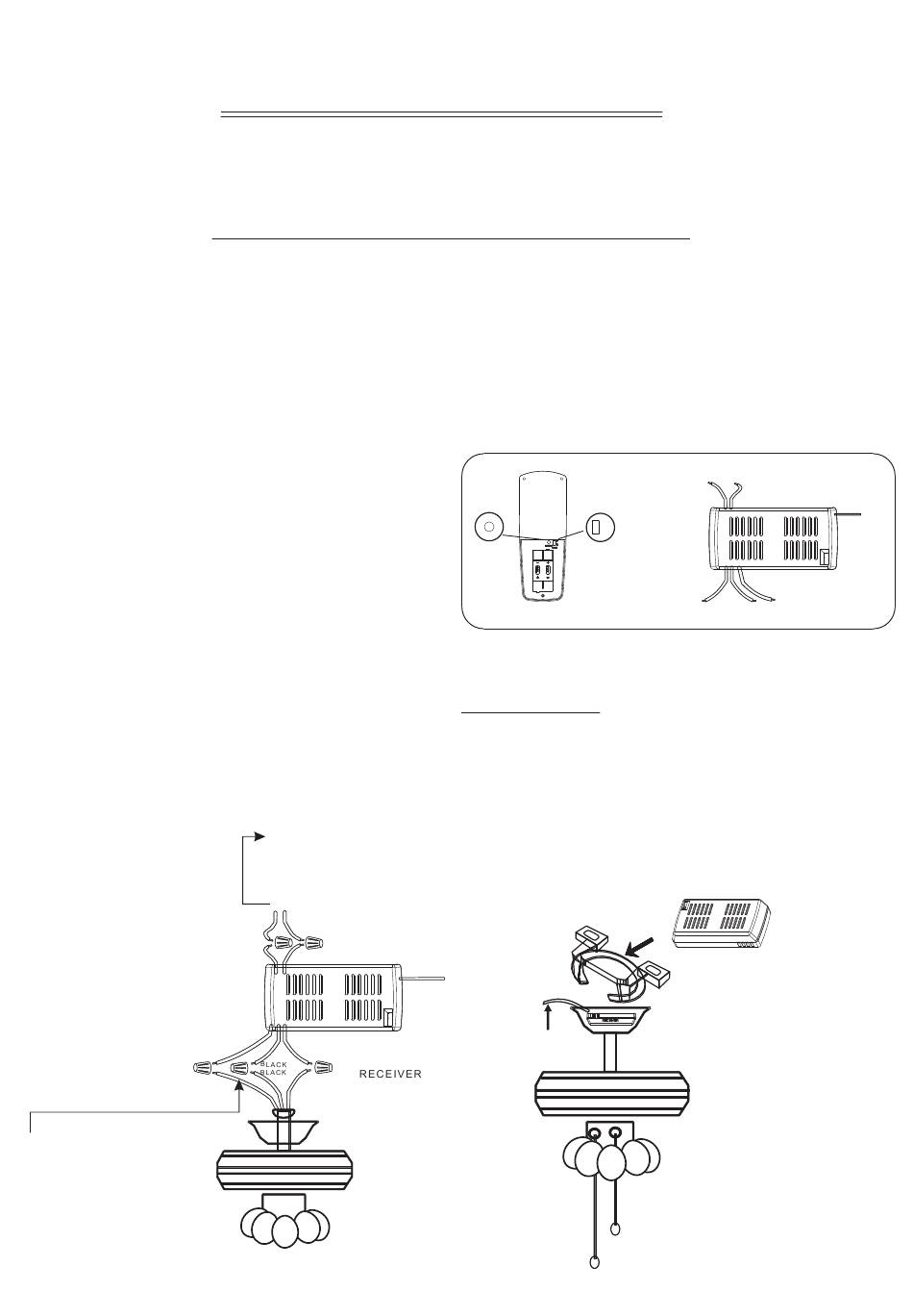

(FIG.4)
CANOPY
LIGHT MUST BE KEPT AT THE ON POSITION
F A N M U S T B E K E P T A T T H E H I G H S P E E D
ANT
LIGHT
FIG1
