Summary of Contents for Sparked Innovations FANNIE

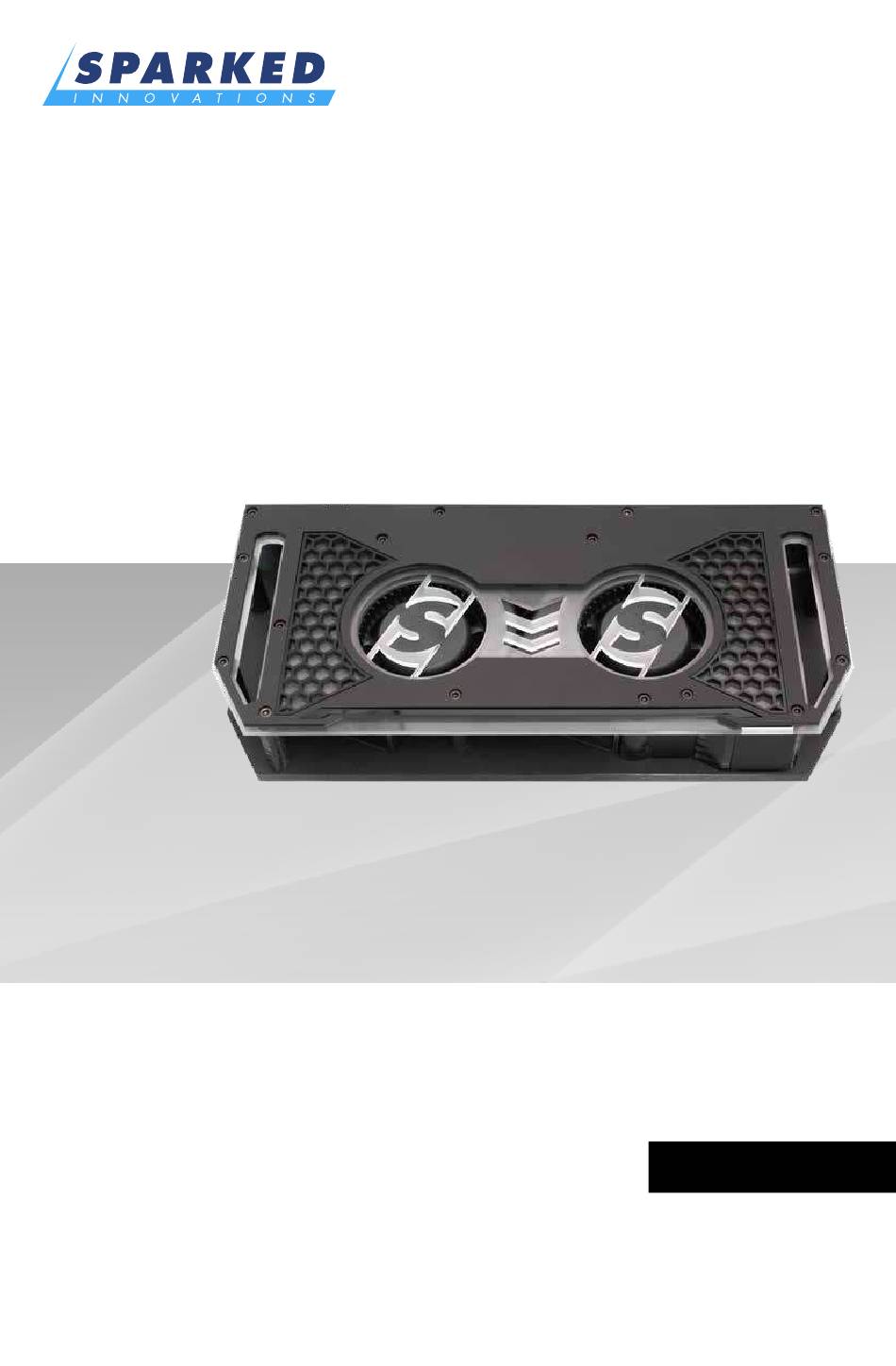

- Page 1 FANNIE User Manual English User Manual Fannie v1.0 Patent Pending...
- Page 2 Fannie, vehicle, or accessories. Damage caused due to improper installation is not covered under warranty. Fannie is not waterproof; as a result, Sparked Innovations does not recommend underhood or exterior mounting. Externally mounting the unit may cause a person to suffer ridicule from friends and risks the possibility of becoming an internet meme.
- Page 3 14. Connect the Negative (-) Power Wire to the black wire of your Fannie If running your Fannie on a switch, make sure the switch is rated at 5A or above. Otherwise, run it to a relay that is rated at at least 5A. We recommend the use of a Sparked Innovations RBX-4CH relay box for easy switching.
-
Page 4: Example Setups
The highest velocity air current comes from Fannie’s far side. Be sure to offset Fannie so the air blows along the amp’s side heat sink. - Page 5 Using optional standoff brackets, Fannie can be raised to a desired height and send air both alongside and across the top of the amplifier’s heat sinks. This increases the surface area that the air current is cooling, providing a more efficient exodus of hot air.
- Page 6 Utilize the fastest air current to send air rushing down the side heat sink. The highest velocity air current comes from Fannie’s far side. Be sure to offset Fannie so the air blows along the amp’s side heat sink.
- Page 7 Using optional standoff brackets, Fannie can be raised to a desired height and send air both alongside the heat sinks and across the top of the amplifier. This increases the surface area that the air current is cooling, providing a more efficient exodus of hot air.
- Page 8 3. Cooling two amplifiers with one Fannie a. Place your Fannie’s channel of air directly between both amlifiers. Be sure to offset your Fannie from the centerline between the two amps since the air current is not centered.
- Page 9 When grouping together two Fannies to cool two adjacent amplifiers, place your Fannies’ air channels so that they both flow down the outer side of each amplifier. Remember that your Fannie’s air current is not centered with the housing, so you will have to offset it from the amplifier’s centerline.
- Page 10 1-Year Limited Warranty Sparked Innovations warranties this product to be free from defects in material or workmanship for one (1) year following the date of purchase, provided that the product is used in the proper environment. This limited warranty does not cover...
-
Page 11: Specifications
SPECIFICATIONS Features Self-contained amplifier cooling fan unit ● ● Two mounting orientations ● Decorative illumination ● Designed, engineered, and handcrafted in the U.S.A. ● High quality PCB circuit integration Low profile design ● Wide airflow cross-section optimized for amplifier cooling ●... - Page 12 151 Discovery Drive, STE 115, Colmar, PA 18915 Tel.: (833) 355-5554 ● Email: support@sparkedinnovations.com https://sparkedinnovations.com © Sparked Innovations, LLC 2020...
