Summary of Contents for Segvator Segvator

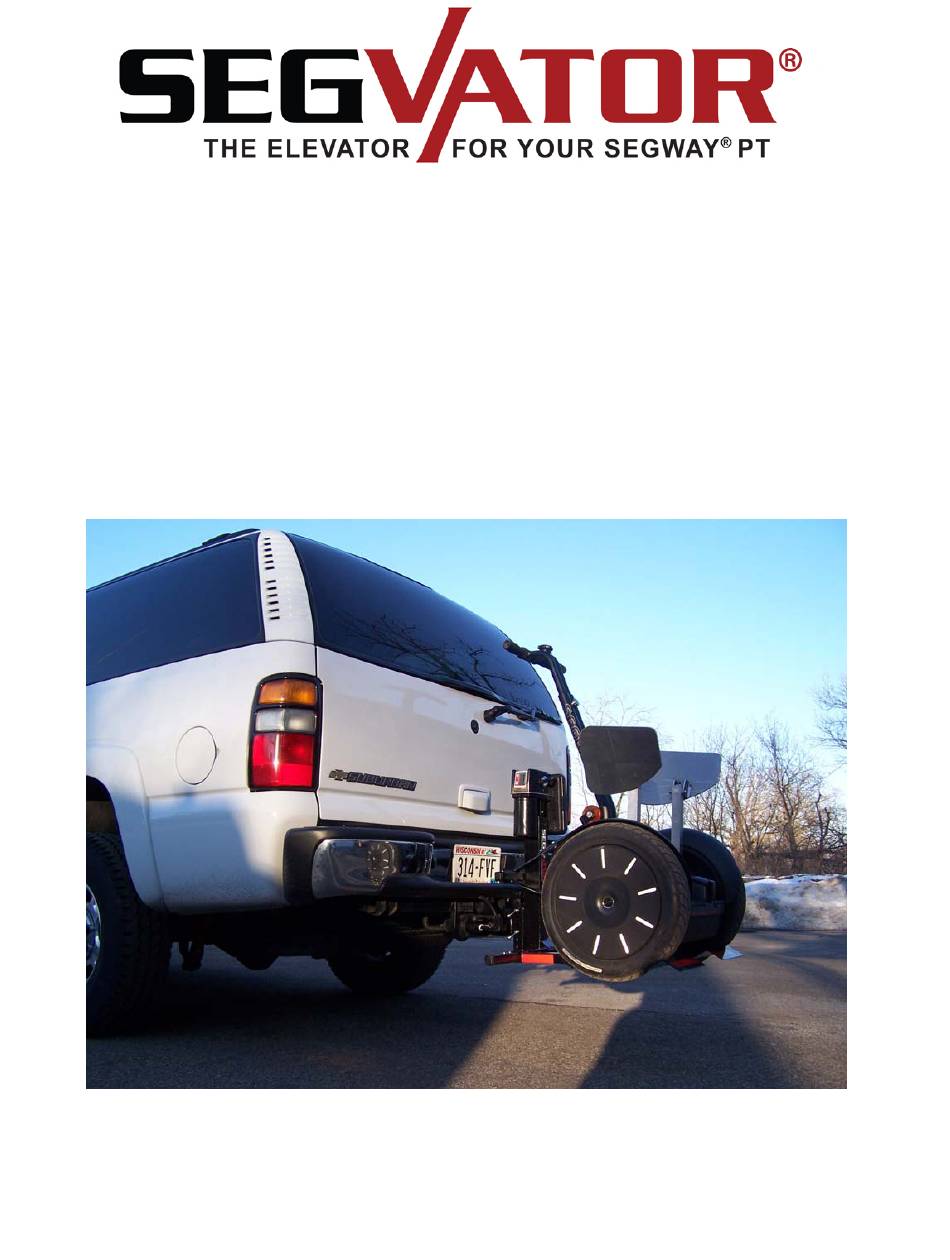

- Page 1 Installation & Operators Manual Model ________________________ Serial Number _________________ Purchase Date _________________ ©2007-2008 SegVator ® , LLC Patent Pending All Rights Reserved...
-
Page 2: Important Safety Information
PT while in dual mode. You must haul two Segway PT’s ® while in dual mode to properly balance the load on SegVator . If you have a dual version, ® switch to single mode for hauling only one Segway Do not attempt to use the emergency crank handle while the power is connected. - Page 3 Before beginning installation, please verify the following: ® The vehicle hitch type and class is of adequate capacity to handle the weight of SegVator ® and the Segway PT(s) and the hitch is properly installed. The vehicle has a standard 7-way round RV style electric plug installed with the aux.
- Page 4 Parts Identification List ® SegVator Base Unit Single LH Single RH Carry Arm Carry Arm Dual LH Dual RH Carry Arm Carry Arm Emergency Hitch Tube Crank Handle w/Pins Dual LH Single LH Single RH Dual RH Locking Arm Locking Arm...
- Page 5 Parts Identification List Light Toggle Switch and Emergency Crank Handle Connection Point Emergency Crank Handle Usage...
- Page 6 Parts Identification List Hitch Tube Dual Height Adjustment Hitch Pin Pins Locking Arm Mounting Bracket Dual Height Adjustment Pin Bracket Carry Arm Mounting Bracket...
- Page 7 ® Disconnect charge plug(s) from your Segway PT(s) before lowering SegVator . Damage ® ® may occur to either SegVator , the power inverter or the Segway PT(s) if you attempt to lower the unit with the charge cord(s) plugged-in.
- Page 8 Install the hitch tube into the vehicle hitch receiver and install the single hitch pin and ® cotter key supplied with SegVator Use the hitch pin hole that allows the hitch tube to remain in as far as possible while still...
- Page 9 Hitch Tube Installed.
- Page 10 Step 2 ® Remove SegVator from package. Install carry arms and locking arms as shown. ® SegVator will be able to stand on its own at this point with the carry arms in the transport mode.
- Page 12 Step 3 ® Position SegVator directly behind the hitch and attach the electric plug to the vehicle.
- Page 13 Step 4 ® Depress the down (lower) portion of the toggle switch on SegVator to fully extend the unit for alignment purposes.
- Page 14 Once the maximum height is reached, retract unit slightly (up toggle on the switch) to align with the closest set of dual height adjustment pin holes.
- Page 15 ® Secure the dual height adjustment pins attaching SegVator to the hitch tube with pins provided.
- Page 16 This method should provide the highest pin height and ground clearance fully retracted (raised) as possible while insuring the unit will reach ground level in the fully extended (lowered) position. Keep the dual height adjustment pins spaced as far away from each other as possible with the available alignment holes to insure optimum stability and load balance.
- Page 17 Single transport mode carry arms pin all the way in on the carry arm mounting bracket for all models except the X2.
- Page 18 Carry arms mount between the locking pins for transporting the X2 model. This is for single mode only.
- Page 19 ® Set locking arm roller length for the Segway PT model being transported. Long (as shown above) for i2 model and short (next photo) for all other models. Use (2) two ½ inch wrenches to change spacing for your specific model, if necessary.
- Page 21 Step 5 ® If you have the dual SegVator option (if not go to Step 6), remove the single locking arms and install the dual locking arms. Install the dual carry arms adjacent to the single carry arms. See the following pages for proper settings for the carry arms and locking arms.
- Page 22 X2 Only Multiple options are available for transporting in dual mode. Use the inside most pin settings on the carry arms for all models except the X2. For the X2, keep the inside carry arm all the way in and use the outside pin setting on the dual carry arms as indicated in the orange arrows.
- Page 23 Slide Out Standard to Second Setting – Setting for All Models Except X2 Use the innermost locking arm setting for all models except the X2. Use the outermost locking arm setting for the side transporting the X2. Adjust the locking arm rollers on each side for the models being transported (see next photos).
- Page 24 i2 Model Only – Long Setting All Models Except i2 – Short Setting...
- Page 25 ® ® haul the Segway PT in the center of SegVator . Do not haul only one unit on either side – always haul a single unit in the center of the carrier.
- Page 26 This is a safety feature to insure proper voltage and battery condition preventing potential battery drain. ® ® The Segway PT must be turned completely off before transporting on SegVator...
- Page 27 SegVator , LLC, 11200 W. Silver Spring Rd., Milwaukee, Wisconsin, USA, 53225, warranty@segvator.com or contact us at 414-461-9100. The costs, expenses and all risks associated with shipping for returning the Products, as well as the costs and expenses of getting the Products from us are your responsibility.
