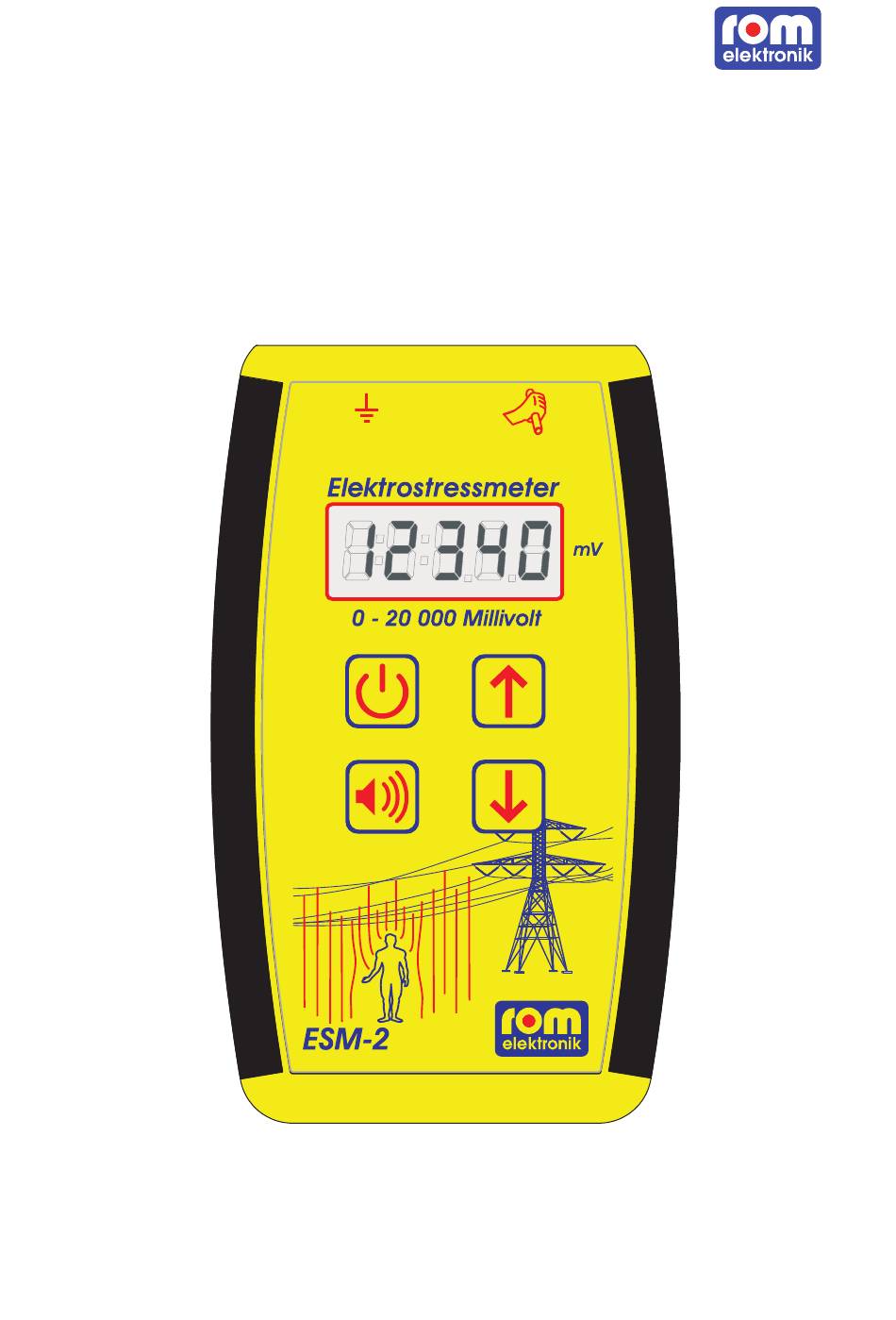

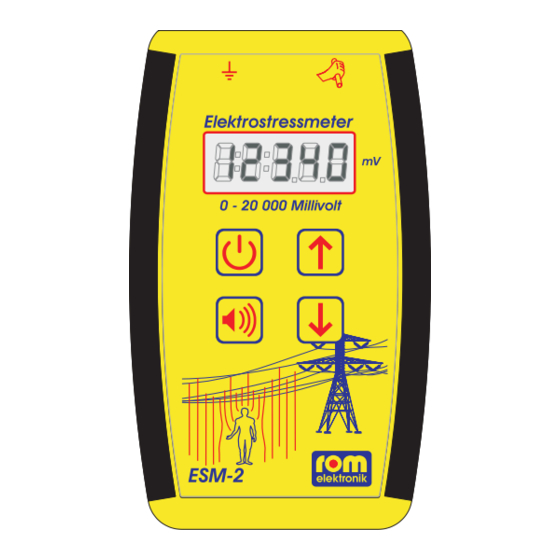

- Page 1 Elektro-stress-meter ESM-2 Electro-stress measuring device Page 1...
-
Page 2: Table Of Contents
Content Operating Manual! ESM-2 Electro-stress measuring device! Application! Quick-operating manual! Device preparation! 2. Person preparation! 3. Measurement! Funktion der Tasten! Switch on and off! Sound! Ranges! Scope of delivery and technical data! Measurement preparations! Evaluation of the results of measurement! -
Page 3: Operating Manual
The ESM-2 always indicates the success of the respective measure unambiguously in this case and helps you to undertake the correct steps. - Page 4 CAUTION Employ the ESM-2 measuring device only for the measurements described in these directi- ons. Contraventions can result in destruction of the measuring device. ➏ ➐ ➊ ➋ ➍ ➌ ➎ Page 4...
-
Page 5: Quick-Operating Manual
ESM-2 ➐ • Insert the green-yel- low cable on a groun- ded plug socket into the ESM-2 other socket ➏ • Switch device on by pushing ➋ 2. Person preparation • Lie down in your bed as usual •... -
Page 6: Funktion Der Tasten
Funktion der Tasten Switch on and off ➋ !a push on this button switches ESM-2 on and off. Sound ➌ !a push on this button switches the sound on and off. The tone highth is proportional to the reading value. A lower value generates a low frequency tone and high reading generates a higher frequency. -
Page 7: Scope Of Delivery And Technical Data
200 mV 2000 mV 20000 mV Scope of delivery and technical data The ESM-2 electro-stress measuring device consists of the following scope of delivery: • ESM-2 E-stress measuring device • Carrying case ready for use • Ground wire with plug incorporating grounding contact; 3 m length •... -
Page 8: Measurement Preparations
Measurement preparations The body voltage caused by electrical alternating fields of the power supply (capacitive body coupling voltage) is basically measured bet- ween the person located in the field and ground. The approx. 3 m long grounding line is therefore provided with a mo- dified grounding type plug, which connects the measuring device with ground, via the protective ground conductor of the power supply, on insertion into a plug socket. -
Page 9: Evaluation Of The Results Of Measurement
Evaluation of the results of measurement With the electro-biological evaluation of the results of measurement, a distinction is made between the contamination loading at the sea- ting area or workplace and at the sleeping area. During the rest pha- se, the body should relax maximally stress-free and be able to rege- nerate, so that more severe demands are placed on the sleeping area. - Page 10 ✓ Switch off all electrical appliances and lamps in the bedroom and in the adjacent rooms one after another and pull out the plugs from plug sockets in addition, where possible. Observe the chan- ges of the electro-stress measured value on the measuring device following every step and note down this value.
-
Page 11: Still An Important Reference
Still an important reference: The ESM-2 electro-stress measuring device measures the body vol- tages resulting from electrical alternating fields. Except for this loading through electrical alternating fields, increased values of magnetic alternating fields can also have an effect on the body as stress e.g. -
Page 12: Liability And Guarantee
Fax No.: 08282-7305 or on Tel.: 08282- 7385 with operational questions about the device. We wish you a lot of success with the ESM-2 electro-stress measu- ring device, so that you and your family can again relax and live free of electro-stress.
