horiso SPECIALTY VENETIAN BLINDS Nstallation Manual

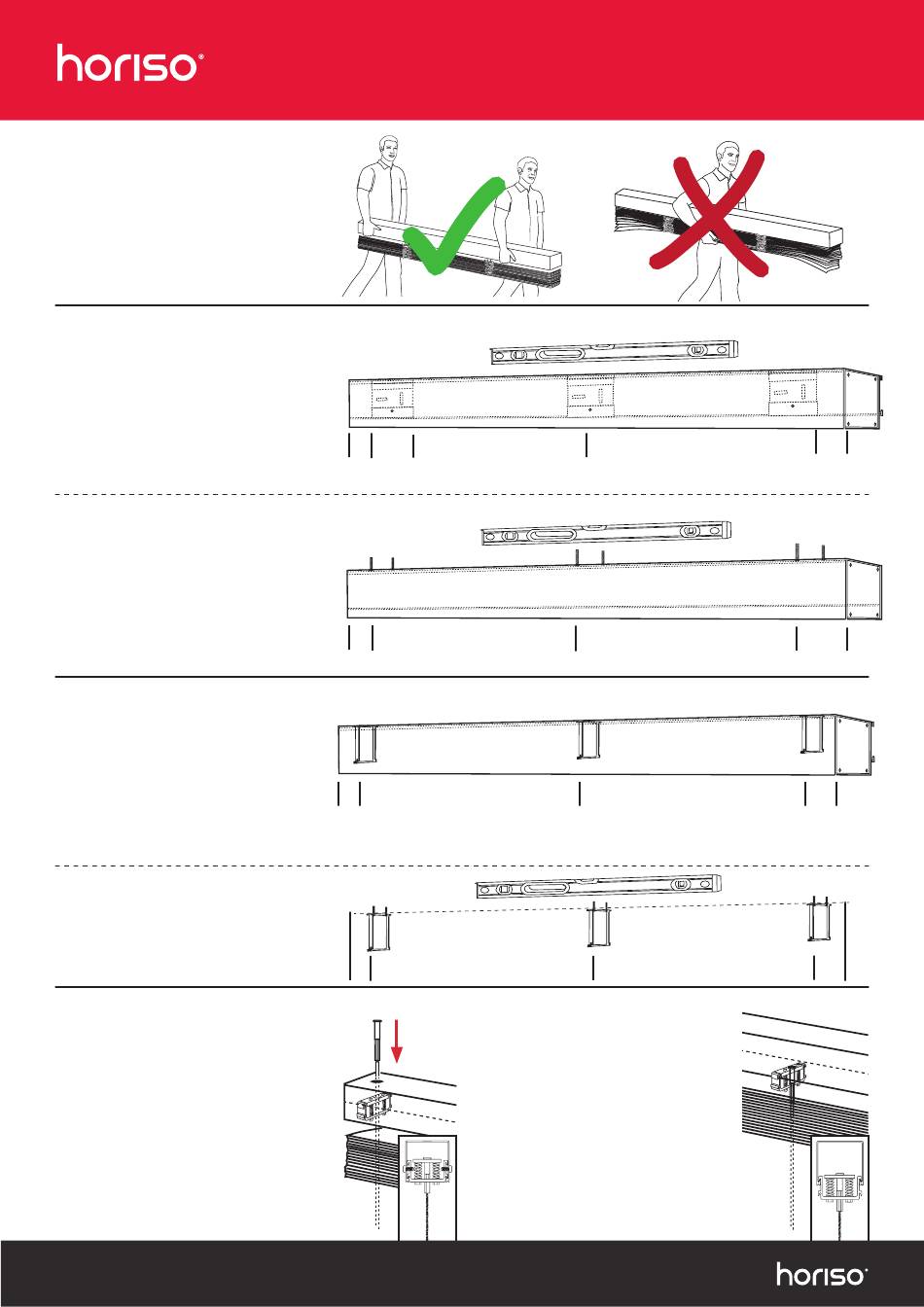

1 - CARRYING / HANDLING

Unpacking SVB
Carry blind by head rail ONLY. Two installers
should carry blind at ALL times.
Warning: Be careful using scissors or knife to
unwrap blind, as you may seriously damage
blind coating or components.

2 - PELMET SET OUT

Face fix pelmet
Pelmet wall brackets should be installed
maximum 250 mm in from each end and
spaced maximum 800 mm apart. Use a
spirit level to ensure pelmet is level.
NOTE: For AK-G, remove pelmet end plate
and slide in gate bracket, before installing
pelmet.
Top fix pelmet
Fix pelmet according to width ensuring
pelmet does not bow or distort. 2 centre
lines are visible inside pelmet for drill
positioning. (Depending upon particular
situations, staggered fixing may be
required). NOTE: For AK-G, remove pelmet
end plate and slide in gate bracket, before
installing pelmet. Ensure level.

3 - GATE BRACKETS SET OUT

With pelmet
Gate brackets in Horiso pelmet or surface
fixing. Insert gate bracket at either end
of the blind maximum 150 mm in from each
end and with a maximum width of
600 mm apart. NOTE: For AK-G, remove
pelmet end plate and slide in gate bracket,
before installing pelmet.
Surface fixing without pelmet
Fix gate bracket at either end of
the opening maximum 150 mm in from each
end and with a maximum width
of 600 mm apart. Ensure level.
To determine the front/out-facing side of the
blind locate the Horiso sticker on the right
hand side, third slat from the bottom.

4A - INSERT SIDE CABLES

Insert supplied cable guide through access
hole in top of head rail at both ends and thread
cable through slat pack. Ensure mushroom
head is inserted correctly on top of spring
tension bracket. (Do not remove cable ties
on tension bracket at this point.)
Ensure cables are running
parallel with each other and check diagonal.
