SCIBORG HV-300 User Manual

HV - 300 USER GUIDE
BACKING ALERT with AUTO SPEED LOCK
This product functions with select TOYOTA vehicles only. See Vehice Compatibility Chart.
Visit our website for the absolute latest information on vehicle compatibility.

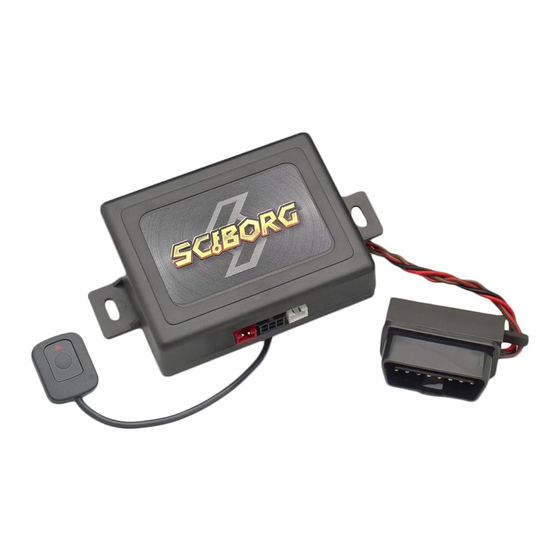

Thank you for purchasing the HV-300 Backing Alert System. Please read this manual in
its entirety before using the product. Be sure to store this manual in a safe place, as you
may need to reference it in the future.
WARNING
The included wire harness and connectors are specially made for the HV-300 only. Please do not splice off the CAN or POWER wires, and do not use this
harness or connector with any other device; otherwise, a short, fire, or vehicle breakdown may occur.
NOTE
Product or vehicle failure could result from ignoring the following:
This product is primarily intended for use on Japanese vehicles within Japan.
•
Modifying this product voids the warranty and could cause harm to your car or yourself.
•
Never mount this product to vehicles other than shown in our Compatibility Chart. Japanese vehicles made outside Japan may be incompatible.
•
NEVER store or mount this product where water, oil, dirt, or moisture collects, or where there is intense heat or steam present as such may cause
•
product failure. This product is not dust-proof, waterproof or splash-proof.
Our company shall not be held liable for traffic accidents that occur with or without the presence of this product.
•
Specifications of this product are subject to change without notice.
•
ALWAYS confirm that your installer has appropriate expertise and equipment to safely and properly install this product.
•
We have confirmed this product functions correctly when used with other DIGI-LINK products, but we cannot guarantee compatibility when used with
•
third party OBD CAN-BUS devices. Such devices may malfunction or may cause malfunction in the HV-300, or may even cause a vehicle warning light to
come on.
ALWAYS secure the product and wiring in a professional manner such that nothing loose could be caught or smashed by something in the car, become
•
lodged behind the foot pedals, or could cause an electrical short or fire or bodily harm.
Detects Ignition state and Gear Position. An alert will sound when in Reverse Gear (unless disabled by DIP switch or Disable Switch).
•
Backing Alert can be Enabled and Disabled by Disable Switch and by DIP Switch. The default DIP Switch setting is ENABLED.
•
Pressing the Disable Switch button lights its LED and temporarily disables the back alert beeping sound. To re-enable, simply press the Disable Switch
•
button again, or switch the engine OFF then ON. (When the LED is not lit, the backing alert beep is enabled.)
Two types of BEEPS can by chosen for the Backing Alert via DIP Switch (Long or Short).
•
When Enabled via DIP SW (default), doors automatically LOCK when the vehicle speed increases beyond 20km/h (approximately).
•
The UNLOCK trigger (for Auto Speed-Lock) can be set by DIP Switch. The default setting LOCKs when you return the gear to the "P" position.
•
Rapid deceleration (hard braking) will trigger the Emergency UNLOCK feature. Doors Unlock 9 seconds after you brake hard, when travelling 20km/h or
•
faster. (This is not guaranteed in a traffic accident where all electrical power is lost.)
TOYOTA COMPATIBILITY (Partial)
MODEL FRAME NO. YEAR
SAI (1) AZK10 2009(DEC.) & newer
2011 Dec. ~ 2015 Oct.
AQUA / Prius C NHP10
2010 Dec. ~ 2015 Jun.
VITZ / Yaris P13#
2011 Sep. ~ 2015 Sep.
Camry (1) AVV50
Corolla AXIO (&HV) E16# 2012(MAY.) & newer
Corolla FIELDER (&HV) E16#G 2012(MAY.) & newer
2014 Jan. ~ 2015 Dec.
NOAH (&HV) R8#
Harrier (&HV) (1) U6#W 2013(DEC.) & newer
2009 May. ~ 2015 Dec.
Prius ZVW30
Prius PHV ZVW35 2012(JAN.) & newer
Priusα / Prius v / Prius+ ZVW4#W 2011(MAY.) & newer
®
Ver. 02032016
PRECAUTIONS
PLEASE READ THOROUGHLY BEFORE USE
MAIN FEATURES
Full Version Chart
Compatible cars must have Smart Key!
(1) This vehicle comes with a factory-
installed Auto Speed Lock function.
NOTE: Cars newer than the above that
have been altered by the car maker may
be incompatible.
NOTE: Cars built outside Japan have
not been confirmed by us and could be
incompatible.
PRODUCT WARRANTY CLAIM
TOYOTA Backing Alert System
PRODUCT DESC.:
Warranty Period: 1 YEAR
(validated only by dealer and/or dated proof of purchase)
Date of Purchase*: Year: , Month:
Name:
Address:
Customer Info.*:
Phone:
Name:
Address:
Seller Info.*:
Phone:
* Please fill in these marked sections above completely.
Manufacturer:
Approval Stamp
NOTE: Warranty Claims not accepted without valid
Contact TEL:
Approval Stamp and/or dated proof of purchase.
PRODUCT SPECIFICATIONS
Operational Voltage
Absolute Max./Min. Voltages
Current Consumption
Oper. Ambient Temp. Range
(no condensation)
This product is not waterproof or dust-proof. Never install in the engine compartment.
Never install where water can pool or where oil, dirt and grime could enter and cause an
electrical short.
HV-300
MODEL:
, Day:
Email:
Website:
KIRAMEK, Inc.
9-183-1 Itayama-cho,
Handa-shi, Aichi-Ken 475-0936 JAPAN
(
Operating Hours (ex. Sat./Sun./Holidays):
+ 81-569-20-5585
10:00AM ~ NOON, 1:00PM ~ 4:00PM
+ 12Vdc
< 4.5mA
(while CAN sleeping)
WARNING!
)
