Summary of Contents for EHIGH EH100606A04-X
- Page 1 ForThink Technology Co., Ltd. Social Distance Watch User Manual...
-
Page 2: Table Of Contents
ForThink Technology Co., Ltd. 1. Introduction to Social Distance Watch .................. 3 1.1 Introduction ........................3 1.2 Exterior ..........................4 1.3 Product List ........................4 1.4 Specification ........................5 2. User Instructions ........................7 2.1 Product Components ..................... 7 2.2 Wearing Method ......................7 2.3 Charging Instructions .................... -
Page 3: Introduction To Social Distance Watch
ForThink Technology Co., Ltd. 1. Introduction to Social Distance Watch 1.1 Introduction System is a set of ranging system based on Ultra-Wideband Technology, which has the characteristics of high precision, large capacity, strong multi-path resistance and low power consumption. Watches worn on the person consistently monitor the distance to the surrounding watches. -
Page 4: Exterior

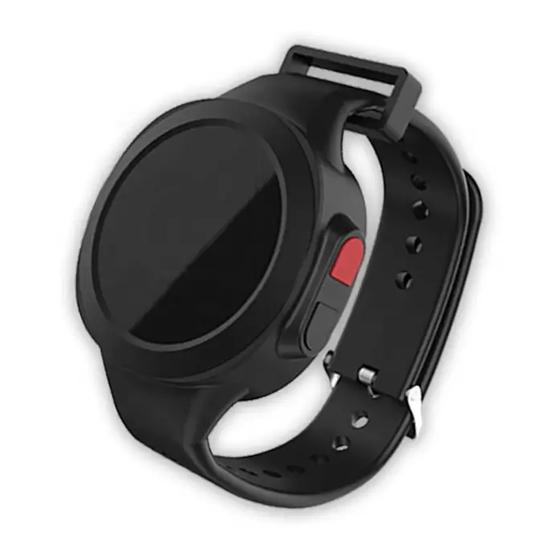

ForThink Technology Co., Ltd. 1.2 Exterior Figure 1-2 Front/Back views of Watch Figure 1-3 Left/Right views of Watch 1.3 Product List The product list is shown in the figure1-4. From left to right, there are the watch, charger, charging cable. -
Page 5: Specification
ForThink Technology Co., Ltd. Figure1-4 Product list 1.4 Specification Watch Specifications Product type：EH100606A04-X Dimensions：51×48×19.5mm Weight：≤85g Maximum battery life：≥10h Charge/Power Interface：Pogo Pin-4 Charging time：≤2h Low battery indicator：Yes Key interaction：Yes... - Page 6 ForThink Technology Co., Ltd. Vibration indicator：Yes LED indicator：Yes Working temperature: -20°C ~ 60°C Storage temperature: -20°C ~ 85°C Working humidity: 0~95% non-condensing Protection level: IP67 Material：PC+ABS ，TPU Battery type: lithium polymer battery Battery level: 800mAh Charging voltage/current：5V/430mA Ranging wireless standard: 802.15.4_2011UWB Ranging antenna gain：≤0.5dbi Ranging method：TOF...
-
Page 7: User Instructions
ForThink Technology Co., Ltd. Typical transmitting power of ranging：-41.3dbm/MHz Acceleration sensor: 3 axis 2. User Instructions 2.1 Product Components As shown in the figure below, the watch provides two buttons, indicator lights and charging interface. Figure 2-1 Product components 2.2 Wearing Method 2.2.1 Schematic Diagram of Wearing... - Page 8 ForThink Technology Co., Ltd. Figure 2-2 Front view Figure 2-3 Back view 2.2.2 Wearing Method Watchband through arm...
- Page 9 ForThink Technology Co., Ltd. Watchband passes through the metal buckle, then make the watchband adjusted to the proper position. And the buckle needle passes through the watchband hole After the buckle needle passes through the watchband, fasten the buckle with the fixing ring...
-
Page 10: Charging Instructions
ForThink Technology Co., Ltd. 2.3 Charging Instructions 2.3.1 Charging with Charger Use the charger and charging cable to complete the charging, as shown in the figure below. Figure2-4 Schematic diagram of charging... -
Page 11: Interactive Instructions
ForThink Technology Co., Ltd. 2.4 Interactive Instructions 2.4.1 Operating Instructions Power On: If product is in the power-off state, press and hold the right(red) button for more than 3 seconds. When you feel the vibration and see the LED flash, it means product is power-on successfully. -
Page 12: Fcc Statement
’s authority to operate the equipment. FCC ID：2AWQO-EH100606A04-X NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 13 ForThink Technology Co., Ltd. The device must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
