Electro Scan ES-38 User Manual

Sewer leak detection for sewer laterals
Hide thumbs

Advertisement

Quick Links

Download this manual
TM
ES-38
for
Sewer Laterals
User Guide
Copyright
2012 Electro Scan, Inc. All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES-38 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electro Scan ES-38

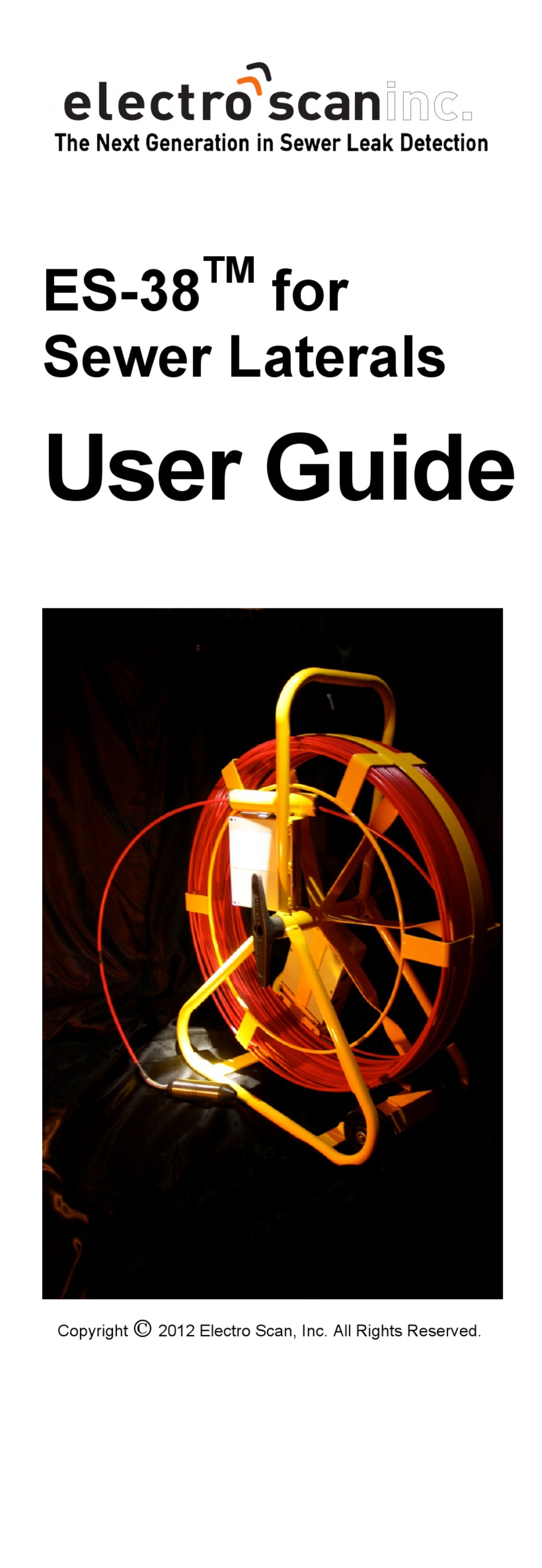

  • Page 1 ES-38 Sewer Laterals User Guide  Copyright 2012 Electro Scan, Inc. All Rights Reserved.

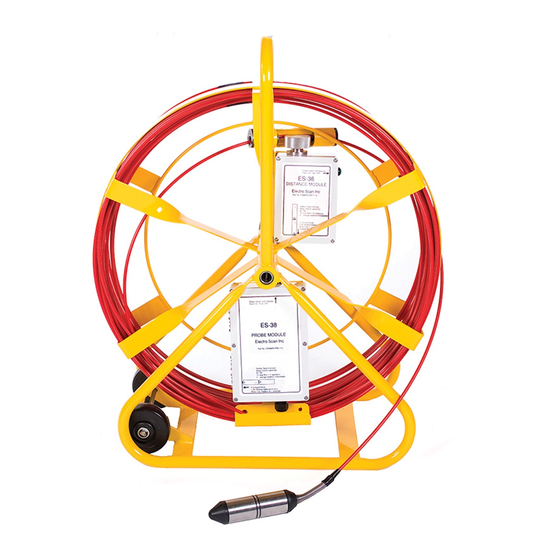

  • Page 2 Electro Scan Inc. ES-38 User Guide ES-38 for Sewer Laterals Distance Reel Module Ground Connection Probe Module Probe ES-38 Air Push Rod Plug Zebra RW420 Printer Smartphone Salt Solution Accessories Diffuser 50 ft. Flat Hose Ground & Metal Stake Calibration Reel...
  • Page 3 ES-38 for Sewer Laterals, User Guide, Version 1.1 Released April 2012 This document is confidential and is owned by Electro Scan Inc. Use, examination, reproduction (even partial) in any format, transfer and/or disclosure to others is strictly prohibited except by express written agreement of Electro Scan Inc.
  • Page 4 As a result, the ES-38 is your new tool of choice to help you cost-effectively find pipe defects and confidently recommend fixes to your Customer.
  • Page 5 ES-38 User Guide Using the ES-38 Sewer Laterals Electro Scan Inc. has designed the ES-38™ for Sewer Laterals and its Smartphone App to be as straightforward, as possible. Before you begin using the ES-38™, please verify the following conditions: •...
  • Page 6 B. Assigning Bluetooth Devices to Smartphone After pairing your Smartphone to Electro Scan’s three devices, you still must ensure that the Electro Scan Smartphone App recognizes each Bluetooth device with the application. This is a one-time set-up, but it’s always recommended to check before starting your scans.
  • Page 7 Electro Scan Inc. ES-38 User Guide 3. Touch the MENU button of your Smartphone, i.e. not on the screen of the Smartphone App, to display a pop-up menu. 4. Touch the HARDWARE SETTINGS button on your Smartphone app. 5. Enter the...
  • Page 8 Electro Scan Inc. ES-38 User Guide C. Checking Batteries for Distance & Probe Modules Your Distance Module takes four (4) AA batteries, while Probe Module takes eight (8) AA batteries, both containing a Battery State Indicator (Green) light. Follow the instructions on each module label, and change batteries immediately, if flat.
  • Page 9 Electro Scan Inc. ES-38 User Guide E. Checking Printer There are three (3) key aspects to check on your Zebra RW420 Printer, including (a) sufficient battery power, (b) paper supply, and (c) assigned Bluetooth Mac address. 1. Battery Power. Make sure your battery has been properly charged.
  • Page 10 Electro Scan Inc. ES-38 User Guide 2. Arriving at a Customer’s Site A. Entering Your Customer Information We recommend entering Customer Data before you get out of your vehicle. This ensures more face time with your Customer and fewer mistakes. You can...
  • Page 11 1. Connect the Alligator Clip to the pin, located inside the reel axle. 2. Turn ON BOTH Distance and Probe Modules, located on the ES-38 reel, by pressing the Green Button. 3. From the Smartphone App’s Main Screen, touch CHOOSE SCAN...
  • Page 12 5. Connect the black wire to the Red socket marked “Center.” 6. Touch the Ground Reel Alligator Clip, between the Center Lines of the Main ES-38 Probe. 7. Ensure a Yellow indicator displays approximately 75% of the Defect bar (See Left).
  • Page 13 3. Preparing the Sewer Lateral A. Plugging the Sewer Lateral 1. Open the clean out. 2. Push the inflatable plug from the ES-38 Push Rod, into the sewer lateral getting as close to the lateral’s sewer main connection as possible.
  • Page 14 4. Electro Scanning the Sewer Lateral A. Starting an Electro Scan 1. Turn on BOTH Distance and Probe Module units of the ES-38 2. Using your ES-38 Smartphone App, touch CONNECT TO PROBE button to begin receiving Current Values. B. Checking the...
  • Page 15 Electro Scan Inc. ES-38 User Guide 3. SELECT 2.0 ft. if using the mark, and Zero if the end of the Probe is touching the bottom pipe. 4. When the pipe cleanout connection is covered with water, check the total current value that is displayed on the Total bar graph.

  • Page 16: Special Note

    Electro Scan Inc. ES-38 User Guide 2. Pull the probe back along the pipe at the speed (i.e. Velocity of Pull) shown in the Chart below: The Rate displayed on the graph represents the speed the Probe is pulled through the pipe.
  • Page 17 ES-38 User Guide 4. Touch STOP and follow the steps shown on the ES-38™ Smartphone App to Save the scan data. The scan information may be entered/edited at this time by using the Scan List screen. 5. Turn OFF the Distance and Probe Modules.
  • Page 18 Location of the sewer lateral. This feature helps to document the type of conditions at the Customer’s Job Site, in addition to helping to sell additional pipe lining, repair, and replacement services. 4. Save and Send your Electro Scan information.
  • Page 19 5. Cleaning Up and Securing the Job Site A. Deflating the Plug 1. Releases the water from the pipe. 2. Ensure that the plug for the ES-38 Air Push Rod is secure, as the water will tend to wash it down the pipe.
  • Page 20 ES-38 for Sewer Laterals, User Guide, Version 1.1 Released April 2012 This document is confidential and is owned by Electro Scan Inc. Use, examination, reproduction (even partial) in any format, transfer and/or disclosure to others is strictly prohibited except by express written agreement of Electro Scan Inc.
