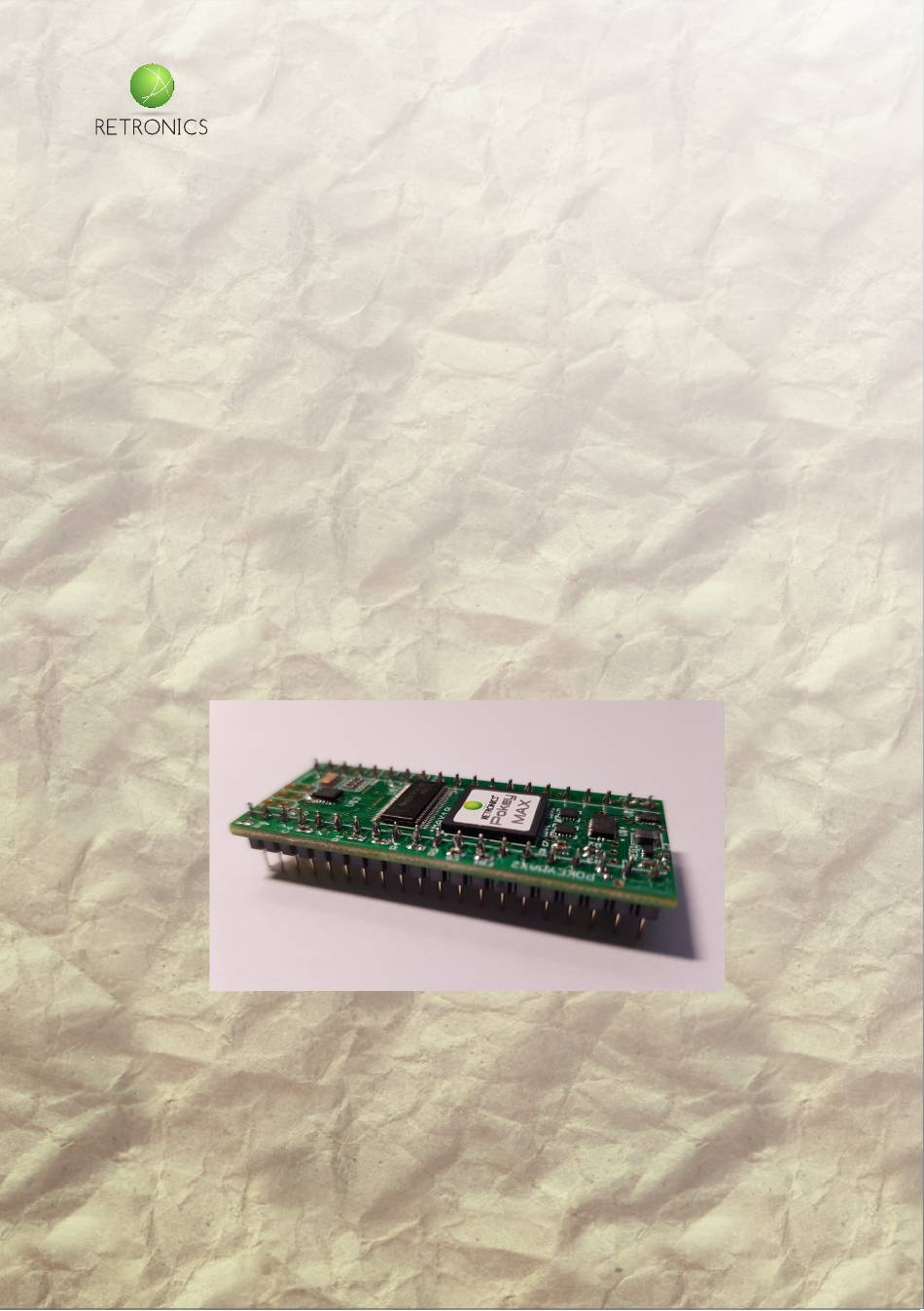

Pokey
MAX
USER GUIDE
1.0
v.
© 2020 Mark Watson, Retronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pokey MAX and is the answer not in the manual?

Questions and answers

Summary of Contents for Retronics Pokey MAX

  • Page 1 ® Pokey USER GUIDE © 2020 Mark Watson, Retronics...
  • Page 2 ank you for purchasing PokeyMAX device! It is a full 100% compatible replacement for POKEY chip by Atari, used in many models of 8-bit Atari computers and arcade machines. It is available in various versions, described in next sections of this manual. All of them have implemented all functions of Pokey chip, i.e.
  • Page 3 When you have empty socket, please carefully slot PokeyMAX into it (watch out the direction - pin 1 must be in the correct location!). When you are sure, that chip is installed correctly, you may turn on your Atari. Once powered on, please check keyboard, audio, SIO and paddles work as usual.
  • Page 4 Stereo version with Covox wiring diagram: JTAG R Audio 5V (for 1088XEL only - connect to pin 37 in second POKEY socket) L Audio 1V 10µF To Audio Amplifier R Audio 1V 10µF (connect to pin 13 of 6502C CPU - C014806/6502I chip) (connect to pin 16 of 6502C CPU - C014806/6502I chip) GTIA IN/BELL (connect to pin 15 of GTIA - C014889 chip)
  • Page 5 Quad version with Covox wiring diagram: JTAG R Audio 5V (for 1088XEL only - connect to pin 37 in second POKEY socket) L Audio 1V 10µF To Audio Amplifier R Audio 1V 10µF (connect to pin 13 of 6502C CPU - C014806/6502I chip) (connect to pin 14 of 6502C CPU - C014806/6502I chip) (connect to pin 16 of 6502C CPU - C014806/6502I chip) S1 - OFF: mono, ON: stereo/quad...
