Model 4709CDI Large Wood Arc Hammock Stand
(A)
Weight Limit 450 lbs.
(F)
(E)
(B)
Note: Wrenches for assembly are
provided, however, if using your own
tools, a 17mm metric, or 11/16" SAE
deep socket will be required.

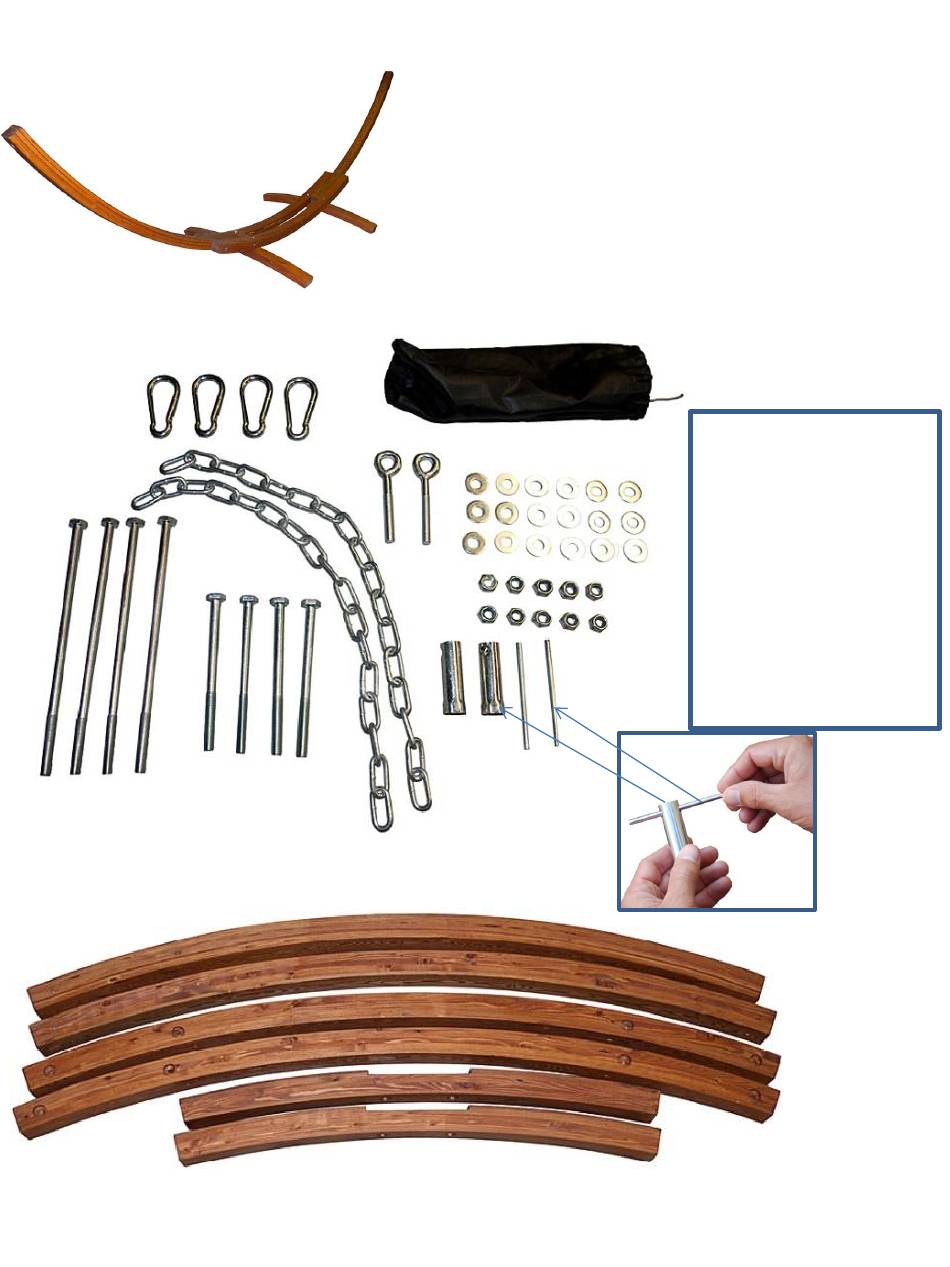

Parts
(H)
(I)
(G)
Congratulations on purchasing Model 4709C
wood arc hammock stand to be used with
most 13 ft 2-pt hammocks. We hope it helps
provide hours of relaxation. If you have
questions regarding this product, please
contact customer service at (800) 295-6758
(A) 9.5" Bolts (x 4)
(B) 5.5" Bolts (x 4)
(C) Washers (x 18)
(D) Lock Nuts (x 8)
(C)
(E) Eye bolts (x 2)
(F) Carabiner Clip (x 4)
(G) Chain (x 2)
(H) Wrench (x 2)
(D)
(I) Wrench handle (x 2)
(J) Upright supports (x 2)
(K) Base Supports (x 2)
(L) Legs (x 2)
2 piece
wrench
(L)
(J)
(K)
Advertisement
Table of Contents
Summary of Contents for Algoma 4709CDI
- Page 1 Model 4709CDI Large Wood Arc Hammock Stand Congratulations on purchasing Model 4709C Weight Limit 450 lbs. wood arc hammock stand to be used with most 13 ft 2-pt hammocks. We hope it helps provide hours of relaxation. If you have...
- Page 2 Step 1: Place wood legs (L) on a hard level surface approximately 48 inches apart (as in figure 1) with the beveled cutout facing up, and towards each other. Figure 1 Step 2: Place one wood base support (K) onto wood legs (as in Figure 2).
- Page 3 Figure 5 Step 4: Place eye bolt (E) into the hole at the top of the upright support (as shown in Figure 5) Secure using a washer (C) and a lock nut (D) tightening with the 2 piece wrenches supplied. Figure 6 Step 5: Clip a carabiner clip (F) onto each end of the chains (G).
