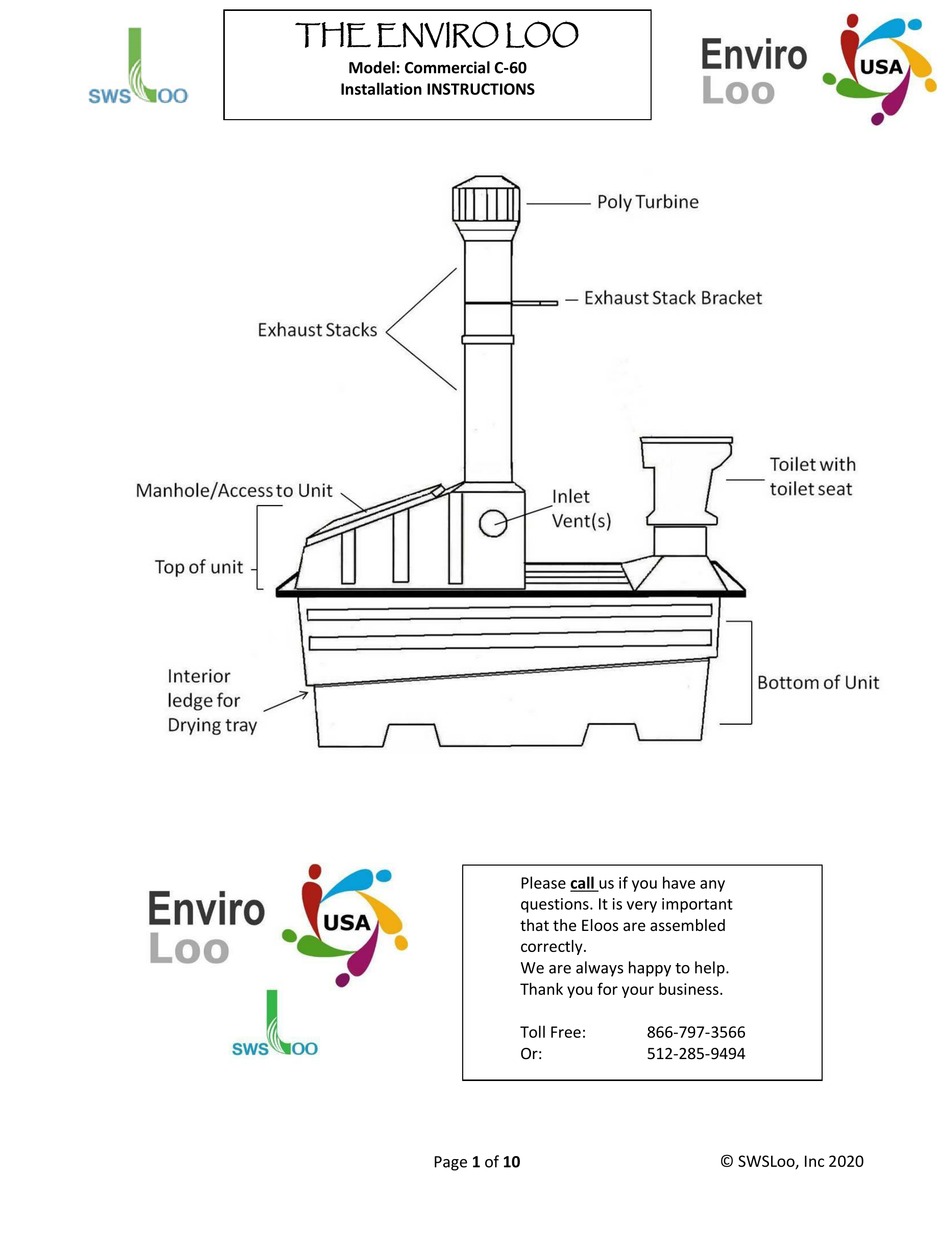

THE ENVIRO LOO
Model: Commercial C-60
Installation INSTRUCTIONS
Page 1 of 10
Please call us if you have any
questions. It is very important
that the Eloos are assembled
correctly.
We are always happy to help.
Thank you for your business.
Toll Free:
866-797-3566
Or:
512-285-9494
© SWSLoo, Inc 2020
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Need help?
Do you have a question about the Enviro Loo C-60 and is the answer not in the manual?
Ask a question
Questions and answers
Summary of Contents for SWSLoo Enviro Loo C-60
Page 1
Please call us if you have any questions. It is very important that the Eloos are assembled correctly. We are always happy to help. Thank you for your business. Toll Free: 866-797-3566 512-285-9494 © SWSLoo, Inc 2020 Page 1 of 10...
Page 2
However, if you’ve already assembled the unit, or it was shipped assembled, please follow the directions to insert the Inlet Vents and Inlet Vent Pipes prior to actual installation. Page 2 of 10 © SWSLoo, Inc 2020...
Page 3
Insert the Inlet Vents into the opening of the unit, from the outside, then reaching through the manhole/access to unit, bring the inlet vent pipe upwards, attaching the white fitting over the back of the inlet vent. Page 3 of 10 © SWSLoo, Inc 2020...
Page 4
PVC pipe glue or a #8 Self-tapping screw. **Make sure fittings are fully seated.** A.) Underground Installation – Single C60 **See Urinal Instructions if you are adding a Urinal to your Installation.** Page 4 of 10 © SWSLoo, Inc 2020...
Page 5
***The unit MUST to be anchored to avoid floatation.*** Attach anchors level and evenly on either side of the bottom of the unit. (Position rear anchor cable between unit and inverted bolts.) When backfilling, ensure anchors remain in position. Page 5 of 10 © SWSLoo, Inc 2020...
Page 6
Clay or high ground water area, concrete footings can be poured into the bottom of the pit leaving exposed rebar or adding hooks for securing tie downs for the anchor cables/ropes. Page 6 of 10 © SWSLoo, Inc 2020...
Page 7
** Complete backfill of pit as instructed in Single, C60 Installation (above) *** C.) Above ground Installation Please call SWSLoo, Inc 866-797-3566 Or 512-285-9494 Additionally, you can email: George@swsloo.com...
Page 8
Building Slab For ELoo Surround **Completed structure MUST have a vent to the outside** Page 8 of 10 © SWSLoo, Inc 2020...
Page 9
Installation of Remaining Components: Toilet: Exhaust Stacks: Page 9 of 10 © SWSLoo, Inc 2020...
Page 10
Drying Bag and Rake: Auxiliary Items available for purchase from SWSLoo, Inc (including an auxiliary fan to assist with air flow and a urinal). Page 10 of 10 © SWSLoo, Inc 2020...
