MANUAL
Kiosk Printer EDITION G
Version: English
Printer Mechanism made by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDITION G and is the answer not in the manual?

Questions and answers

Summary of Contents for DREYER SYSTEM EDITION G

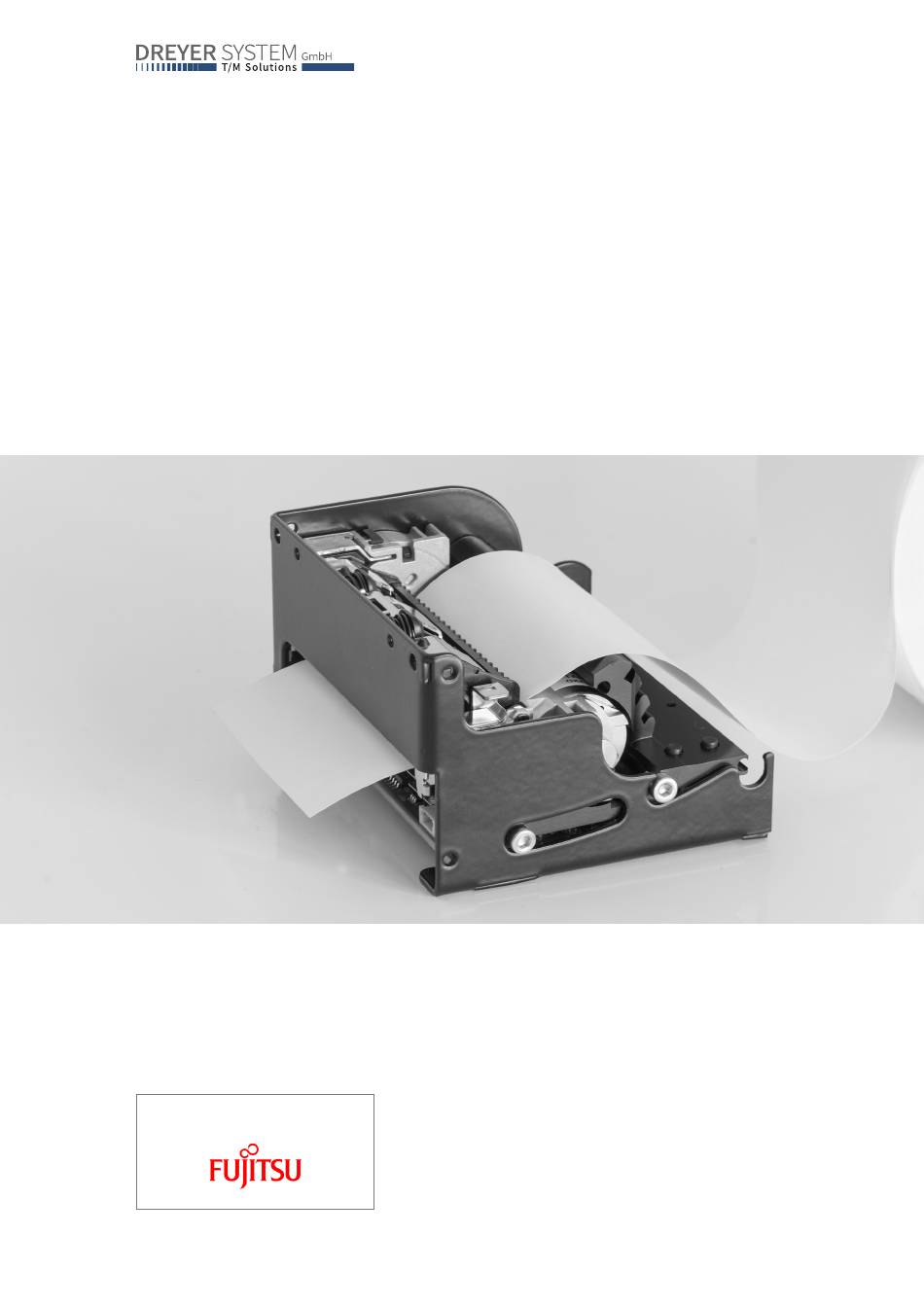

  • Page 1 MANUAL Kiosk Printer EDITION G Version: English Printer Mechanism made by...

  • Page 2: Revision Index

    Manual EDITION G Revision Index Revision Index Revision Description Name Date First Issue 2018-01-24 Page: 2...

  • Page 3: Table Of Contents

    Manual EDITION G Table of Contents Table of Contents Revision Index ................................2 Recommendations .................6 Power requirement ...........................7 Paper quality .............................7 Maintenance ..............................7 USB Version ....................8 Pin Assignment and Settings ..............9 Back ...................................9 Front ................................10 Top ..................................11 Technical Data ..................12 Technical Data for Printer Mechanism ......................12...
  • Page 4 Manual EDITION G Table of Contents Table of Contents Additional Settings ................20 Recalibration Mode ............................20 Formfeed to Blackmark Mode ........................20 Autofeed Mode ...............................20 Blackmarks ................... 21 Control Commands (Overview) ............22 Text Attributes ..............................22 Graphic ................................23 General Commands ..........................24-25 Special Commands ..........................26-27 Parameter Settings ...........................
  • Page 5 Manual EDITION G Table of Contents Table of Contents Appendix B ...................52 Character Set CP 437 ............................52 Character Set ISO-8859 (all variations) ......................52 Character Set ISO-8859-1 ..........................53 Character Set ISO-8859-2 ..........................53 Character Set ISO-8859-5 ..........................53 Character Set ISO-8859-7 ..........................54 Character Set ISO-8859-8 ..........................54 Character Set ISO-8859-9 ..........................54...

  • Page 6: Recommendations

    Manual EDITION G Recommendations Recommendations General: • To prevent voltage damage, the power supply cable may only be removed when the power is off • While working on the Printer: - make sure that ESD regulations are respected - that only trained personnel has access to •...

  • Page 7: Power Requirement

    Manual EDITION G Recommendations Power requirement Power consumption for thermal printers is fairly high. To ensure good printing result it is recommended to use a power supply that can provide at least 7.5 A peak (@26.4V). Recommendations are based on meas- urements at the worst case condition of 26.4V supply voltage while printing a blackline.

  • Page 8: Usb Version

    Manual EDITION G Recommendations USB Version WHQL-certified USB drivers as well as further drivers for the usual operating systems are available on re- quest or can be found at the webpage of the USB-controller's manufacturer: http://www.ftdichip.com/FTDrivers.htm After the installation of the driver it is possible to communicate with the printer either over a virtual COM- port (the set Baudrate does not matter) or via a software API, which is realized as a DLL and available for C/ C++, C#, VB and Delphi.

  • Page 9: Pin Assignment And Settings

    Manual EDITION G Pin Assignment and Settings Pin Assignment and Settings (Back) Pin 1 Pin 1 Pin 1 ST 6 ST 9 ST 10 ST 1 ST 6 ST 1 Connector for Paper Near End USB I/F Sensor (Option) Connector/Mate Connector...

  • Page 10: Front

    Manual EDITION G Pin Assignment and Settings Pin Assignment and Settings (Front) Pin 1 Pin 1 Pin 1 ST 2 ST 4 ST 7 ST 3 ST 2 ST 3 Connector for Presenter Motor Connector for Presenter Sensor (Option) (Option)

  • Page 11: Top

    Manual EDITION G Pin Assignment and Settings Pin Assignment and Settings (Top) Paper Feed Button As long as the paper feed button is pressed, a paper feed is executed. Paper Cut Button After pressing the paper cut button a paper cut will be executed.

  • Page 12: Technical Data

    Manual EDITION G Technical Data Technical Data for Printer Mechanism (Extract from Specification Document: A1NA02299-0003RS_02) EDITION 60G EDITION 80G Paper Width 60 mm 80 mm (Tolerance) (+0.0 mm; -1.0 mm) (+0.0 mm; -1.0 mm) Printing Width 54 mm 72 mm...

  • Page 13: Technical Data Controller Board

    Manual EDITION G Technical Data Technical Data Controller Board RS232 und USB Dimensions 65.0 mm x 80.0 mm Supply Voltage 24 VDC (+/- 10%) Character Sets CP 437 ISO-8859-1 (Latin 1, Western European) ISO-8859-2 (Latin 2, Central European) ISO-8859-5 (Cyrillic)

  • Page 14: Settings

    Manual EDITION G Settings Standard Settings (after Power Up – after RESET – in case of Error Mode A: after an Error Occured) Character Size 16 x 24 dots Character Set ISO-8859-1 Line Feed Character Height plus 5 dotlines Additional Horizontal...

  • Page 15: Parameter Settings

    Manual EDITION G Settings Parameter Settings This controller allows to adjust the settings by means of software commands. The settings are saved in the non-volatile memory and are also available after a reset or power-up. This includes the interface parameters, the error mode, external sensors and other features.

  • Page 16: Error Modes

    Manual EDITION G Error modes Error modes There are three error modes (MODE A, MODE C, MODE R). In Error Mode A: the printer status is only sent on request. In Error Mode C: response characters are sent anytime when there is a status change.
  • Page 17 Manual EDITION G Error Modes Byte 3: Flags Meaning when Bit is set hit Blackmark detected Paper Near-End warning Communikation error PE-sensor status External NE-sensor status Not used External PJ-Sensor status Always '0' Command FS will be executed after all data left over in the buffer were processed. The Command FS will be lost in case of an error since the input buffer will be reset when an error occurs.

  • Page 18: Error Mode C And R

    Manual EDITION G Error Modes Error Mode C and R The printer is sending status information (single characters) to the host via the interface. Error messages as follows: Character Code Description Paper End Motor temperature Head temperature exceeding 70°C or motortemperature exceeding 80 °C Head temperature below -10°C...

  • Page 19: External Sensors

    Manual EDITION G External Sensors External Sensors The printer controller has three connections for external sensors. Near End Sensor Usually, the near-end state can be detected by monitoring blackmarks. If a blackmark can't be used an additional sensor can be installed to the paper roll holder to detect the near end state.

  • Page 20: Additional Settings

    Manual EDITION G Additional Settings Additional Settings Recalibration Mode If paper is held in the printer for an extended period of time, the paper can be stuck to the thermal head and lead to a faulty printout. Such adhesive effect strongly depends on environmental conditions like hu- midity.

  • Page 21: Blackmarks

    Manual EDITION G Blackmarks Blackmarks Thresholds for the blackmark recognition are at 1 mm, 5 mm and 10 mm. The following dimensions are recommended: Normal blackmark: 2 mm to 4 mm high Near-End blackmark: 6 mm to 9 mm high...

  • Page 22: Control Commands (Overview)

    Manual EDITION G Control Commands (Overview) Control Commands (Overview) Text Attributes Description ASCII (HEXA) Further Details DC4 (20) Double width printing off ESC DC4 (27 20) SO (14) Double width printing on ESC SO (27 14) n = 1 Double height on/off...

  • Page 23: Graphic

    Manual EDITION G Control Commands (Overview) Graphic Description ASCII (HEXA) Further Details Set Character Width ESC w n (27 119 n) 1 ≤ n ≤ 4 (up to 4 times) Set Character Height ESC h n (27 104 n) 1 ≤ n ≤ 4...

  • Page 24: General Commands

    Manual EDITION G Control Commands (Overview) General Commands Description ASCII (HEXA) Further Details ESC @ Initalize Printer Please also refer to page 14 – Standard Settings (27 64) Layout Adjustments ESC l n 0 ≤ n ≤ 49 (60G) Set left margin to n * 8 Dots (27 108 n) 0 ≤...
  • Page 25 Manual EDITION G Control Commands (Overview) General Commands (continue) Description ASCII (HEXA) Further Details Nonrecurring line feed of ESC B n 0 ≤ n ≤ 127 character height + n Dotlines (27 66 n) 'Carriage return' CR (13) Set character spacing to ESC SPACE n 0 ≤...

  • Page 26: Special Commands

    Manual EDITION G Control Commands (Overview) Special Commands Description ASCII (HEXA) Further Details Blackmark maximum dotlines (LSB) DC2 M l m Form Feed to the next (18 77 l m) maximum dotlines (MSB) Blackmark Query of internal counter US N (31 78)
  • Page 27 Manual EDITION G Control Commands (Overview) Special Commands (continue) Description ASCII (HEXA) Further Details Paper Feed Set Paper Feed to max. 40 US 4 (3152) mm/s Paper Feed Set Paper Feed to max. 50 US 5 (31 53) mm/s Paper Feed Set Paper Feed to max.

  • Page 28: Parameter Settings

    Manual EDITION G Control Commands (Overview) Parameter Settings Description ASCII (HEXA) Further Details n = 0 Autofeed Mode off n = 1 Autofeed length 40 mm Set Autofeed Mode US ! A n (31 33 65 n) n = 2...
  • Page 29 Manual EDITION G Control Commands (Overview) Parameter Settings (continue) Description ASCII (HEXA) Further Details n = 0 Deactivates Recalibration Mode Recalibration Mode on/off US ! R n (31 33 82 n) n = 1 Activates Recalibration Mode Print Test Page...

  • Page 30: Barcode And Other Printing Options

    Manual EDITION G Control Commands (Overview) Barcode and other Printing Options Description ASCII (HEXA) Further Details Barcode GS h n (29 104 n) 1 ≤ n ≤ 255 Set Barcode Height Barcode GS w n (29 119 n) 2 ≤ n ≤ 4 (module ratio FIX 3:1)

  • Page 31: Control Command Sequences

    Manual EDITION G Control Command Sequences Control Command Sequences Text Attributes Double Width Printing Off ESC DC 4 (27 20) bzw. DC 4 (20) Deactivates double width printing. Double Width Printing On ESC SO (27 14) bzw. SO (14) Activates double width printing.

  • Page 32: Text Attributes

    Manual EDITION G Control Command Sequences Text Attributes (continue) Upside Down Printing Mode On/Off ESC { n (27 123 n) Activates or Deactivates the upside down printing mode, i.e. the text line will be printed in a 180° turn. The following limitations needed...

  • Page 33: Graphic

    Manual EDITION G Control Command Sequences Graphic Print Graphic Dot-lines in Full Resolution ESC * l m data (27 42 l m data) The next l+(256*m) dotlines will be printed as graphic with a reso- lution of 8 dots/mm (for further details please refer to chapter 1).
  • Page 34 Manual EDITION G Control Command Sequences Graphic (continue) Print Graphic Dot-lines in Full Resolution (RLE US * l m rledata (31 42 l m rledata) Data) The next l+(256*m) dotlines will be printed as graphic with a reso- lution of 8 dots/mm (for further details please refer to chapter 1).

  • Page 35: General Commands

    Manual EDITION G Control Command Sequences General Commands Initialize Printer ESC @ (27 64) Resets the printer settings to their default values. For further detail please refer to page 14. Set Left Margin to n * 8 Dots ESC l n (27 108 n) Sets the left margin to n*8 dots (text data only).
  • Page 36 Manual EDITION G Control Command Sequences General Commands (continue) Set Nonrecurring Back Feed by n Dotlines ESC R n (27 82 n) Initialize the printout of the line. Afterwards the paper will be moved backwards by n dotlines. The printing position within the column remains unchanged.
  • Page 37 Manual EDITION G Control Command Sequences General Commands (continue) 'Carriage Return' CR (13) Moves the printing position to the left margin. No printout will be excecuted. Set Additional Character Space ESC SPACE n (27 32 n) Sets the number of dots which are added to the right side of a character.

  • Page 38: Special Commands

    Manual EDITION G Control Command Sequences Special Commands Form Feed to the Next Blackmark DC2 M l m (18 77 l m) Tries to move the paper onto the next blackmark. The form feed will be terminated after l+256*m dotlines. If the blackmark was success- fully detected, a corresponding flag is set in the status byte (Error Mode A) or a status character is send (Error Mode C or R).
  • Page 39 Manual EDITION G Control Command Sequences Special Commands (continue) Initialize Printer (Total Reset) RS (30) Resets the printer and the paper cutter to its default settings.Since this will initiate a hardware reset it is required to wait at least for 0,2 sec.
  • Page 40 Manual EDITION G Control Command Sequences Special Commands (continue) Set Printing Density US S n (31 83 n) Adjusts the density in order to save energy or to adjust to paper properties. FS (Error Mode A only) FS (28) With this command the status of printer is requested. As a reply 3 bytes will be returned.
  • Page 41 Manual EDITION G Control Command Sequences Special Commands (continue) Query for Version ESC ESC V (31 86 bzw. 27 27 86) Enables the query of the soft- and hardware version of the controller board. Reply as follows: 'h' <hardware identification> 'v' <software version> 'd' <date> 'c' <customer identification>...

  • Page 42: Parameter Settings

    Manual EDITION G Control Command Sequences Parameter Settings Set Autofeed Mode US ! A n (31 33 65 n) With this command the length of the automatic paper feed while paper insertion can be configured. The setting is stored in the non- volatile memory and remains active even after a restart.
  • Page 43 Manual EDITION G Control Command Sequences Parameter Settings (continue) Paper-Jam Sensor Mode On/Off US ! J n (31 33 74 n) This command activates an external Paper-Jam sensor. The setting also remains active after a restart. If a ticket is recognized in error modes C or R, a 'j' (106) is sent back, after the ticket is removed, an 'x' (120).
  • Page 44 Manual EDITION G Control Command Sequences Parameter Settings (continue) Xon/Xoff Protocol On/Off US ! X n (31 33 88 n) With this command, the Xon / Xoff flow control can be activated in addition to the RTS / CTS handshake. The setting is retained even after a restart.

  • Page 45: Barcodes And Other Printing Options

    Manual EDITION G Control Command Sequences Barcodes and other Printing Options Set Barcode Height GS h n (29 104 n) This command sets the height of the barcode in dotlines. Default setting is n = 80 (10 mm). Set Barcode Width (Module Width) GS w n (29 119 n) With this command, the module width is set to a number of dots;...
  • Page 46 Manual EDITION G Control Command Sequences Barcodes and other Printing Options (continue) Print Barcode GS k n data NUL (29 107 n data 0) This command will print a barcode (barcode type is selected by argument n) which is horizontally centered if a left margin is not set.
  • Page 47 Manual EDITION G Control Command Sequences Barcodes and other Printing Options (continue) Code 128 Control Characters are: Control ASCII Decimal Character SHIFT 123 83 CODE A 123 65 CODE B 123 66 CODE C 123 67 FNC 1 123 49...
  • Page 48 Manual EDITION G Control Command Sequences Barcodes and other Printing Options (continue) Print Date in Capital Letters and in the Centre of GS D d m y (29 68 d m y) the Line The format of the transfered values will be printed as “dd.mm.yy”...

  • Page 49: Character Codes Of Code 128 - Printable Characters In Code A

    Manual EDITION G Appendix A Appendix A Character Codes of Code 128 – Printable Characters in Code A Transmitted Character Character Transmitted Code Character Transmitted Code Code & FNC1 123 49 < FNC2 123 50 FNC3 123 51 > FNC4...

  • Page 50: Character Codes Of Code 128 - Printable Characters In Code B

    Manual EDITION G Appendix A Character Codes of Code 128 – Printable Characters in Code B Transmitted Character Character Transmitted Code Character Transmitted Code Code " & 123 123 FNC1 123 49 FNC2 123 50 FNC3 123 51 FNC4 123 52...

  • Page 51: Character Codes Of Code 128 - Printable Characters In Code C

    Manual EDITION G Appendix A Character Codes of Code 128 – Printable Characters in Code C Transmitted Character Character Transmitted Code Character Transmitted Code Code FNC1 123 49 CODEA 123 65 CODEB 123 66 Page: 51...

  • Page 52: Character Set Cp 437

    Manual EDITION G Appendix B Appendix B Character Sets Page: 52...
  • Page 53 Manual EDITION G Appendix B Character Sets Page: 53...
  • Page 54 Manual EDITION G Appendix B Character Sets Page: 54...
  • Page 55 Manual EDITION G Appendix B Character Sets Page: 55...

  • Page 56: Run Length Encoding (Rle) - Sample Code

    Manual EDITION G Appendix C Appendix C Run Length Encoding (RLE) – Sample Code This programm compresses files according to a samlpe RLE RUN Length Encoding procedure #include <stdio.h> #include <stdlib.h> #include <string.h> unsigned char oldchar, count, x; FILE *fout, *fin;...
  • Page 57 Manual EDITION G Appendix C void encode_write(unsigned char z) if (z == oldchar) { // is it the same character again? count++; if (count > 63) { // countbyte allows only counting up to 63 x = 0xff; fputc(x, fout);...

  • Page 58: Creating Logos

    Manual EDITION G Appendix D Appendix D Creating Logos Logos can be created from BMP-files or PCX-files (both uncompressed; black- and white or 2-color image). The width of the image shouldn't be wider than the printing width of the printer.
  • Page 59 Manual EDITION G Appendix D Executing the command without specifying the file name of the logo, the memory area dedi- cated for logos will be cleared. Flash Logo(s) into Controller Memory – Direct Mode (status LED lights orange) To set the controller board into direct mode, shut down power, hold down both buttons simultaneously and turn on power.

  • Page 60: Instructions To Update Firmware And How To Create A Logo

    Manual EDITION G Appendix E Appendix E Instructions to Update Firmware and how to Create a Logo Update firmware – Standard Mode (status LED lights green) To execute a firmware update the controller specific flash software and firmware is required. Printer needs to be turned on and ready for printing.

  • Page 61: Technical Drawings

    Manual EDITION G Appendix F Appendix F Technical drawings View front/side View bottom Page: 61...

  • Page 62: Imprint

    Manual EDITION G Imprint Imprint DREYER SYSTEM GmbH Black-u. Decker Str. 17b D-65510 Idstein Germany Tel: +49-(0)6126-9575-416 E-Mail: sales@edition-printer.de Web: www.edition-printer.de 9001 9001 2015 2015 Page: 62...
